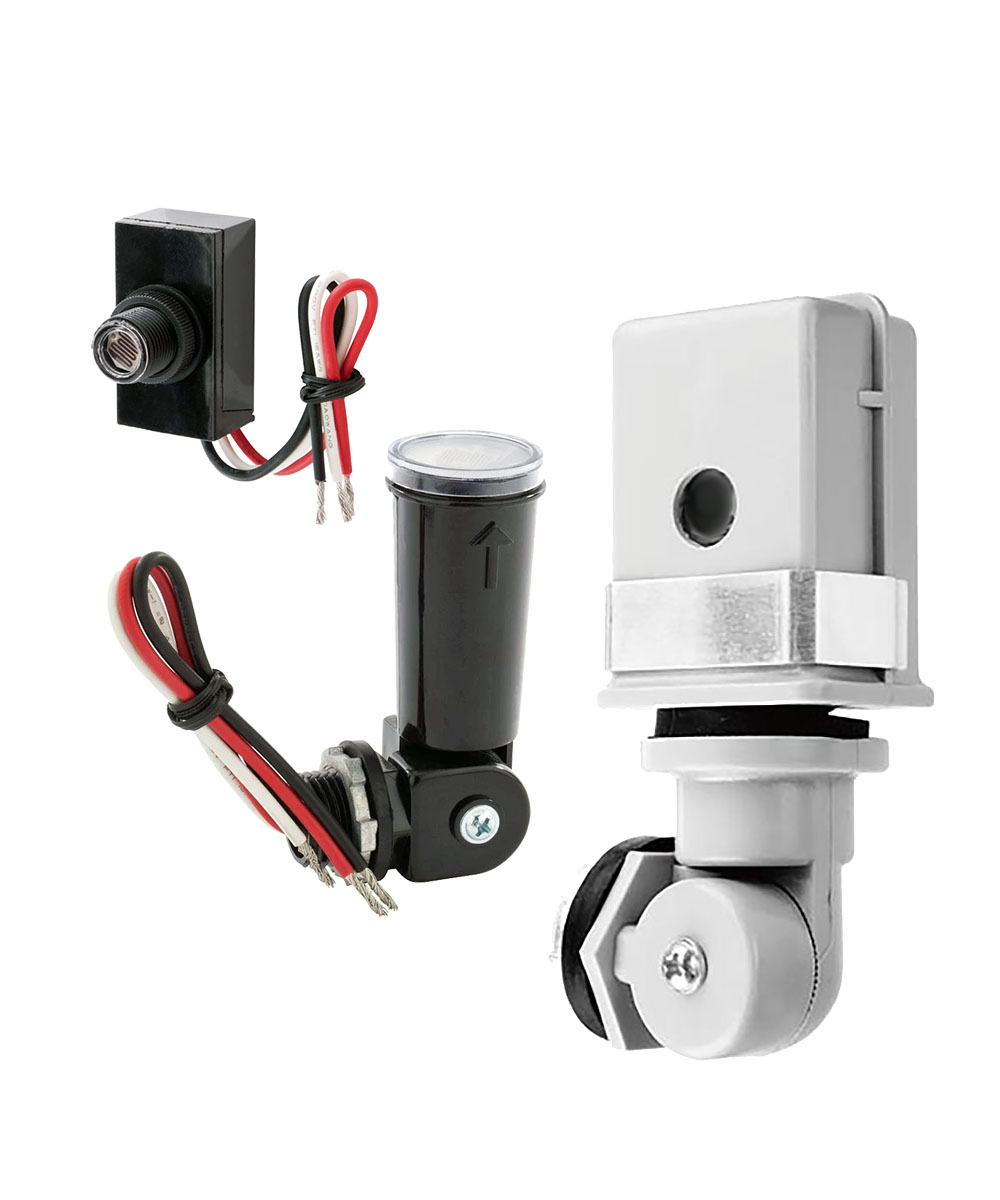

SE-PC series Electronic Photocontrol

PacLights advanced electronic SE-PC Series offers precise control and long service life. Fixed mount photocontrols provide an energy-saving solution for light fixtures designed with knockouts. The photocontrol can be permanently affixed onto wall packs, outdoor light posts or other exterior lighting installations. Swivel-type models come with ½”-14 NPSM threaded stem, allow the flexibility to adjust the photo eye based on the direction of the light.

– Electronic
– Multi-volt operation
– High-temperature components
– 5 years warranty

Price & Availability

Features SPECIFICATIONS Downloads

Electronic, Long Life, High Performance

Specs & Variations

Model	Style	Light Sensor	Load Rating	Relay	Surge Protection	IP Rating

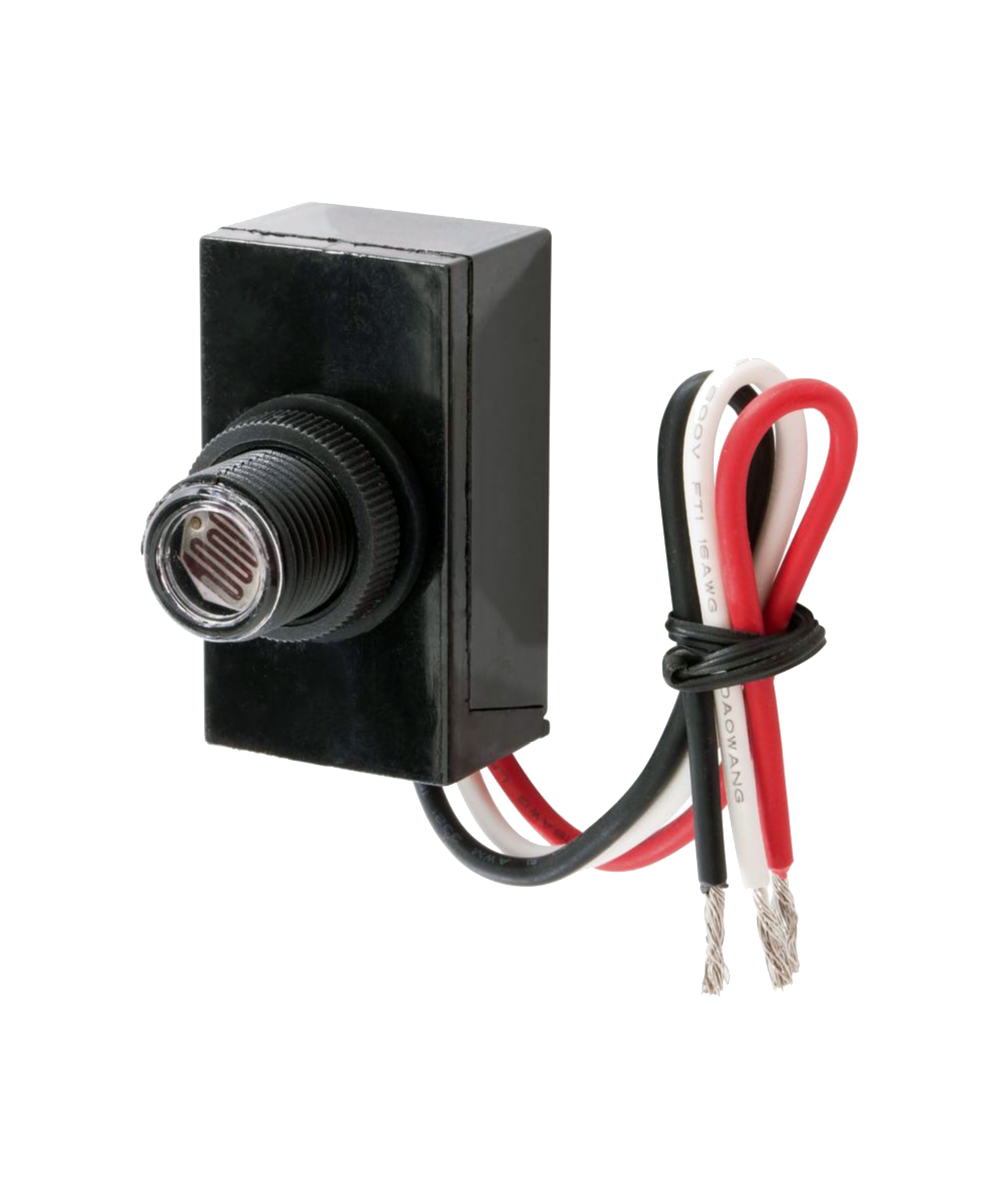

SE-PC-BT	Button Type	Cadmium Sulfide	850VA	5 Amp General Purpose Relay	-	Lens Rain-tight

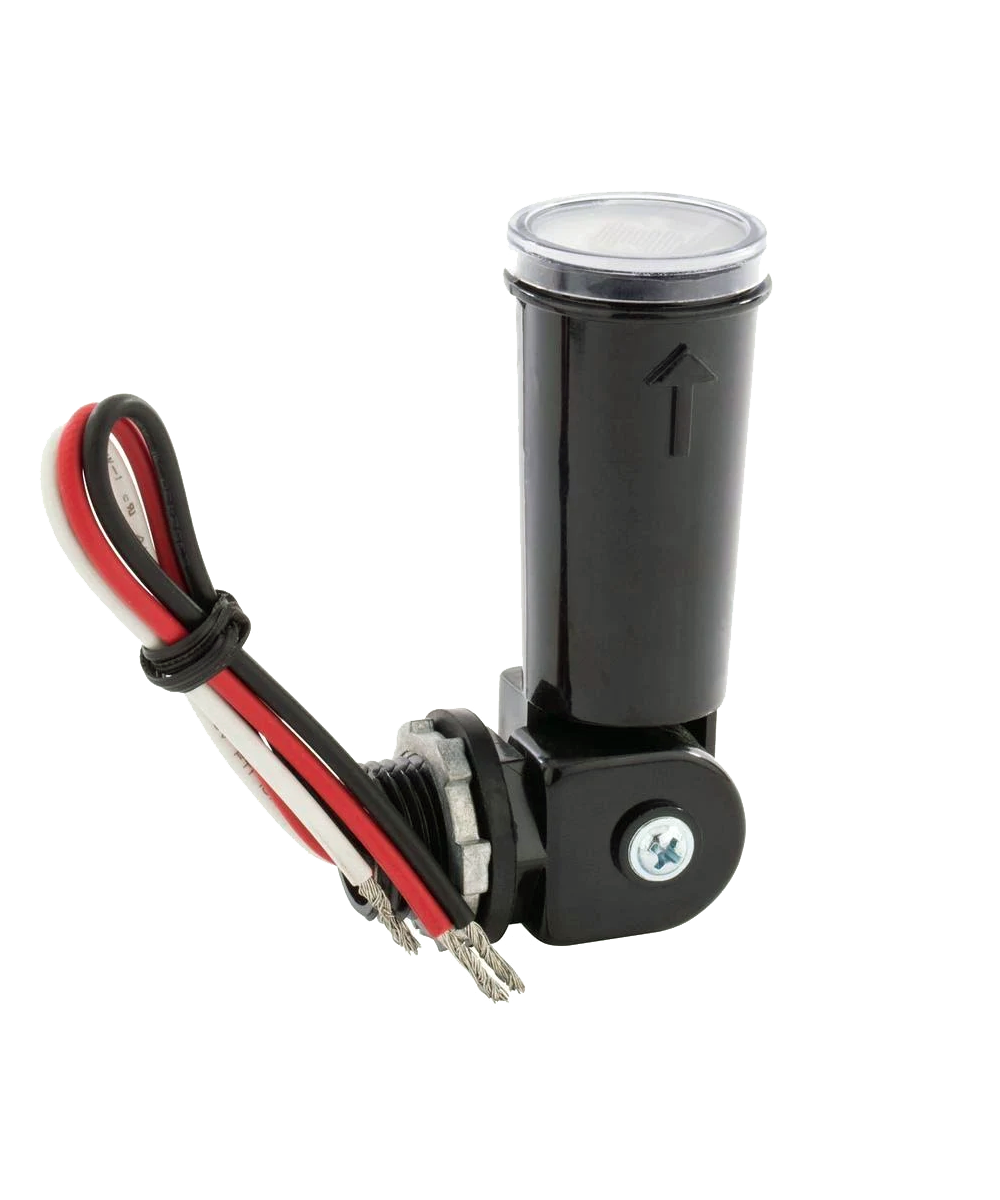

SE-PC-SW	Stem & Swivel	Cadmium Sulfide	850VA	5 Amp General Purpose Relay	-	IP 64

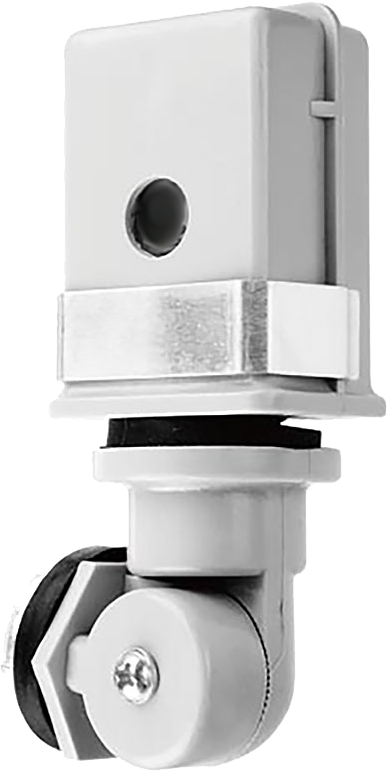

SE-PC-SP	Stem & Swivel	IR filtered Phototransistor	1200VA	8 Amp General Purpose Relay	5kA, 235 Joules MOV	IP 65

Build Your Control

Family	Model
SE-PC
	BT - Button
	SW - Stem & Swivel Top Lens
	SP - Stem & Swivel Side Lens, High Performance

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
