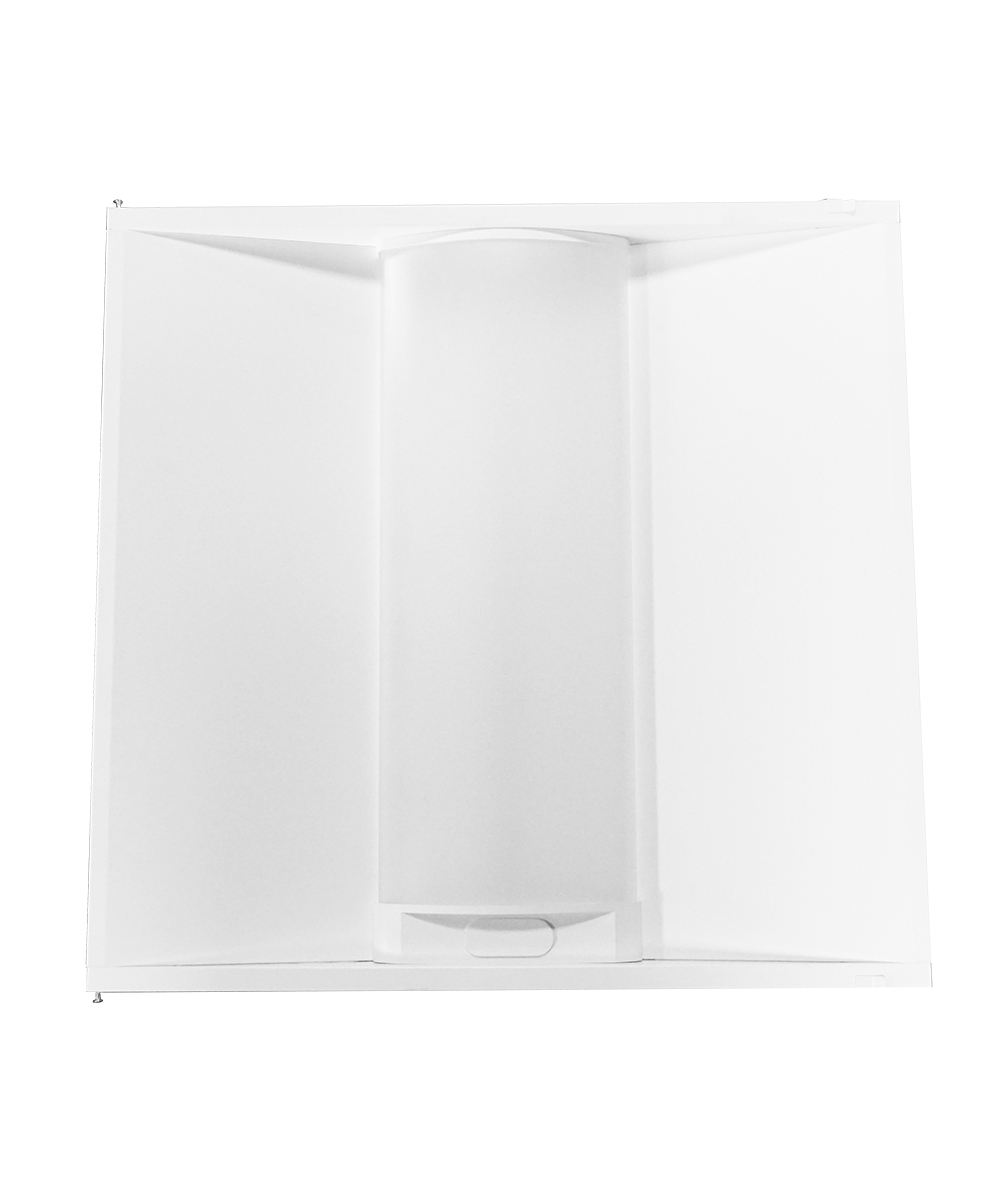

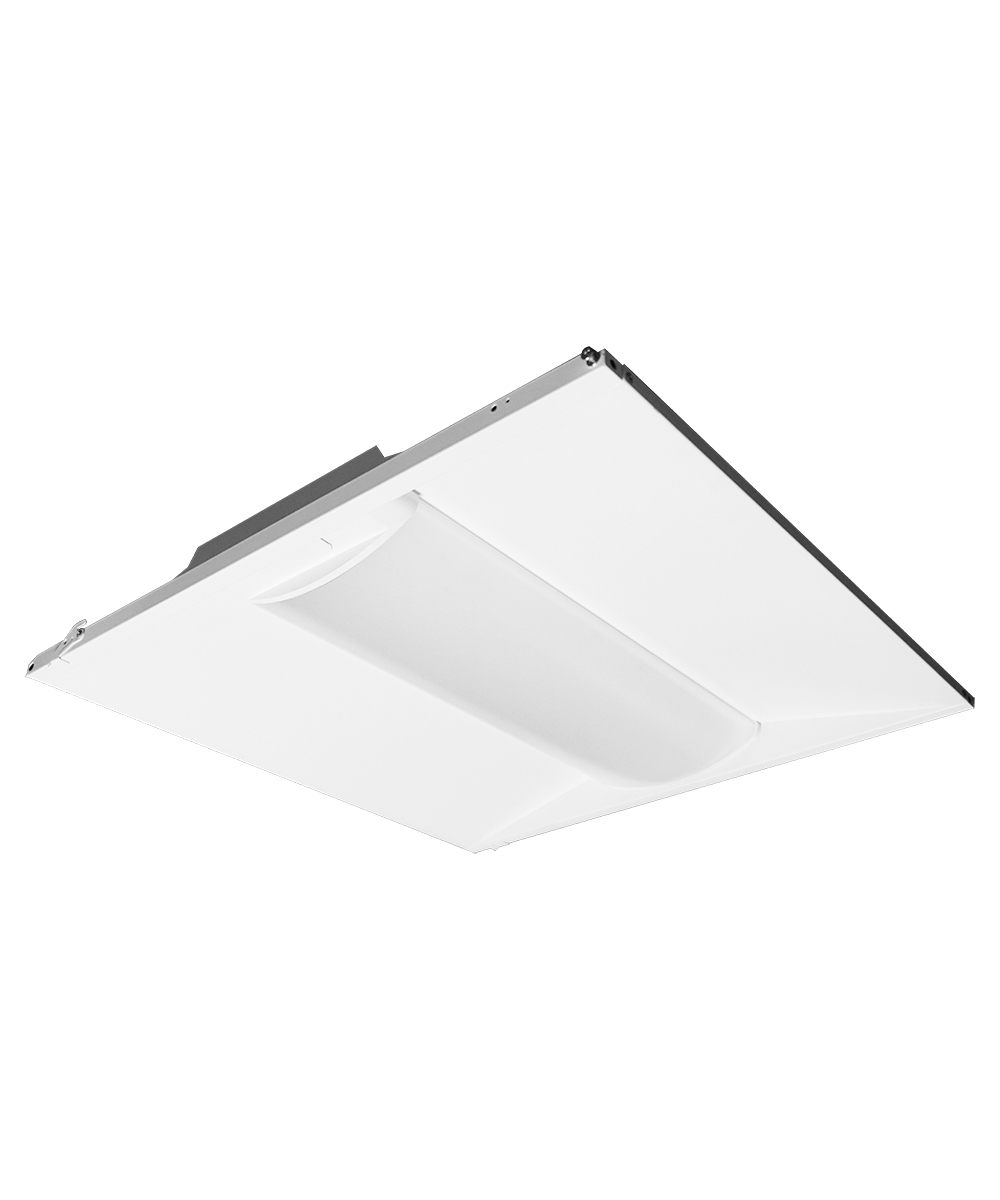

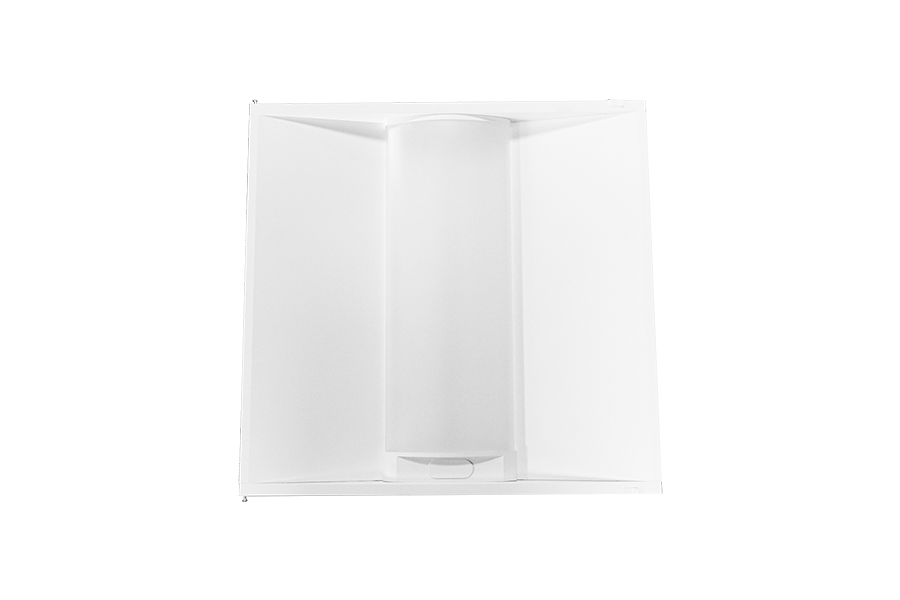

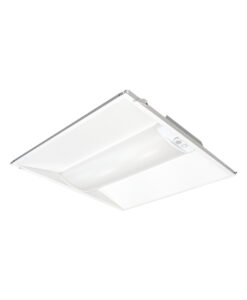

RKTN series Bluetooth NLC Enabled LED Retrofit Troffer

The RKTN series offers an innovative solution for upgrading existing fluorescent recessed troffers, such as 2×2, 2×4, and 1×4 sizes, by leveraging the current fixture housing. Its Bluetooth mesh networked control module, enables RKTN to be communicated with each other within the zone/network. RKTN can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group. Through the commissioning app, users adjust the color temperature from 3000K to 5000K CCT and fine-tune the light intensity to achieve desired wattage or lumen output with precision.

– Limited Warranty: 5 years
– Efficacy: up to 128 LPW
– Lumen Output: up to 5,760 L
– Wattage: Max 30W for 1×4′ models, Max 30W for 2×2′ models, or Max 45W for 2×4′ models.

UL Listed  DLC QPL Bluetooth Network Control Enabled

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate
Up to 5,760 lm
SKU: RKTN Categories: , , , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT and Lumen Tunable

Trim lumen/wattage output precisely by precentage, and select color temperature (3000-5000K) with the help of the free Keilton iOS/Android App.

Bluetooth Enabled

Bluetooth mesh networked control module integrated and Enabled. RKTN works out-of-box as part of a Keilton compatible networked lighting control (NLC) system. Reduces labor cost on wiring and installing external controls.

Optional Sensor

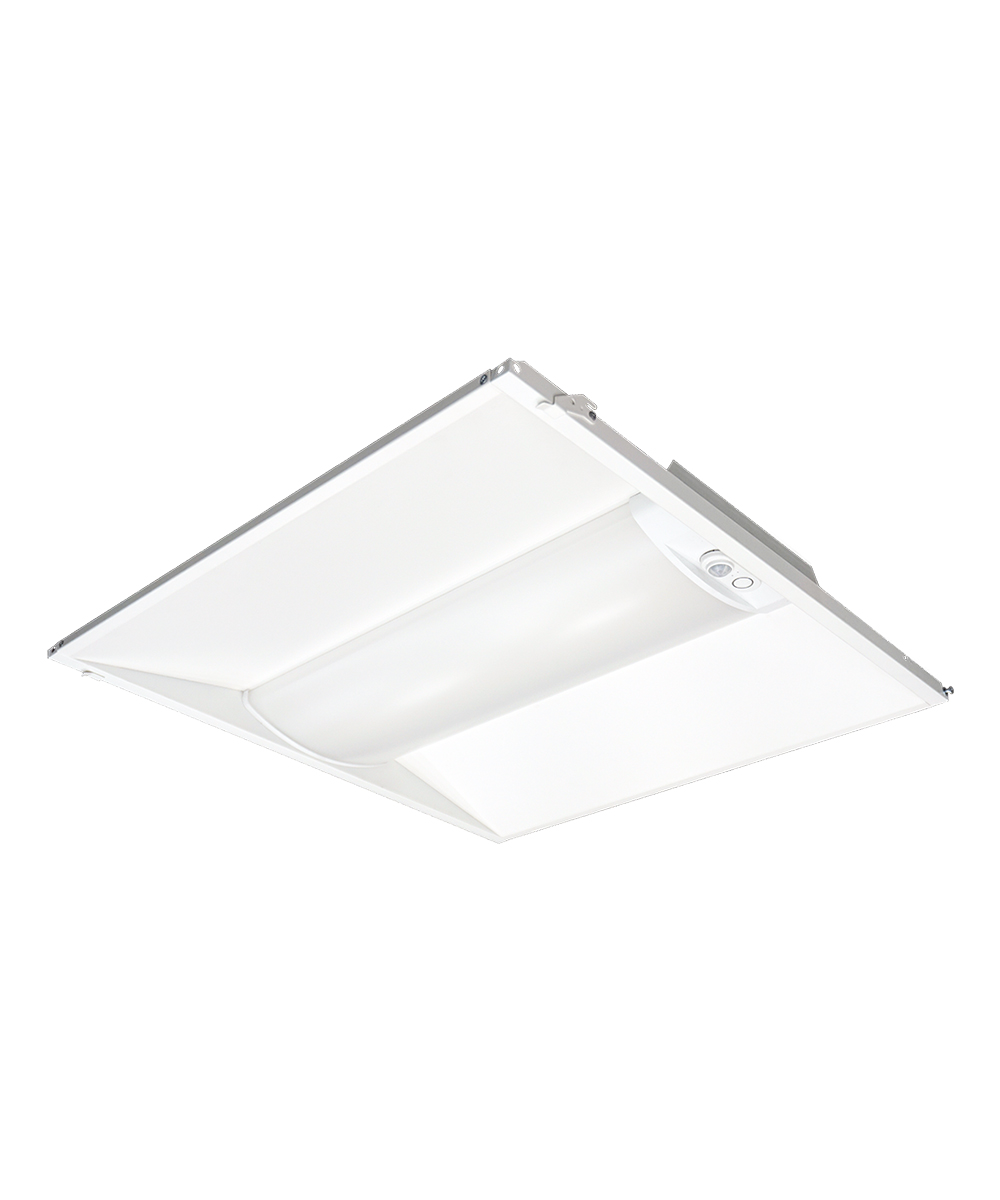

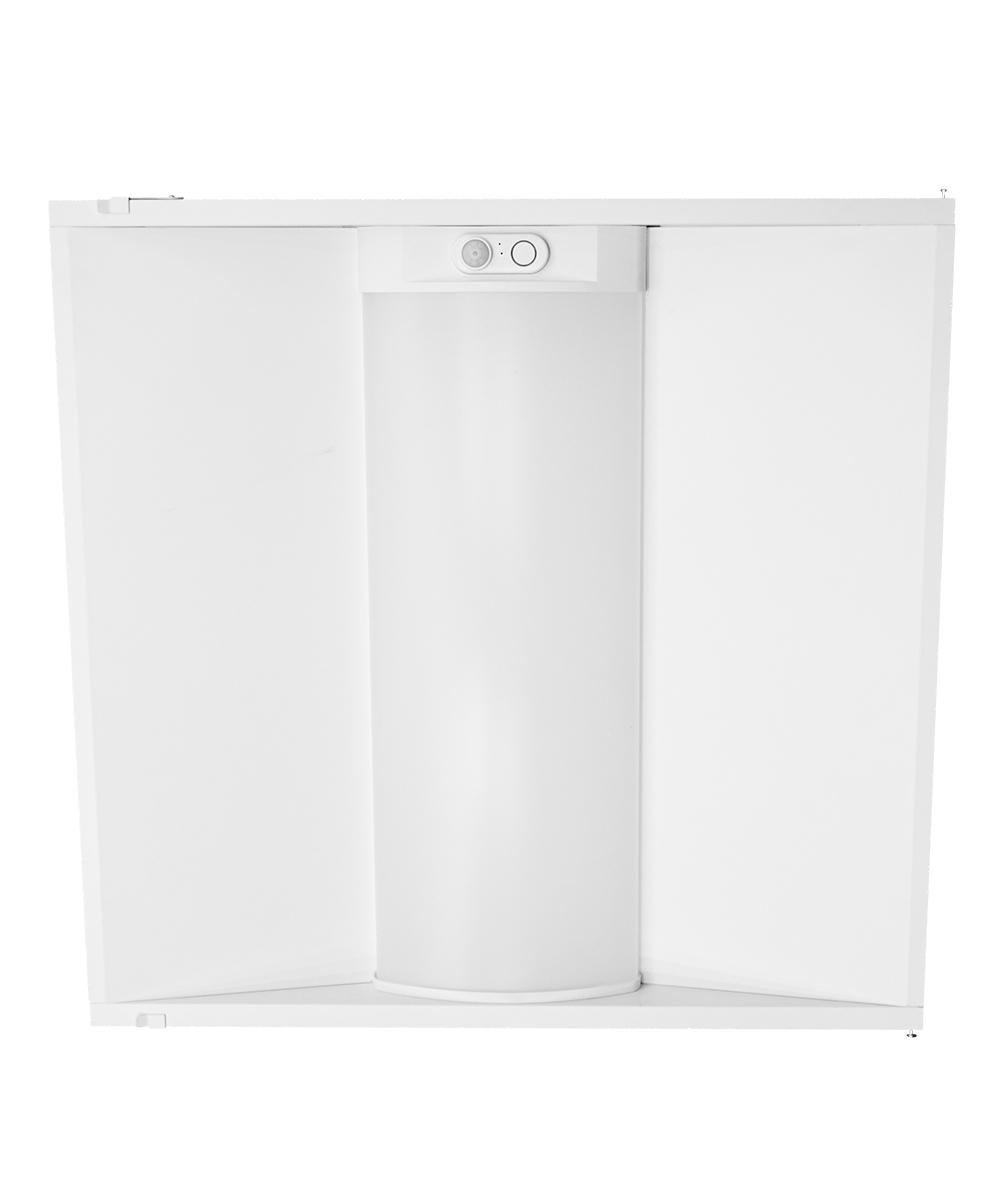

Optional PIR occupancy & daylight sensor can be installed to selected RKTN retrofit kits to be shared with the other member fixtures within the same bluetooth mesh wireless network.

NETWORKED LIGHTING CONTROL

ENABLED

Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.

LEARN MORE

5 minutes easy installation

STEP 1

Disconnect power, remove lens, tubes, ballast and cover of the original troffer

STEP 2

Insert and secure provided end plates, and if necessary, the side plates, between the original troffer and T-grid

STEP 3

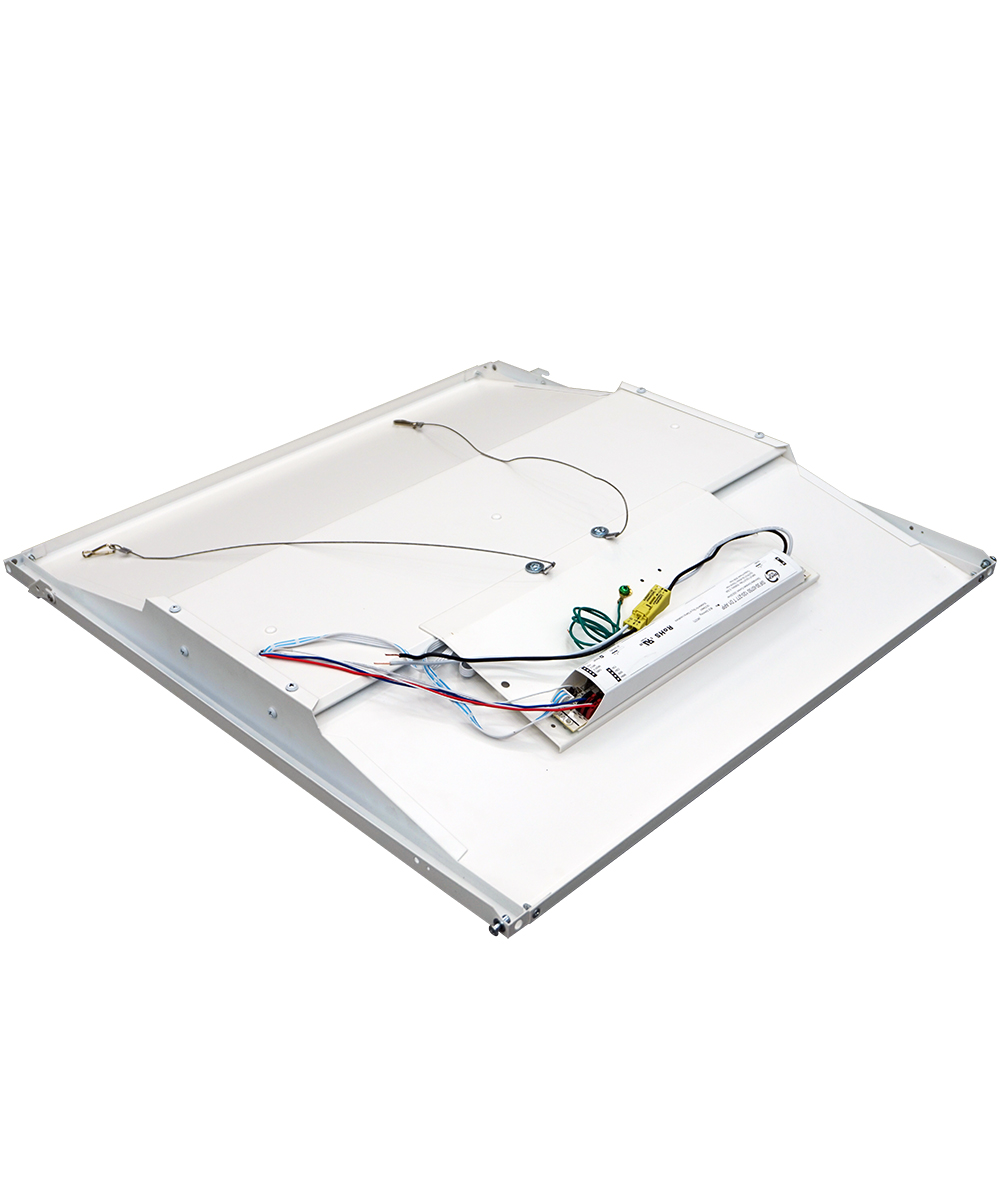

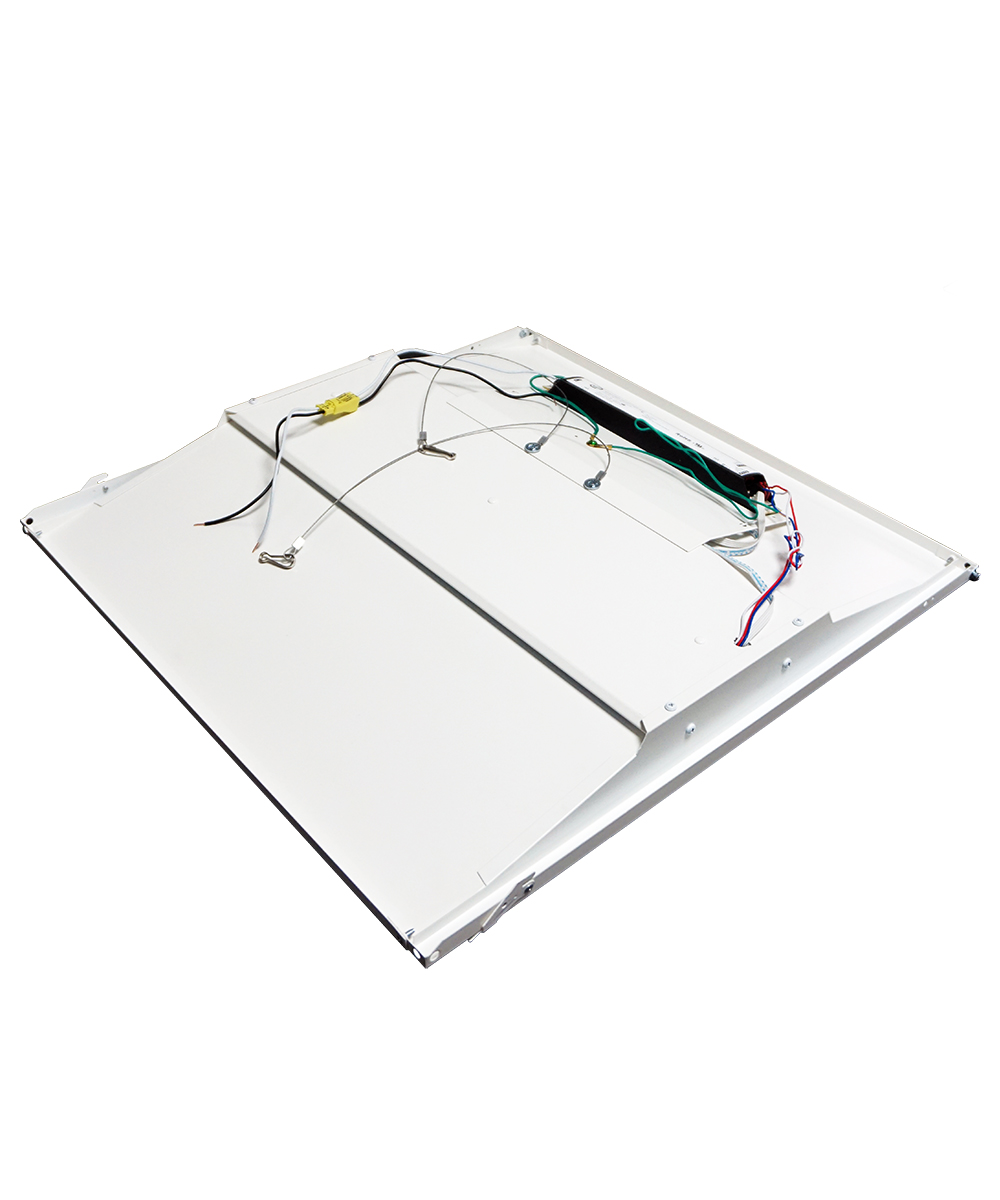

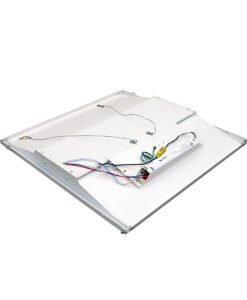

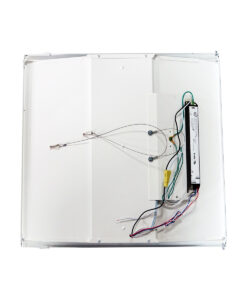

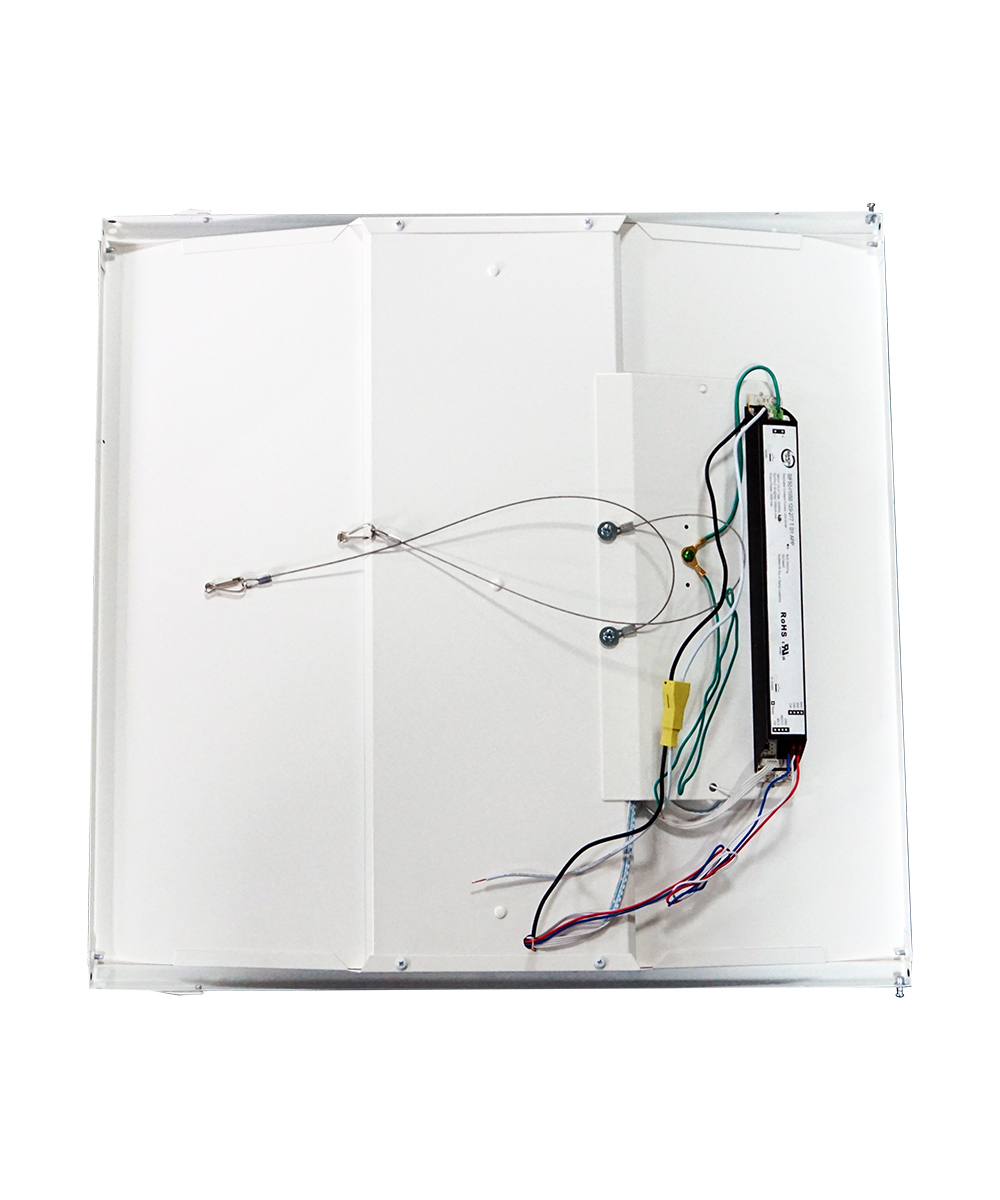

Hang the retrofit assembly door to the end plates installed in step 2, connect power to the retrofit kit

FINISH!

Close and secure the retrofit assembly door, remove protective film of the lens



Specs & Variations

RKTN - 24D45 Max 45W 2' x 4'
CCT Adjustable 3000K 3500K 4000K 5000K
Lumen Trimmable 5,625 lm 5,670 lm 5,715 lm 5,760 lm
RKTN - 22D30 Max 30W 2' x 2'
CCT Adjustable 3000K 3500K 4000K 5000K
Lumen Trimmable 3,750 lm 3,780 lm 3,810 lm 3,840 lm
RKTN - 14D30 Max 30W 1' x 4'
CCT Adjustable 3000K 3500K 4000K 5000K
Lumen Trimmable 3,750 lm 3,780 lm 3,810 lm 3,840 lm

* all models are lumen trimmable down to 50%, and 3000K-5000K CCT app-adjustable.



Build Your Light

Family Model Optional Function

RKTN
24D45 - 2ft x 4ft, Max 45w Trimmable, 3000-5000K CCT adjustable
EM - Emergency battery backup
22D30 - 2ft x 2ft, Max 30w Trimmable, 3000-5000K CCT adjustable
WBP - PIR and daylight sensor
14D30 - 1ft x 4ft, Max 30w Trimmable, 3000-5000K CCT adjustable

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.



Documents & Downloads

Specification & Sales Sheets
spec sheet

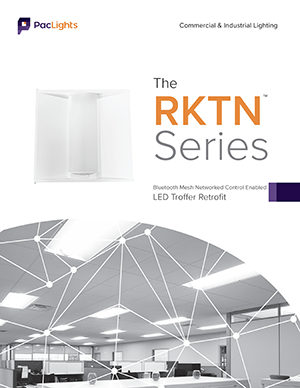

pdficonRKTN series Product Specification Sheet

* specifications are subject to change without notice.

pdficonRKTN series Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUOUTPUT TRIMCCTIES File
1451st (Latest)RKTN-14D30 config. to 3000K, trim to 100% output100%3000KDownload IES
1461st (Latest)RKTN-14D30 config. to 3000K, trim to 90% output90%3000KDownload IES
1471st (Latest)RKTN-14D30 config. to 3000K, trim to 80% output80%3000KDownload IES
1481st (Latest)RKTN-14D30 config. to 3000K, trim to 70% output70%3000KDownload IES
1491st (Latest)RKTN-14D30 config. to 3000K, trim to 60% output60%3000KDownload IES
1501st (Latest)RKTN-14D30 config. to 3000K, trim to 50% output50%3000KDownload IES
1511st (Latest)RKTN-14D30 config. to 3500K, trim to 100% output100%3500KDownload IES
1521st (Latest)RKTN-14D30 config. to 3500K, trim to 90% output90%3500KDownload IES
1531st (Latest)RKTN-14D30 config. to 3500K, trim to 80% output80%3500KDownload IES
1541st (Latest)RKTN-14D30 config. to 3500K, trim to 70% output70%3500KDownload IES
GENERATIONSKUOUTPUT TRIMCCTIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
213RKTN-14D30 CCT 830/835/840/850 NLC AS-DIF2P55.1PremiumIntegrated Retrofit Kits for 1x4 Luminaires
214RKTN-22D30 CCT 830/835/840/850 NLC AS-IYQ32K5.1PremiumIntegrated Retrofit Kits for 2x2 Luminaires
215RKTN-24D45 CCT 830/835/840/850 NLC AS-ZWADO05.1PremiumIntegrated Retrofit Kits for 2x4 Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
