Features
DLC QPL Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
Color and Power Selectable
Choose lumen output and color temperature before installation with integrated switch
Controls Ready

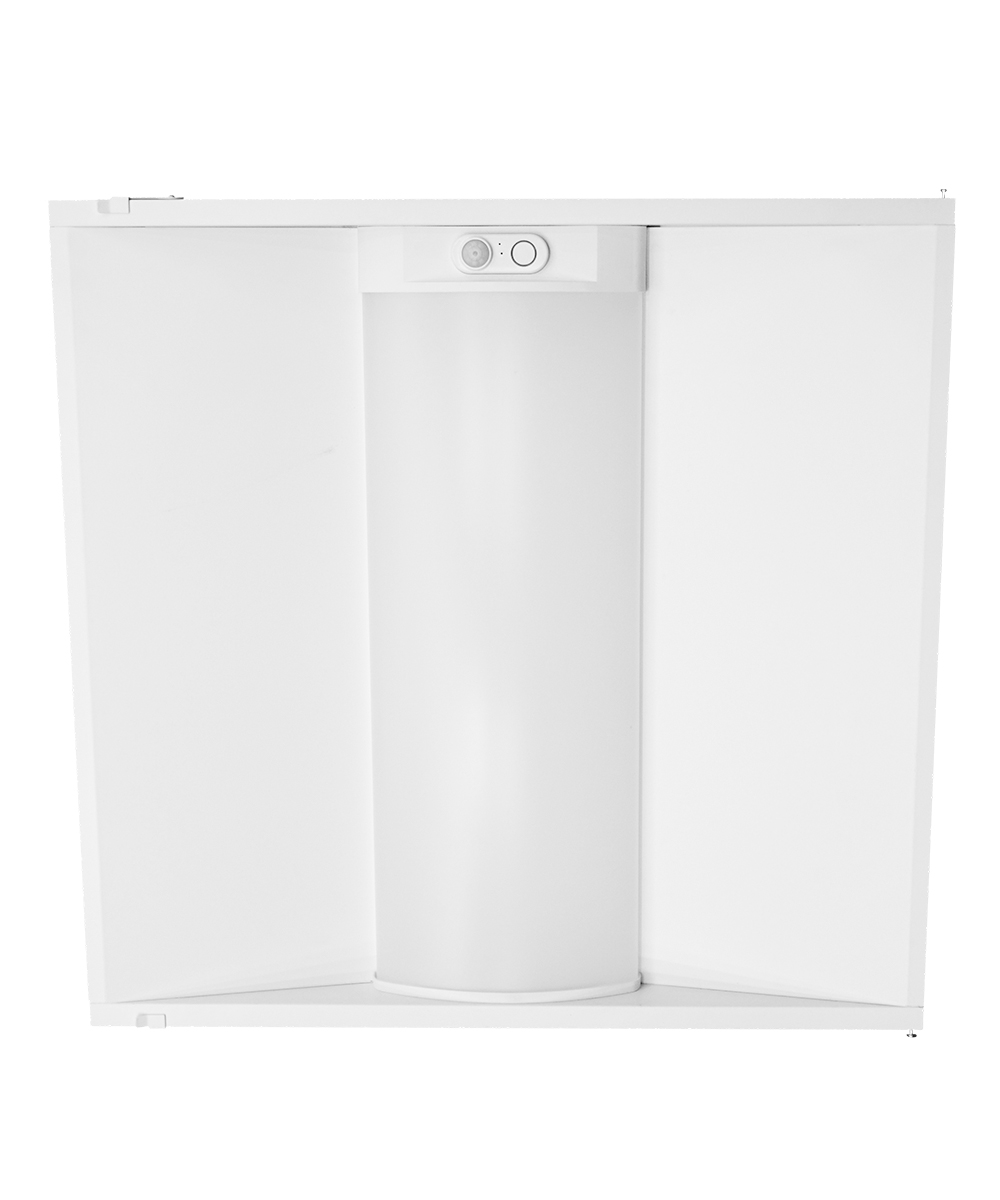

Maximizes energy savings with a PIR Bi-Level Dimming & Daylight control, or Bluetooth Mesh Wireless Networked Control.
Emergency Backup Available
When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.
NETWORKED LIGHTING CONTROL
OPTIONS AVAILABLE
Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.
5 minutes easy installation
STEP 1
Disconnect power, remove lens, tubes, ballast and cover of the original troffer
STEP 2

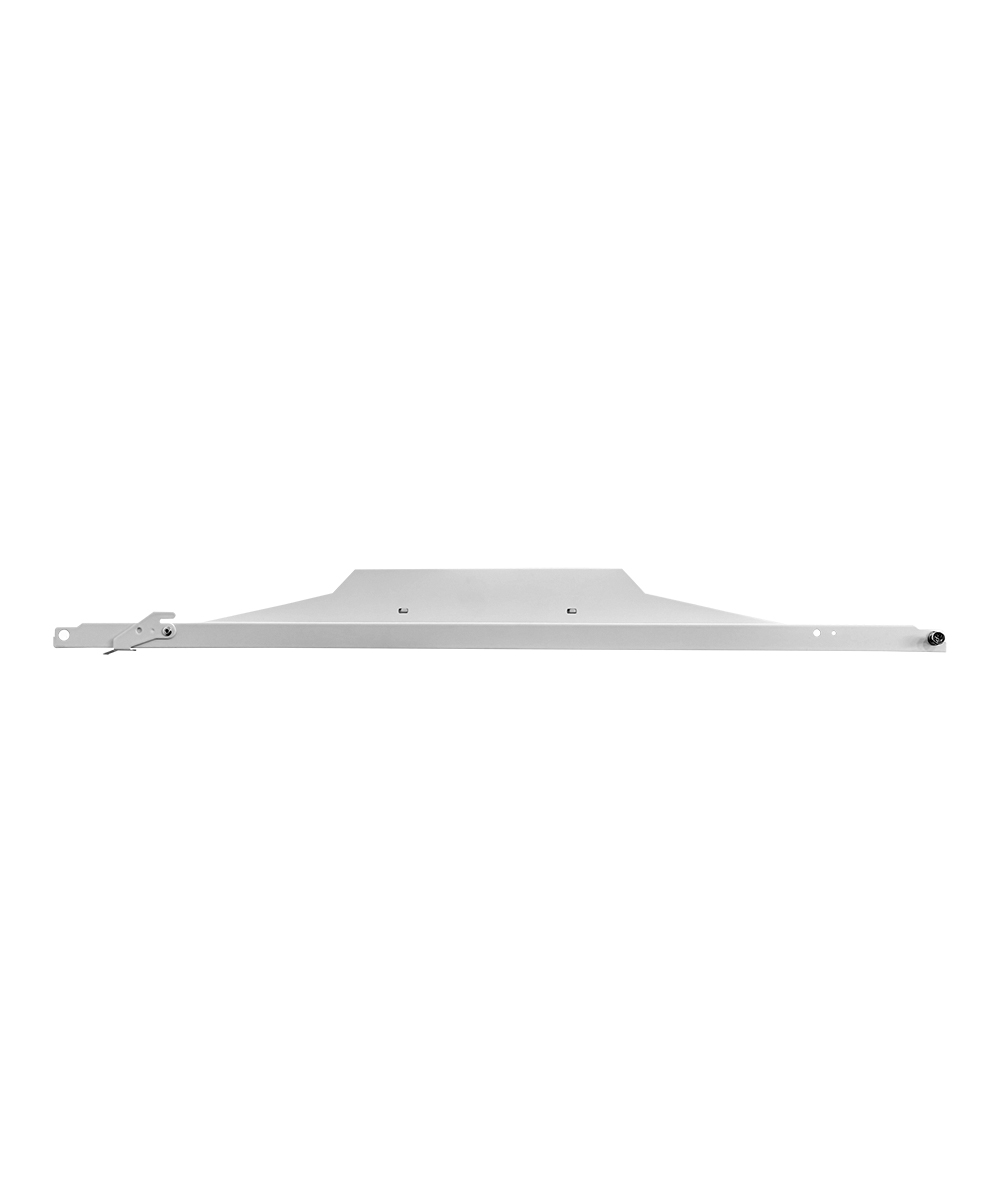

Insert and secure provided end plates, and if necessary, the side plates, between the original troffer and T-grid
STEP 3

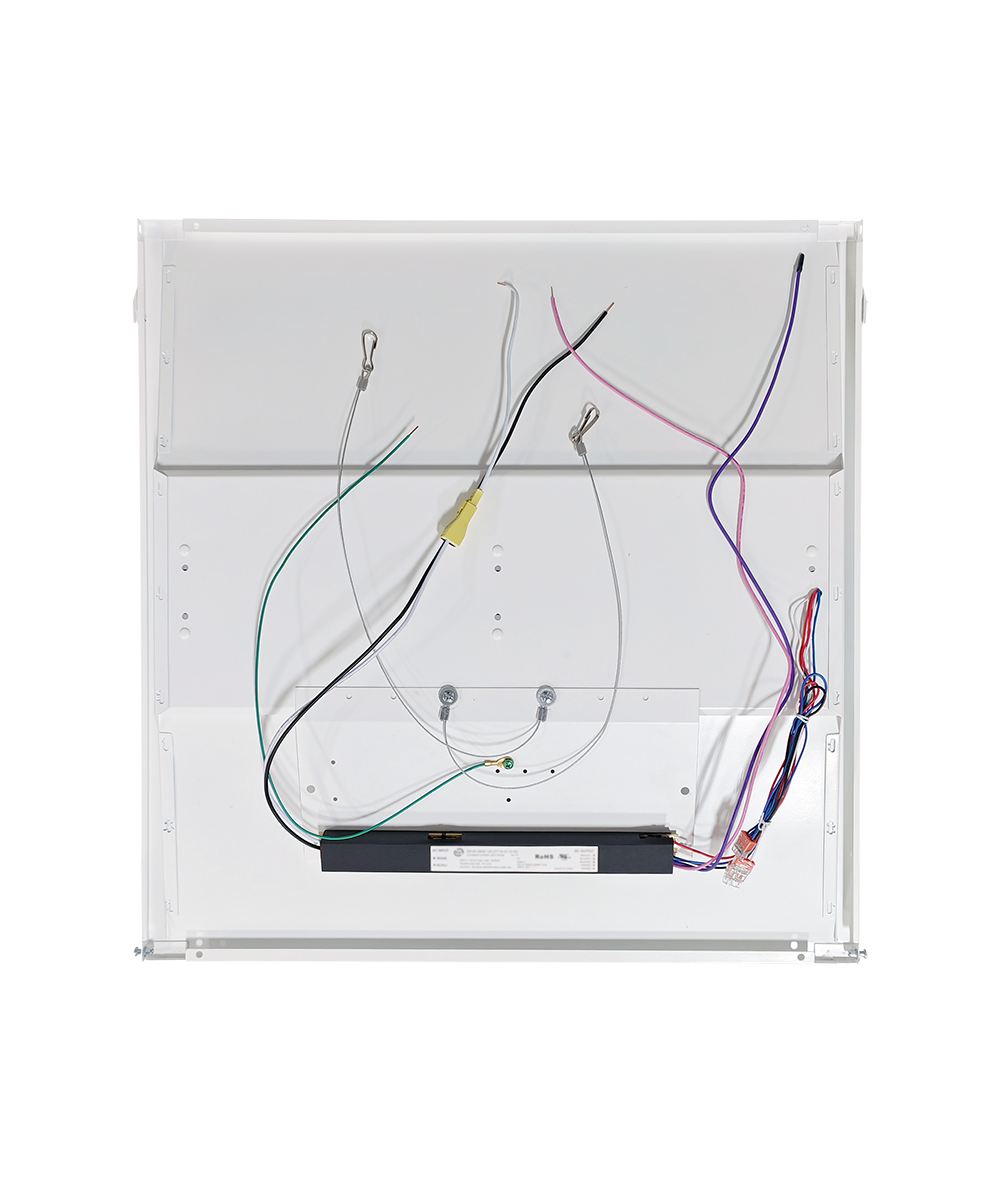

Hang the retrofit assembly door to the end plates installed in step 2, connect power to the retrofit kit
FINISH!
Close and secure the retrofit assembly door, remove protective film of the lens
Specs & Variations
| MODEL | Selectable Power and Color | |||
| 2 x 2' RKTF/2-22D-30/25/20 | 30w | 25w | 20w | |
| Lumen Package | 4,100 lm | 3,400 lm | 2,700 lm | |
| 5000K | 4,050 lm | 3,375 lm | 2,700 lm | |
| 4000K | 4,200 lm | 3,500 lm | 2,800 lm | |
| 3500K | 3,900 lm | 3,250 lm | 2,600 lm | |
| 2 x 4' RKTF/2-24D-35/30/25 | 35w | 30w | 25w | |
| Lumen Package | 4,800 lm | 4,100 lm | 3,400 lm | |
| 5000K | 4,725 lm | 4,050 lm | 3,375 lm | |
| 4000K | 4,900 lm | 4,200 lm | 3,500 lm | |
| 3500K | 4,550 lm | 3,900 lm | 3,250 lm | |
| 2 x 4' RKTF/2-24D-45/38/34 | 45w | 38w | 34w | |
| Lumen Package | 6,100 lm | 5,200 lm | 4,600 lm | |
| 5000K | 6,075 lm | 5,130 lm | 4,590 lm | |
| 4000K | 6,300 lm | 5,320 lm | 4,760 lm | |
| 3500K | 5,850 lm | 4,940 lm | 4,420 lm | |
| 1 x 4' RKTF/2-14D-30/25/20 | 30w | 25w | 20w | |
| Lumen Package | 4,100 lm | 3,400 lm | 2,700 lm | |
| 5000K | 4,050 lm | 3,375 lm | 2,700 lm | |
| 4000K | 4,200 lm | 3,500 lm | 2,800 lm | |
| 3500K | 3,900 lm | 3,250 lm | 2,600 lm | |
Build Your Light
| Family | Model | Options |
RKTF/2 |  | |
22D-30/25/20 - 2 x 2ft, 30w/25w/20w Power & 35/40/5000K CCT selectable adjustable | EM500 - emergency backup, 500 lumen | |
24D-35/30/25 - 2 x 4ft, 35w/30w/25w Power & 35/40/5000K CCT selectable adjustable | EM1000 - emergency backup, 1,000 lumen | |
24D-45/38/34 - 2 x 4ft, 45w/38w/34w Power & 35/40/5000K CCT selectable adjustable | MCP - PIR motion & daylight control | |
14D-30/25/20 - 1 x 4ft, 30w/25w/20w Power & 35/40/5000K CCT selectable adjustable | WBP - Bluetooth Networked Control w/ PIR sensor |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Documents & Downloads

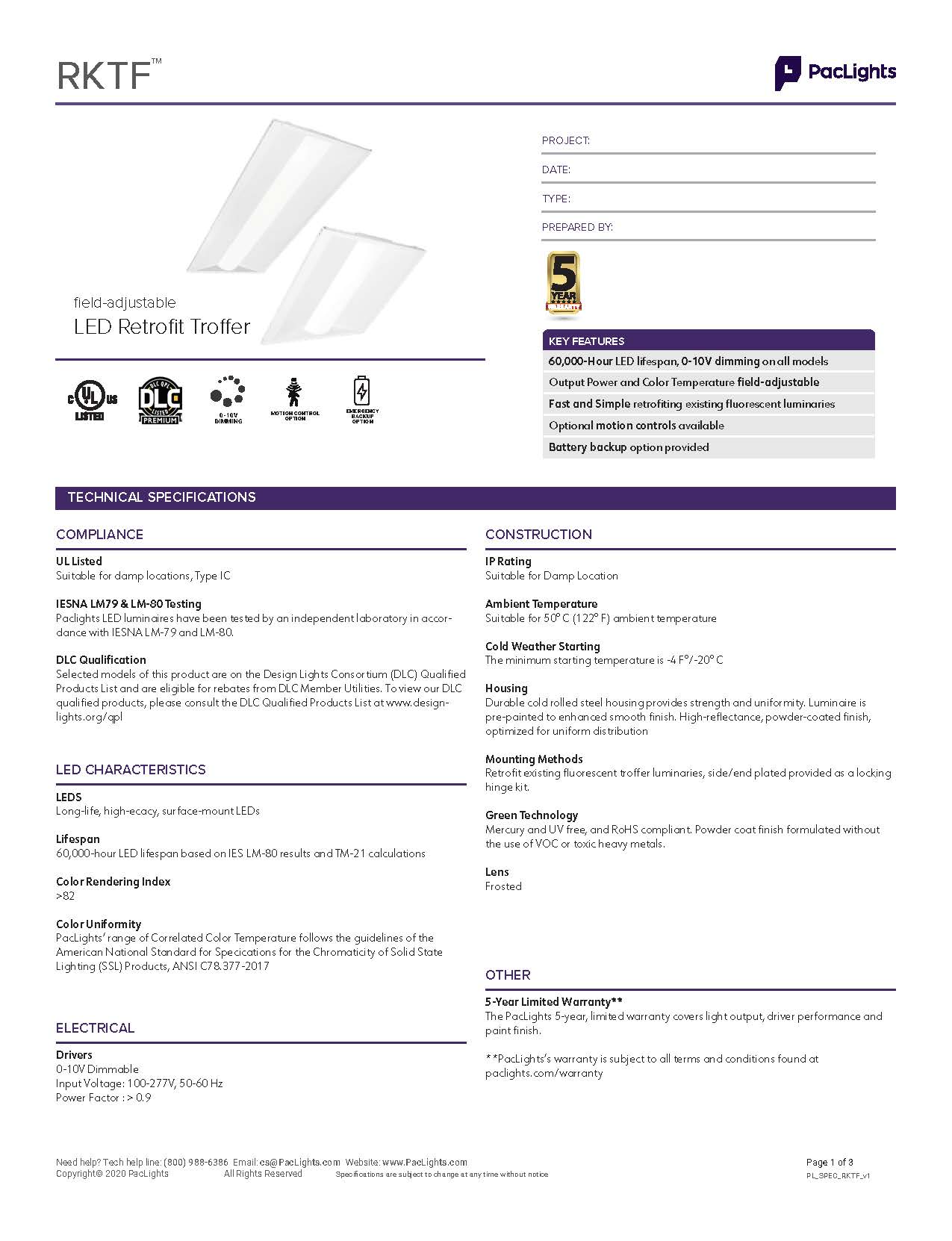

  RKTF series (RKTF/2) Product Specification Sheet |
Previous Generations:
(1st Generation)
RKTF series (RKTF) Product Spec Sheet
* specifications are subject to change without notice.
RKTF series (RKTF/2) Installation Guide
(1st Generation)
RKTF series (RKTF) Installation Guide
* installation instructions are subject to change without notice.
| wdt_ID | GENERATION | SKU | WATTAGE | CCT | IES File |
|---|---|---|---|---|---|
| 1 | 2nd (Latest) | RKTF/2-22D-30-35 | 30 | 3500K | Download IES |
| 2 | 2nd (Latest) | RKTF/2-22D-30-40 | 30 | 4000K | Download IES |
| 3 | 2nd (Latest) | RKTF/2-22D-30-50 | 30 | 5000K | Download IES |
| 4 | 2nd (Latest) | RKTF/2-22D-25-35 | 25 | 3500K | Download IES |
| 5 | 2nd (Latest) | RKTF/2-22D-25-40 | 25 | 4000K | Download IES |
| 6 | 2nd (Latest) | RKTF/2-22D-25-50 | 25 | 5000K | Download IES |
| 7 | 2nd (Latest) | RKTF/2-22D-20-35 | 20 | 3500K | Download IES |
| 8 | 2nd (Latest) | RKTF/2-22D-20-40 | 20 | 4000K | Download IES |
| 9 | 2nd (Latest) | RKTF/2-22D-20-50 | 20 | 5000K | Download IES |
| 10 | 2nd (Latest) | RKTF/2-24D-35-35 | 35 | 3500K | Download IES |
| GENERATION | SKU | WATTAGE | CCT | IES File |
*IES files might not cover all options
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 181 | RKTF/2-14D-20-35/40/50-(MC,EM,Blank,Both) | S-C5QDDZ | 5.1 | Standard | Integrated Retrofit Kits for 1x4 Luminaires |
| 182 | RKTF/2-14D-25-35/40/50-(MC,EM,Blank,Both) | S-LDJ26T | 5.1 | Standard | Integrated Retrofit Kits for 1x4 Luminaires |
| 183 | RKTF/2-14D-30-35/40/50-(MC,EM,Blank,Both) | S-WL6JL1 | 5.1 | Standard | Integrated Retrofit Kits for 1x4 Luminaires |
| 184 | RKTF/2-14D-30/25/20-35/40/50-(MC,EM,Blank,Both) | S-9BHD42 | 5.1 | Standard | Integrated Retrofit Kits for 1x4 Luminaires |
| 185 | RKTF/2-22D-20-35/40/50-(MC,EM,Blank,Both) | S-JHHH2P | 5.1 | Standard | Integrated Retrofit Kits for 2x2 Luminaires |
| 186 | RKTF/2-22D-25-35/40/50-(MC,EM,Blank,Both) | S-5K3Q9R | 5.1 | Standard | Integrated Retrofit Kits for 2x2 Luminaires |
| 187 | RKTF/2-22D-30-35/40/50-(MC,EM,Blank,Both) | S-KYX0M5 | 5.1 | Standard | Integrated Retrofit Kits for 2x2 Luminaires |
| 188 | RKTF/2-22D-30/25/20-35/40/50-(MC,EM,Blank,Both) | S-WTN01Z | 5.1 | Standard | Integrated Retrofit Kits for 2x2 Luminaires |
| 203 | RKTF/2-24D-25-35/40/50-(MC,EM,Blank,Both) | S-W7531L | 5.1 | Standard | Integrated Retrofit Kits for 2x4 Luminaires |
| 204 | RKTF/2-24D-30-35/40/50-(MC,EM,Blank,Both) | S-BNCYHL | 5.1 | Standard | Integrated Retrofit Kits for 2x4 Luminaires |
