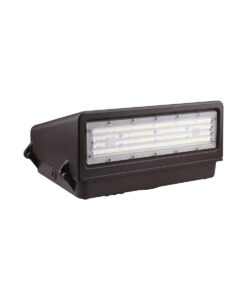

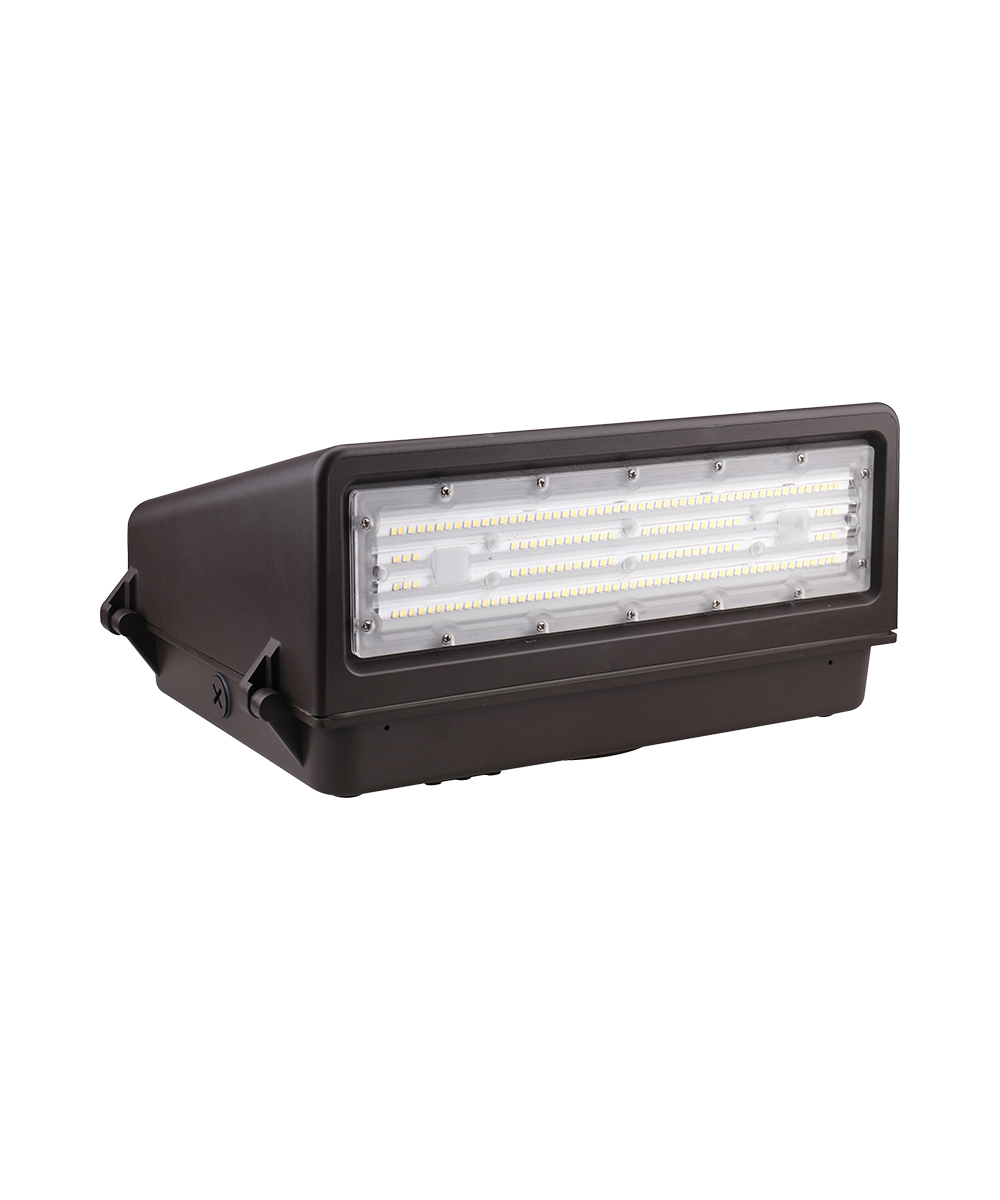

FWPC series LED Wall Mount

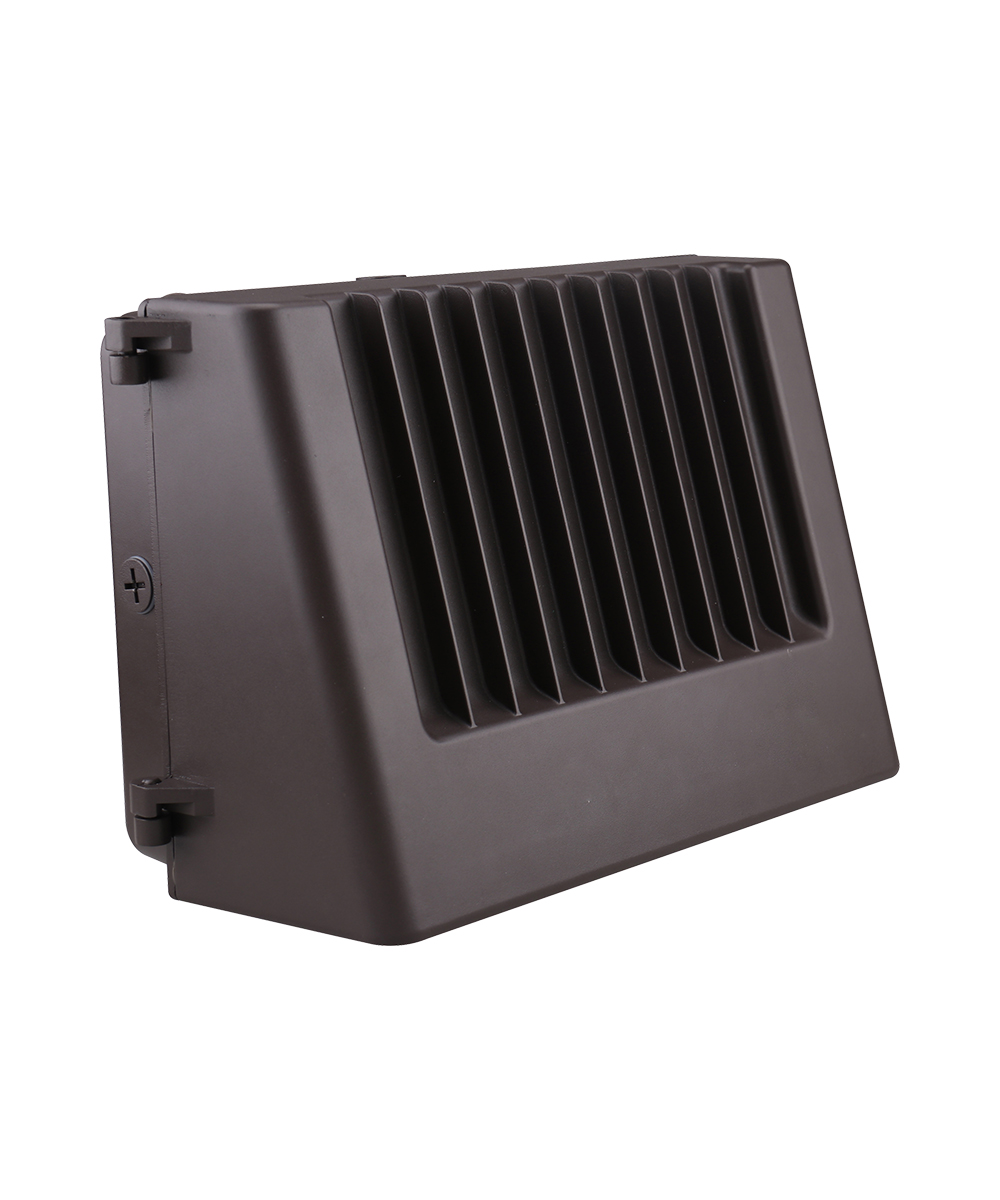

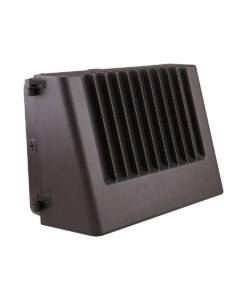

FWPC series LED Wall Mount - Image 2

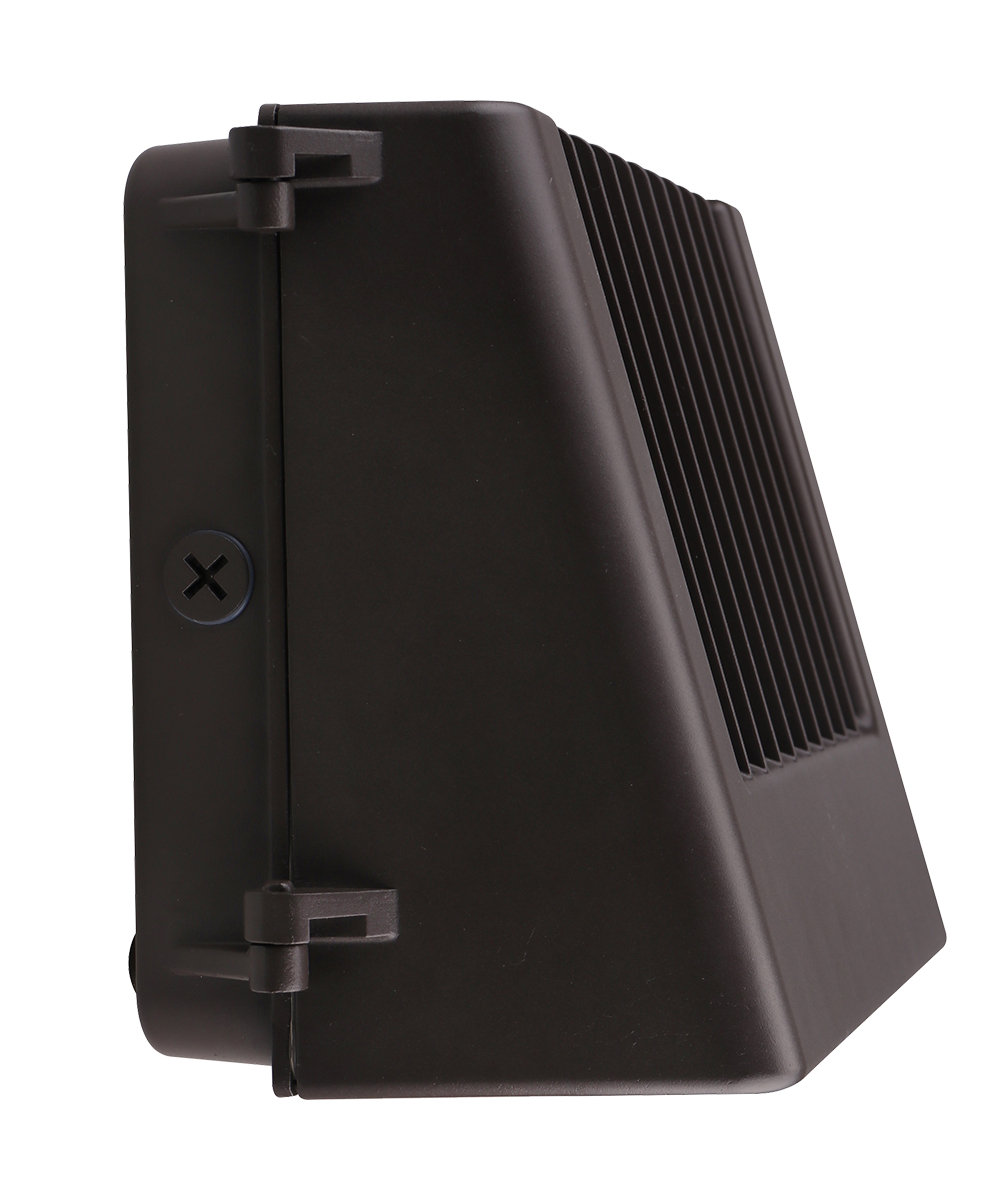

FWPC series LED Wall Mount - Image 3

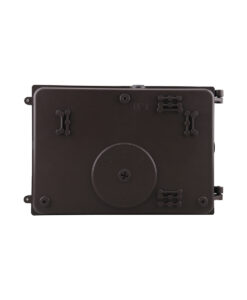

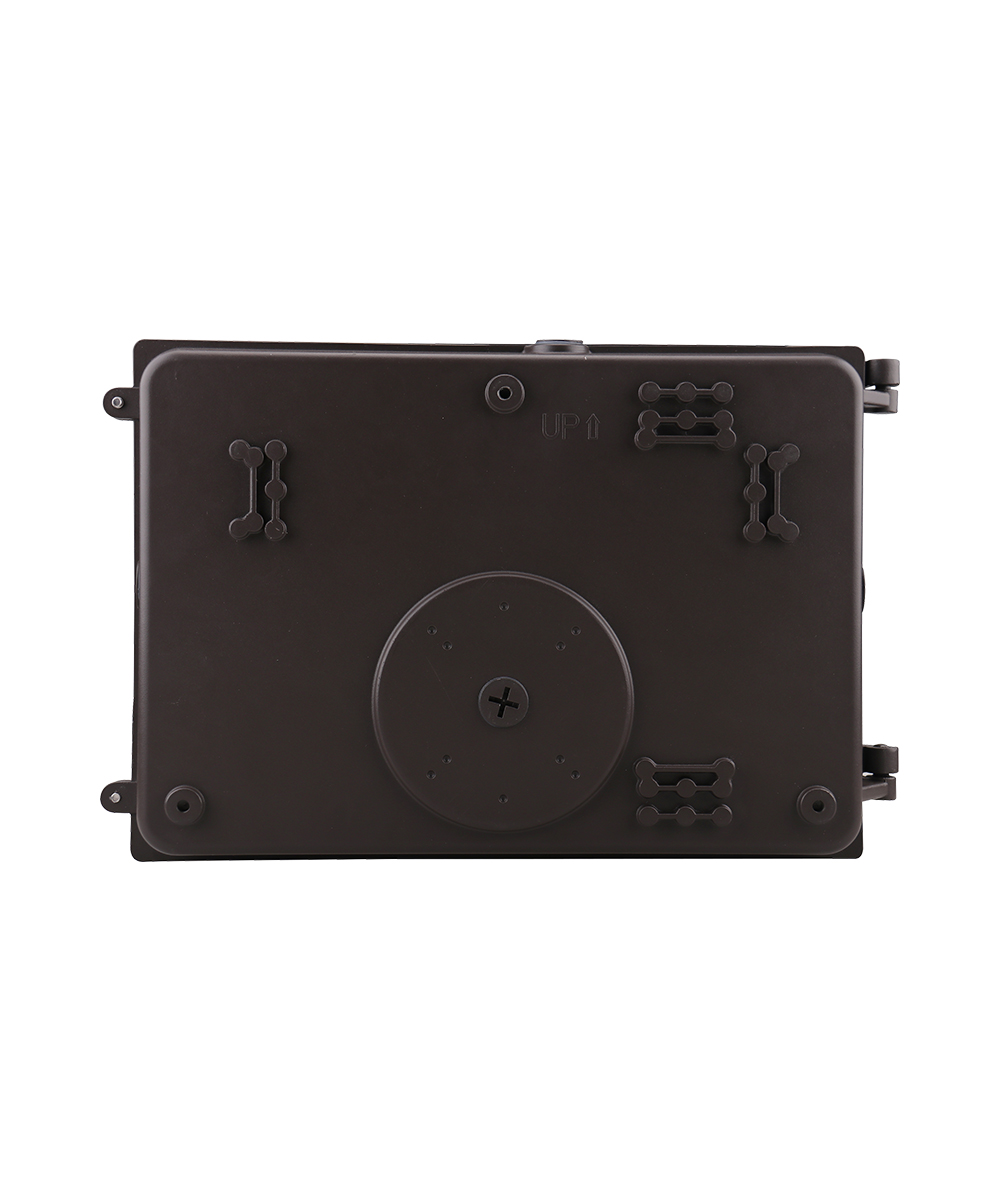

FWPC series LED Wall Mount - Image 4
FWPC series LED Wall Mount - Image 5

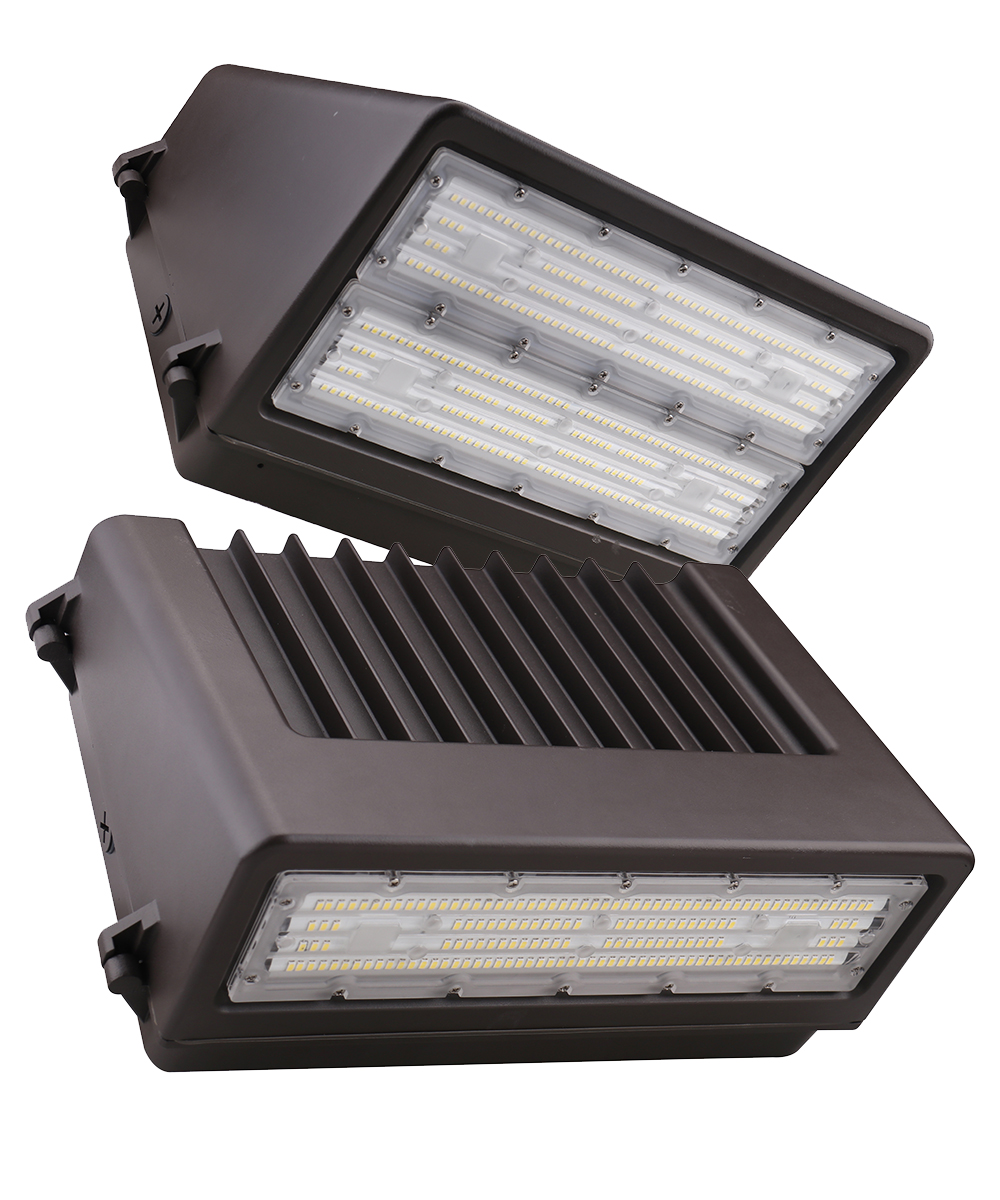

FWPC series LED Wall Mount

The FWPC Series LED Wall Mount is a full-cutoff LED wall pack designed to meet Dark Sky compliance standards. This fixture delivers 100,000 hours of reliable, energy-efficient lighting while adhering to local light pollution regulations. Featuring color-selectable models (3000K, 4000K, and 5000K), it offers flexibility for various applications and includes a built-in photocell sensor. For added convenience, an emergency battery backup option is available, ensuring peace of mind in critical situations.

– Limited Warranty: 5 years
– Efficacy: up to 146 LPW
– Lumen Output: 4,800 – 21,000 L
– Wattage: 40 – 150 W
– Selected models 3000K/4000K/5000K field-selectable

UL Listed DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 4,800 lm to 21,000 lm
SKU: FWPC Categories: , Tag:

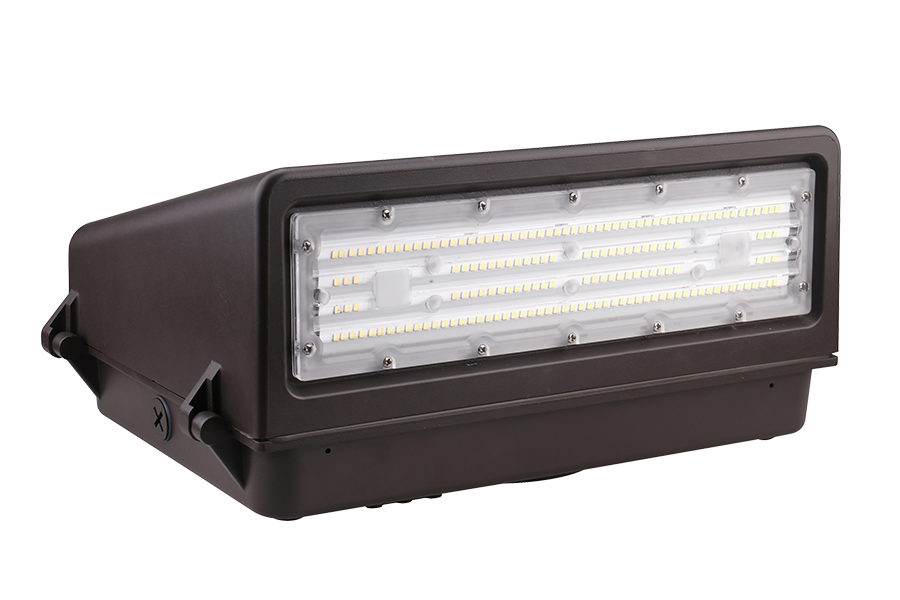

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

CCT Selectable

Choose Light Color Temperature 3000K/4000K/5000K before installation with integrated switch, or change later for a different application. (on selected models)

Optional Photocontrol

Optional photocell control that is triggered to allow power supply when light levels fall below a specified value and then switch the supply off when the light level reaches another designated value.

Bi-level Motion Control Option

Optional Bi-Level Dimming control maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.



Specs & Variations

Model LED Wattage Lumen@5000K Lumen@4000K Lumen@3000K
FWPC-040 40W 5,040 lm 5,680 lm 4,880 lm
FWPC-060 60W 7,620 lm 8,640 lm 7,320 lm
FWPC-080 80W 10,080 lm 11,360 lm 9,680 lm
FWPC-100 100W 13,000 lm 14,600 lm 12,600 lm
FWPC-120 120W 15,240 lm 16,800 lm 14,520 lm
FWPC-150 150W 18,900 lm 21,300 lm 18,000 lm



Build Your Light

Family Model Color Temperature Options

FWPC
040 - 40w
30 - 3000K
SP - secondary surge protector
060 - 60w
40 - 4000K
PC - photocell control
080 - 80w
50 - 5000K
MC - motion control (PIR)
100 - 100w
3CCT - 3000/4000/5000K Selectable
MW - motion control (microwave)
120 - 120w
EM - emergency battery backup
150 - 150w

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.



Documents & Downloads

Specification & Sales Sheets
spec sheet

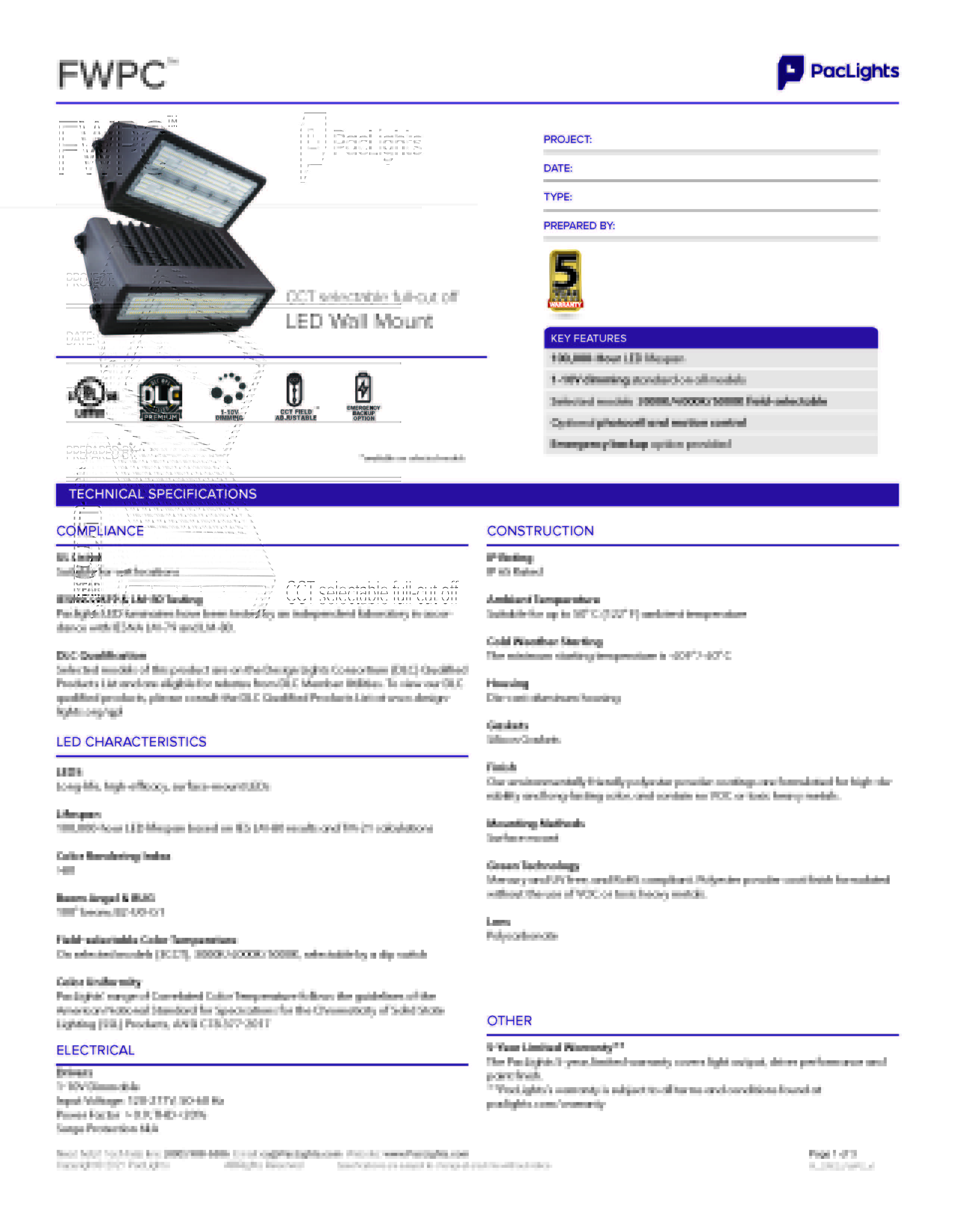

pdficonFWPC series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFWPC series Installation Guide

* installation instructions are subject to change without notice.

Download IES Files:

FWPC-040 | FWPC-060 | FWPC-080 | FWPC-100 | FWPC-120 | FWPC-150

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
213FWPC-040-X-3-Z-[PC;blank][PI;MC;blank][SP;blank][EM;blank]CPLV4EMD83NG95.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
214FWPC-060-X-3-Z-[PC;blank][PI;MC;blank][SP;blank][EM;blank]CPL22ADQ1ASG75.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
215FWPC-080-X-3-Z-[PC;blank][PI;MC;blank][SP;blank]CPLMKL6FYE51D5.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
216FWPC-100-X-3-Z-[PC;blank][PI;MC;blank][SP;blank]CPLFFC7FXOTE35.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
217FWPC-120-X-3-Z-[PC;blank][PI;MC;blank][SP;blank]CPL021HEMSZSC5.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
218FWPC-150-X-3-Z-[PC;blank][PI;MC;blank][SP;blank]CPLXJA3UZV68T5.1PremiumOutdoor Full-Cutoff Wall-Mounted Area Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
