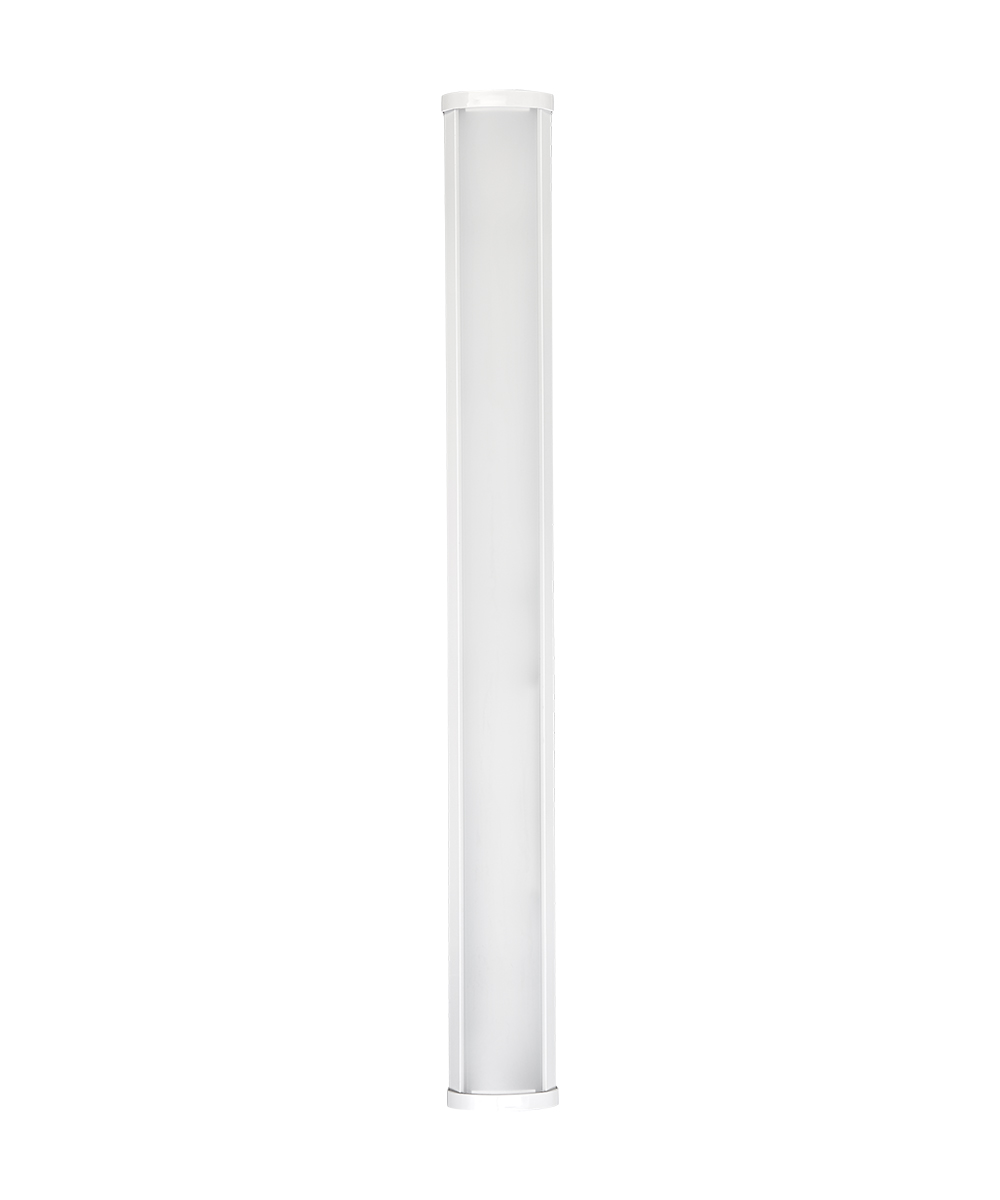

FSWE series Wrap Lights

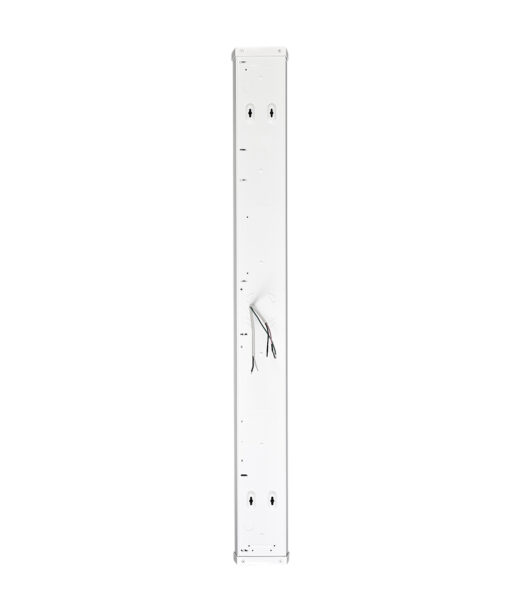

FSWE series Wrap Lights - Image 2

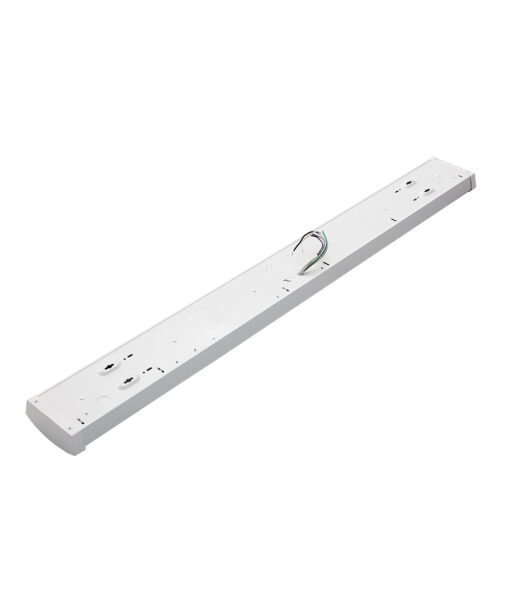

FSWE series Wrap Lights - Image 3

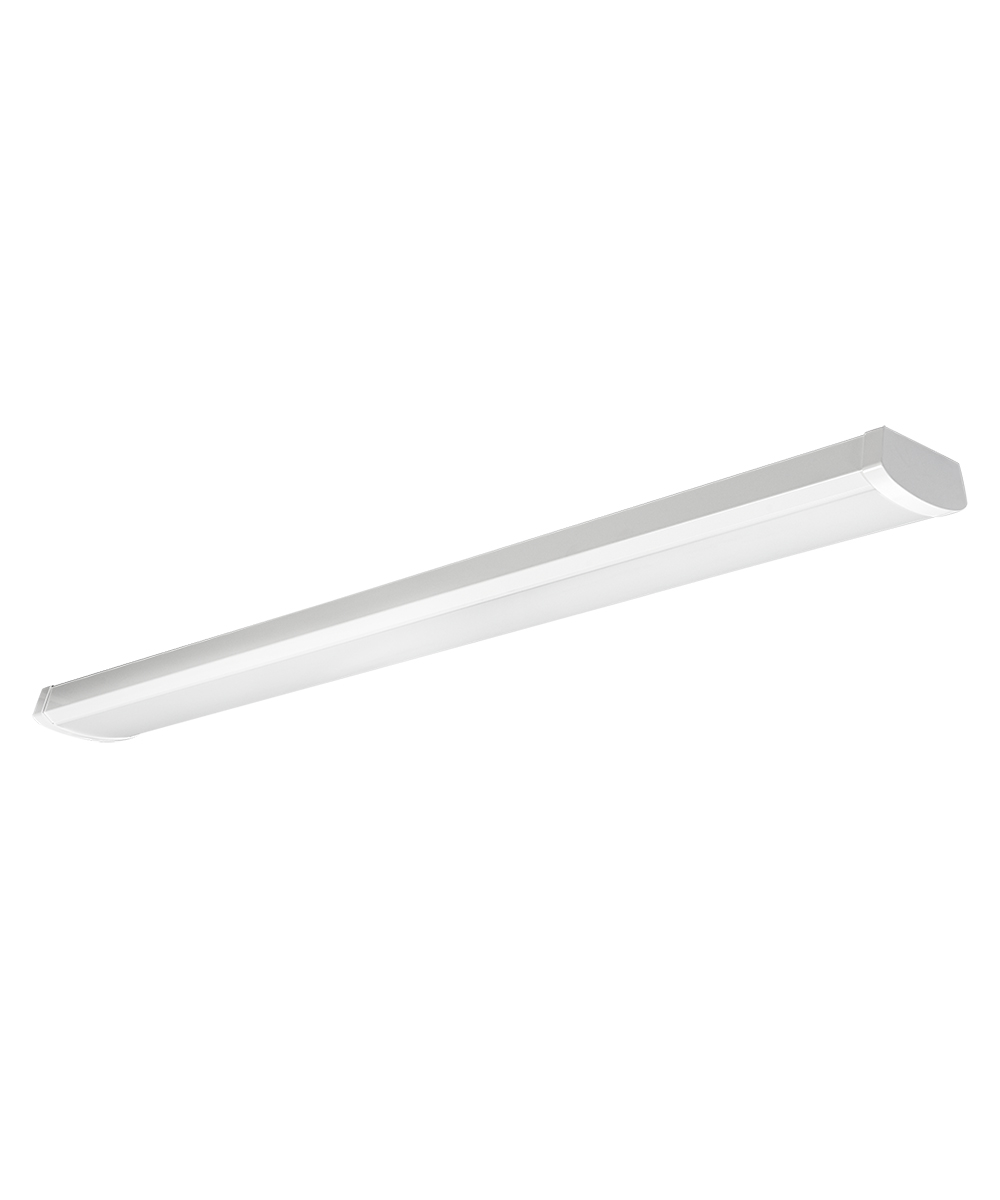

FSWE series Wrap Lights - Image 4

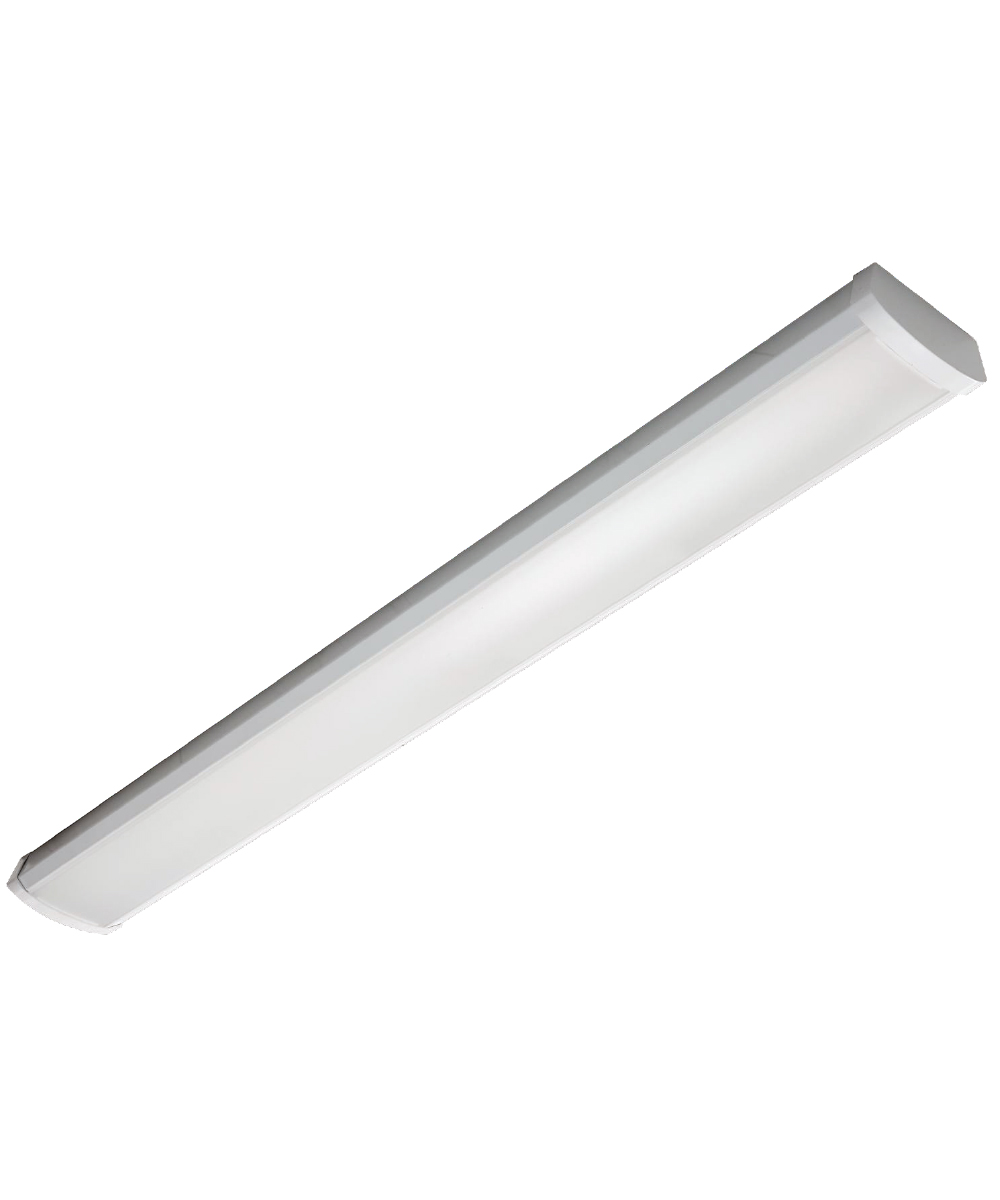

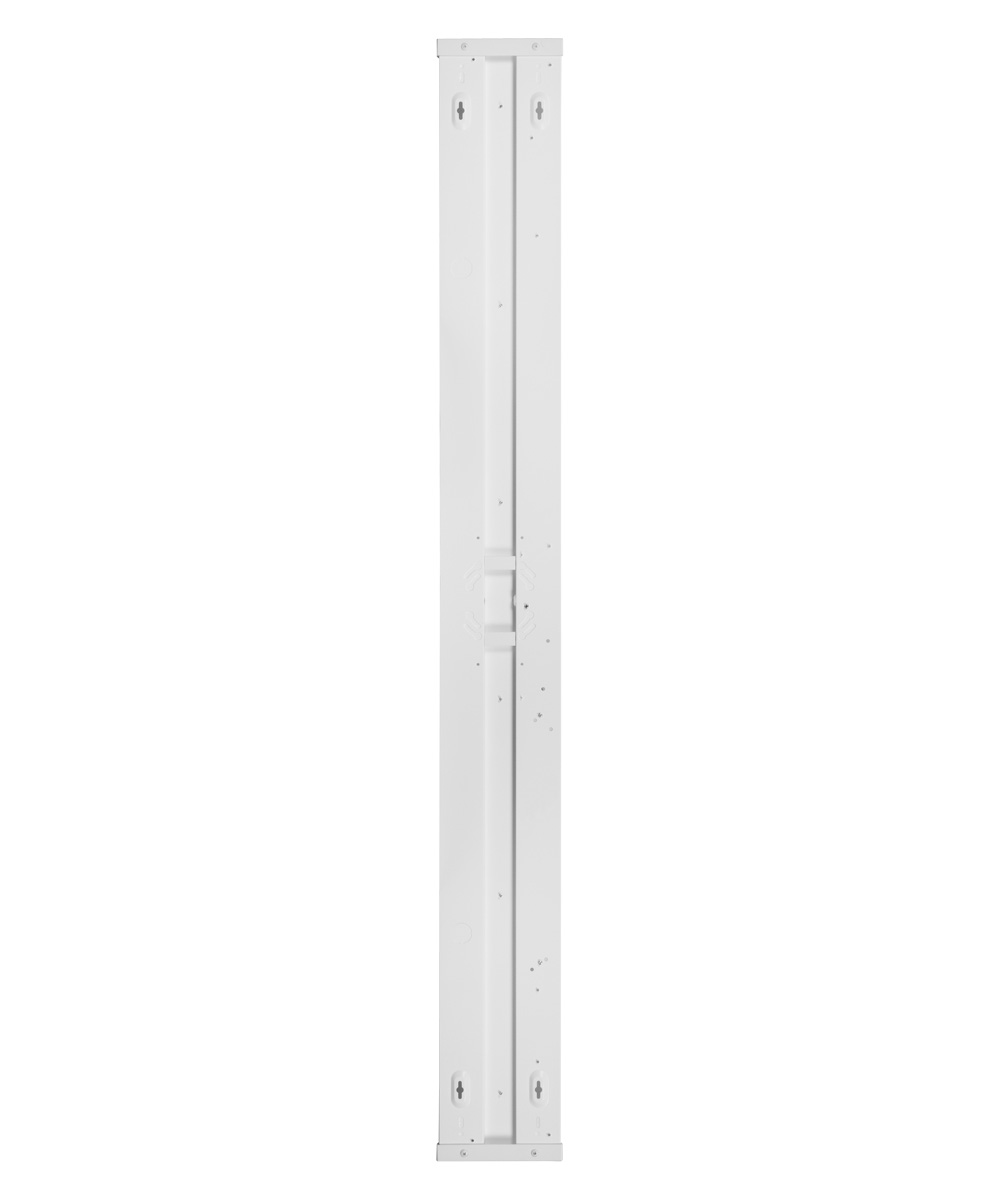

FSWE series Wrap Lights - Image 5

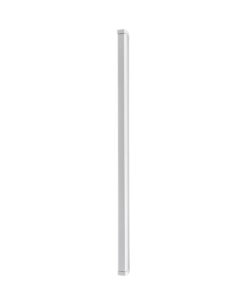

FSWE series Wrap Lights - Image 6

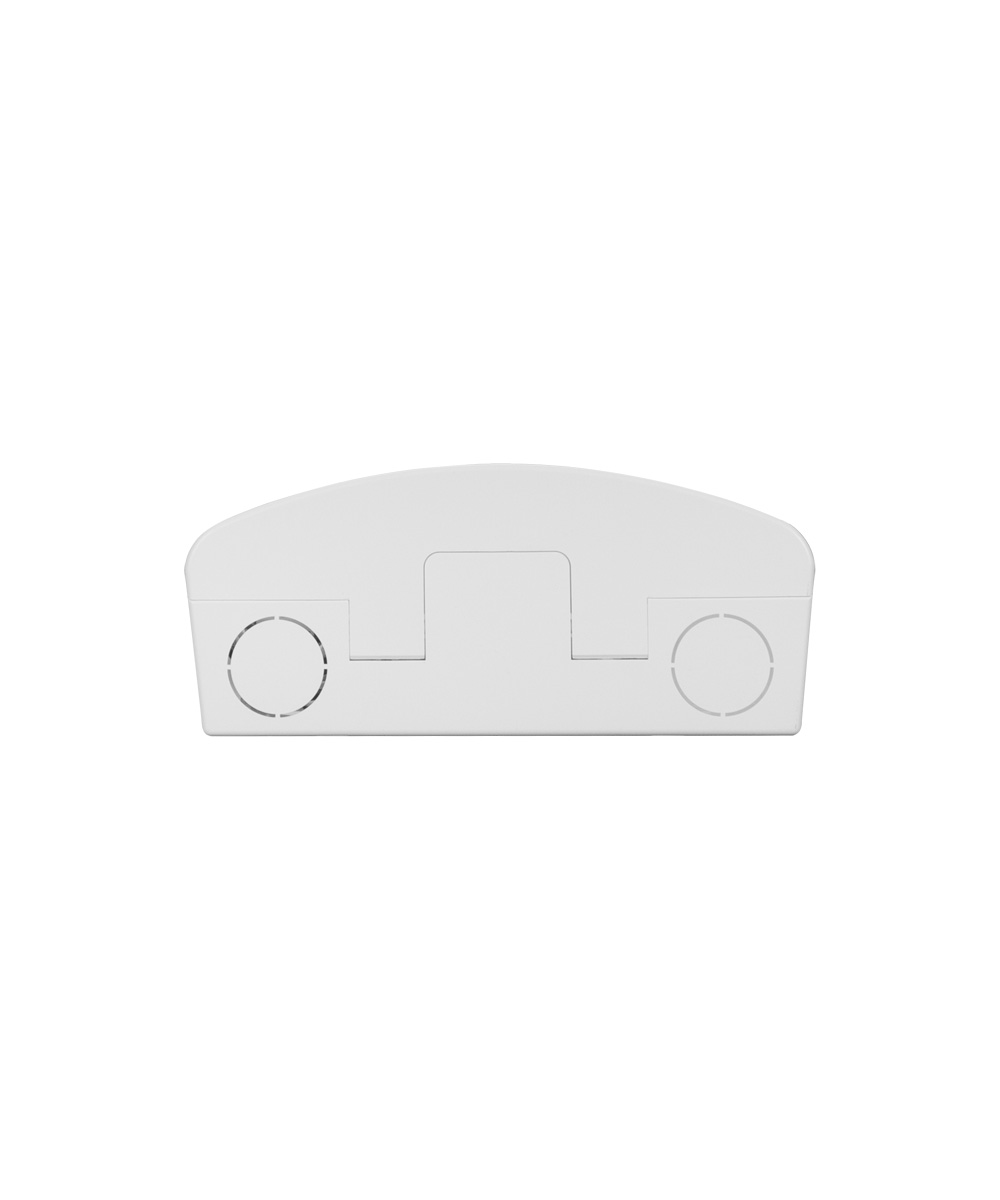

FSWE series Wrap Lights - Image 7

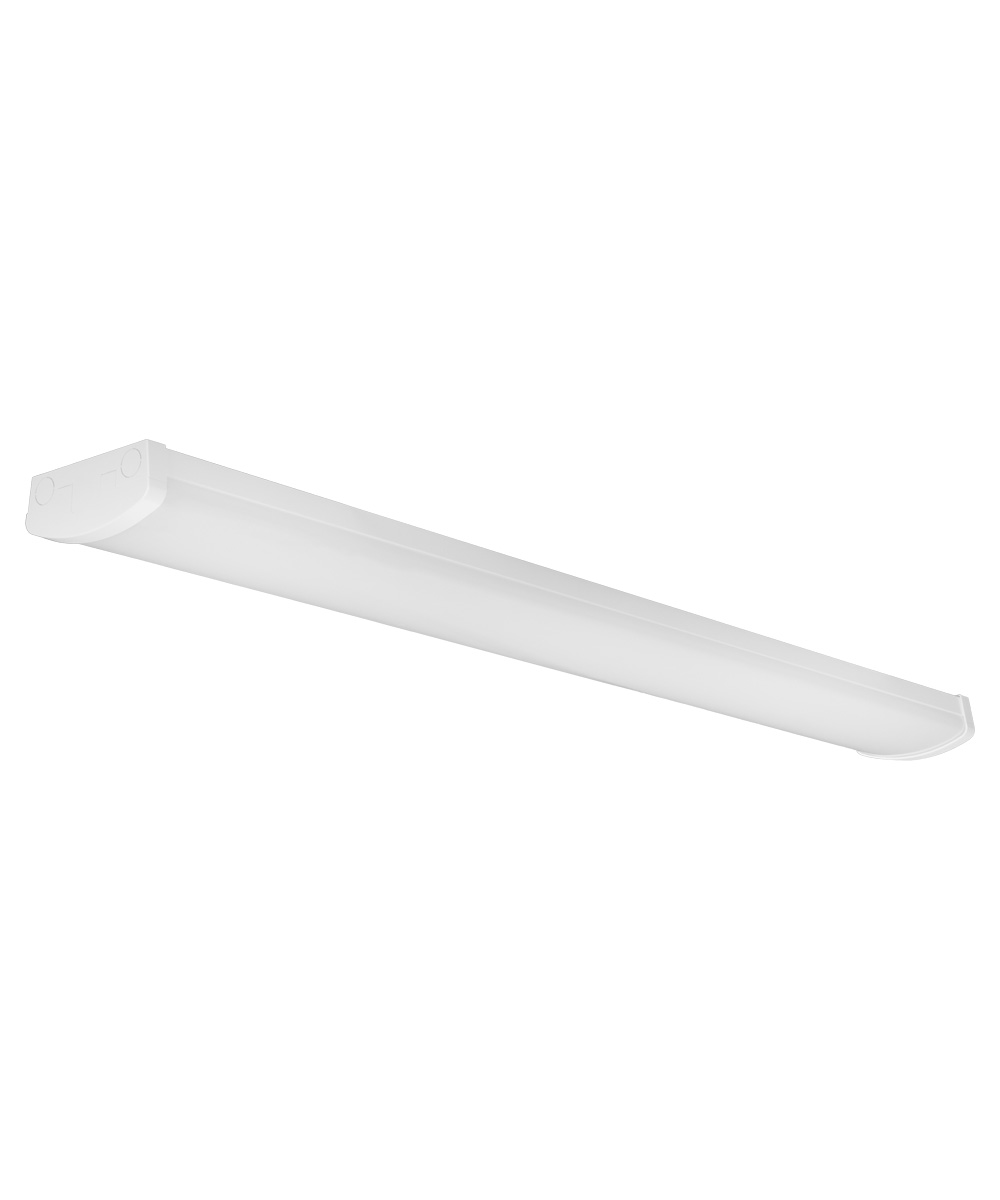

FSWE series Wrap Lights

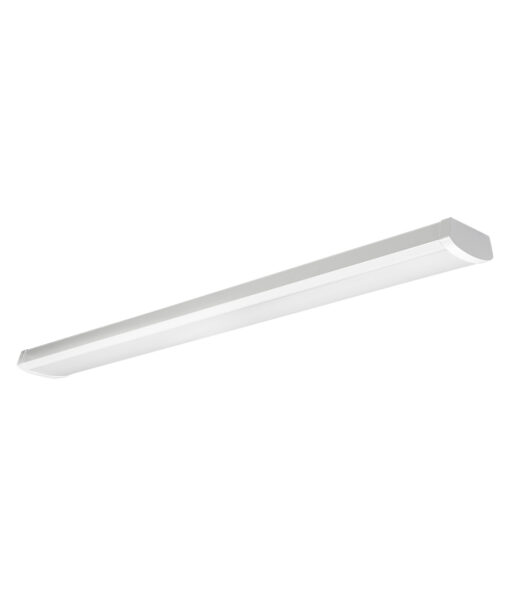

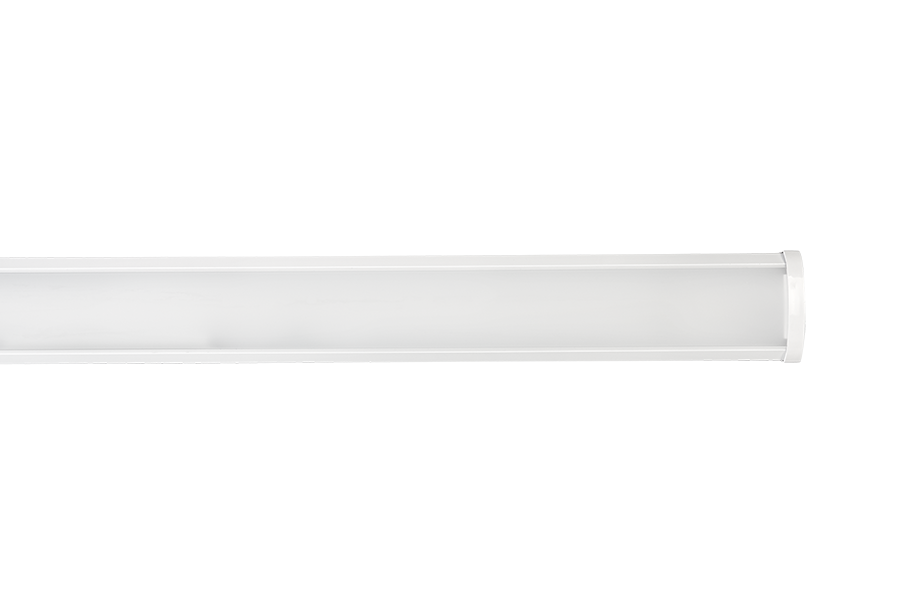

The FSWE provides field adjustability in an ultra-economical wrap. It offers selectable wattage and color temperature, along with various sensor options. The FSWE’s high-reflectance finish and white PMMA diffusion lens soften the light and reduce glare.

– Limited Warranty: 5 Years
– Efficacy: up to 116 LPW
– Lumen Output: 4,000 – 5,600 LM
– Wattage: 48 / 40 / 32 W Field-selectable
– CCT: 3500/4000/5000K Field-selectable

UL Listed  DLC QPL

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 4,000 lm to 5,600 lm
SKU: FSWE Category: Tag:

Features

DLC QPL Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Color and Power Selectable

Choose lumen output and color temperature before installation with integrated switch

Controls Options

Maximizes energy savings with an optional Microwave Bi-Level Dimming & Daylight control, or Bluetooth Mesh Wireless Networked Control.

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.

Specs & Variations

FSWE-4D
Wattage Selected to 48W 40W 32W
Lumen Package 5,600 lm 4,800 lm 4,000 lm
CCT Selected to 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
Lumen 5,520 lm 5,616 lm 5,568 lm 4,720 lm 4,800 lm 4,760 lm 3,872 lm 3,936 lm 3,904 lm

* all models are wattage and 3500k/4000k/5000k CCT field-selectable.

Build Your Light

Family Model Mount Control Emergency Backup

FSWE
4D - 4ft, 48w/40w/32w Power & 3500/4000/5000k CCT selectable
[Blank] - Surface mount
[Blank] - no control
[Blank] - none emergency
AC - Aircraft cable
MCD - Bi-level microwave and daylight sensor
EM500 - 500 lumen, 90 mins
WBN - Bluetooth NLC node
EM1000 - 1,000 lumen, 90 mins
WBM - Bluetooth NLC node w/ microwave & daylight sensor
EM1800 - 1,800 lumen, 90 mins
EM2500 - 2,500 lumen, 90 mins

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.

Documents & Downloads

Specification & Sales Sheets

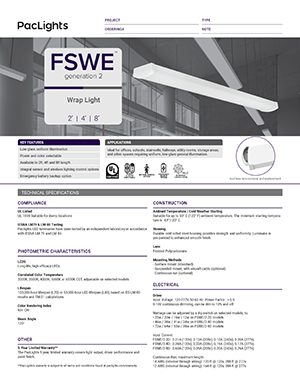

spec sheet

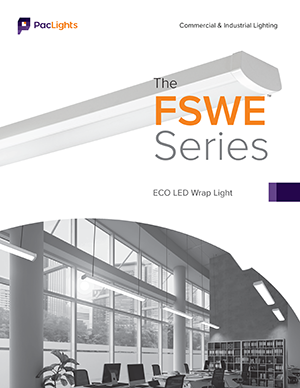

pdficonFSWE series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFSWE series Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTIES File
731st (Latest)FSWE-4D config. to 32W 3500K323500KDownload IES
741st (Latest)FSWE-4D config. to 32W 4000K324000KDownload IES
751st (Latest)FSWE-4D config. to 32W 5000K325000KDownload IES
761st (Latest)FSWE-4D config. to 40W 3500K403500KDownload IES
771st (Latest)FSWE-4D config. to 40W 4000K404000KDownload IES
781st (Latest)FSWE-4D config. to 40W 5000K405000KDownload IES
791st (Latest)FSWE-4D config. to 48W 3500K483500KDownload IES
801st (Latest)FSWE-4D config. to 48W 4000K484000KDownload IES
811st (Latest)FSWE-4D config. to 48W 5000K485000KDownload IES
GENERATIONSKUWATTAGECCTIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
215FSWE-4D-(MCx/WBx, EMx, Blank, Both)S-1TG4FG5.1StandardDirect Linear Ambient Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
