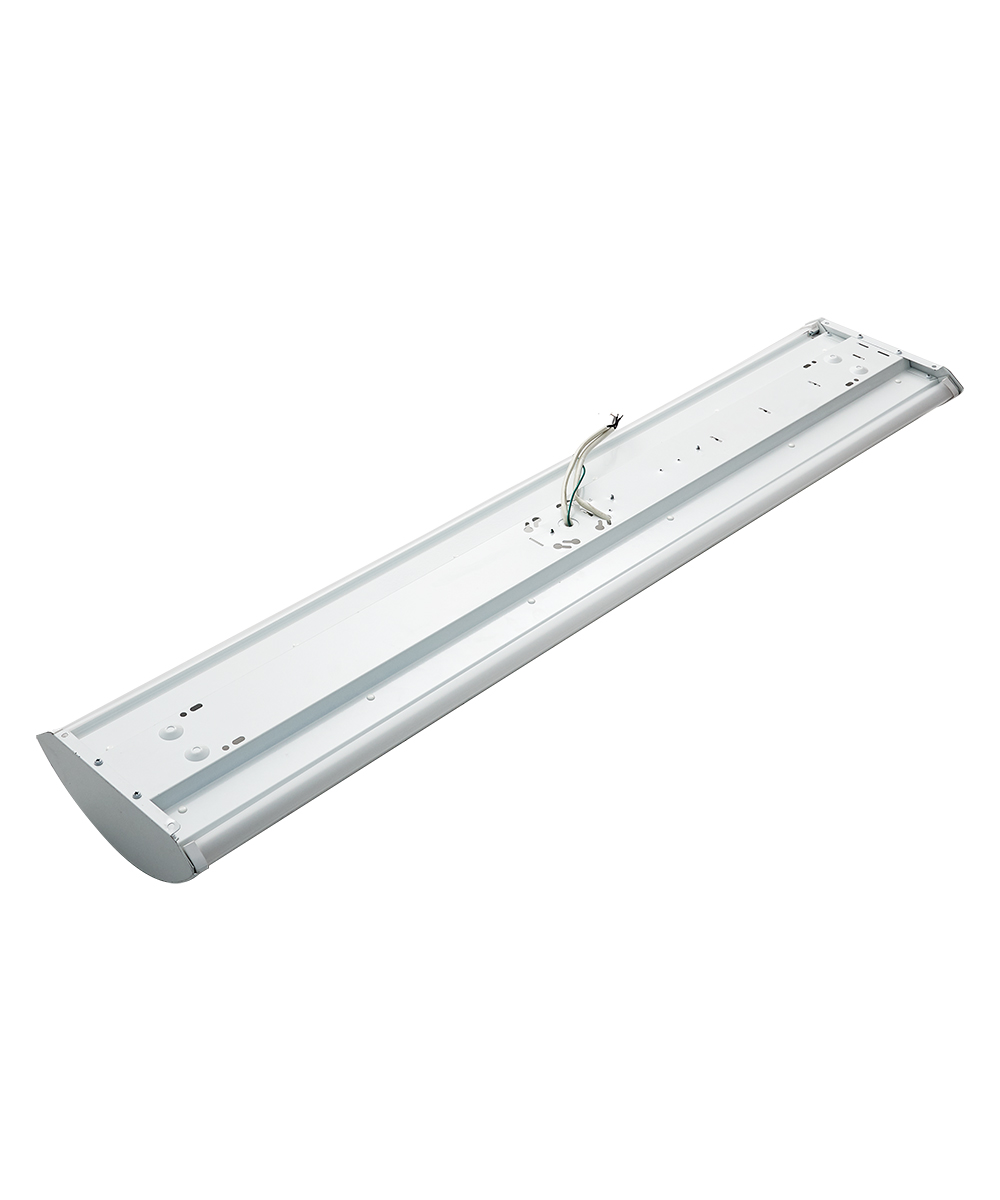

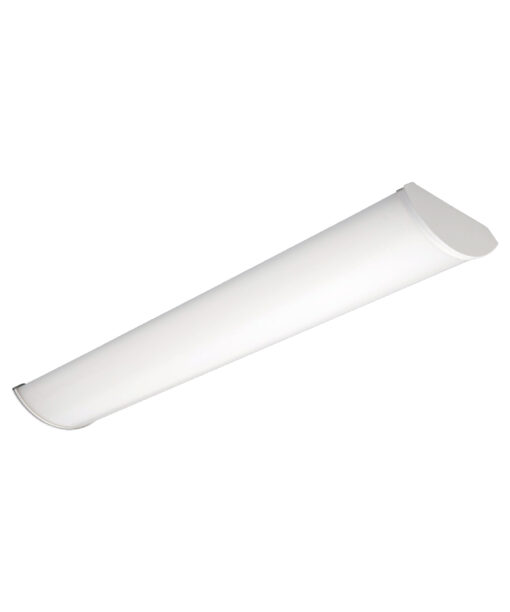

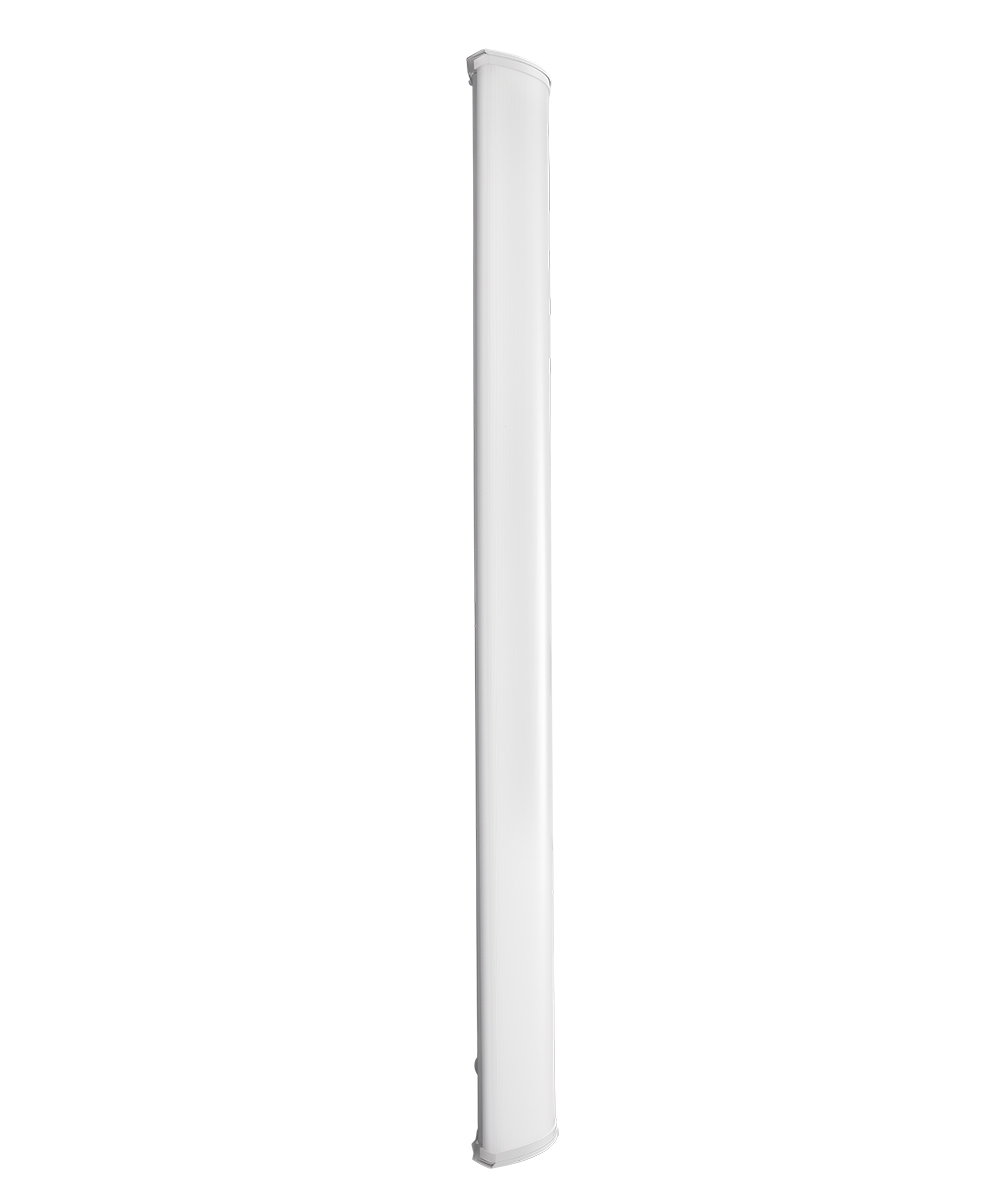

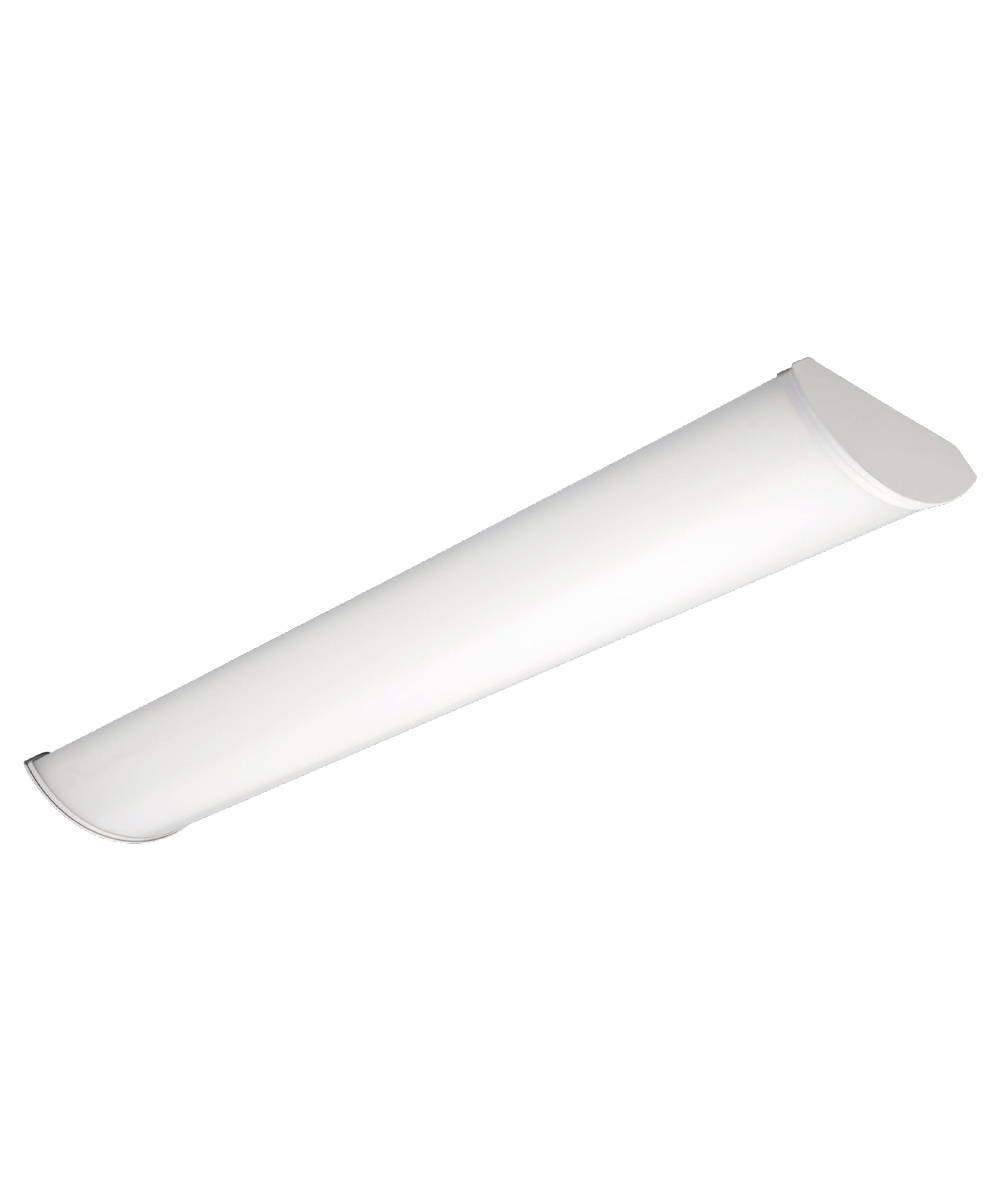

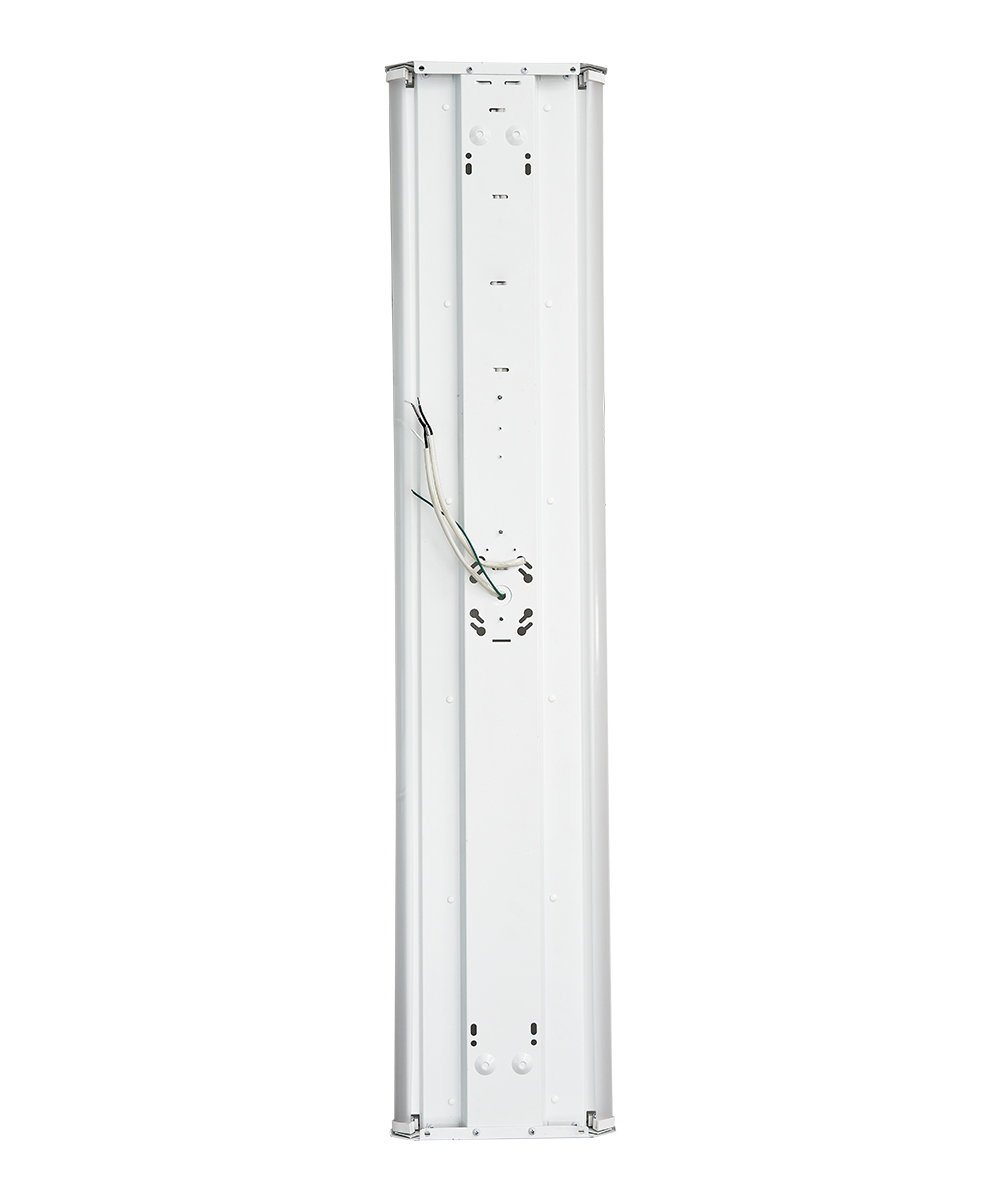

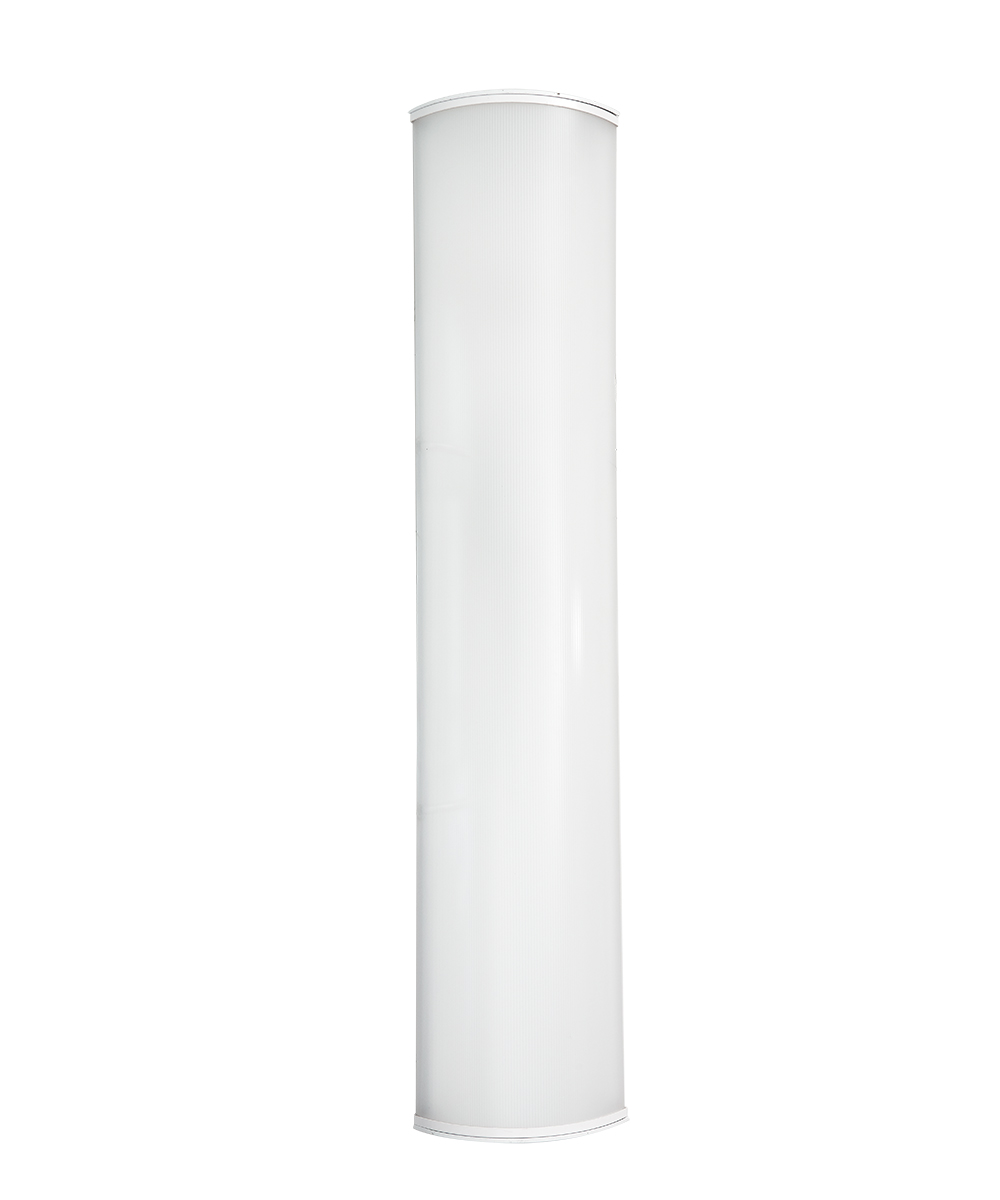

FSWC series Wrap Lights

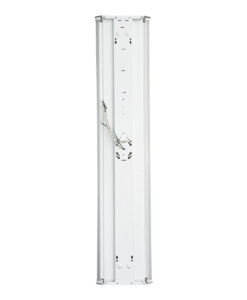

FSWC series Wrap Lights - Image 2
FSWC series Wrap Lights - Image 3
FSWC series Wrap Lights - Image 4
FSWC series Wrap Lights - Image 5
FSWC series Wrap Lights - Image 6

FSWC series Wrap Lights

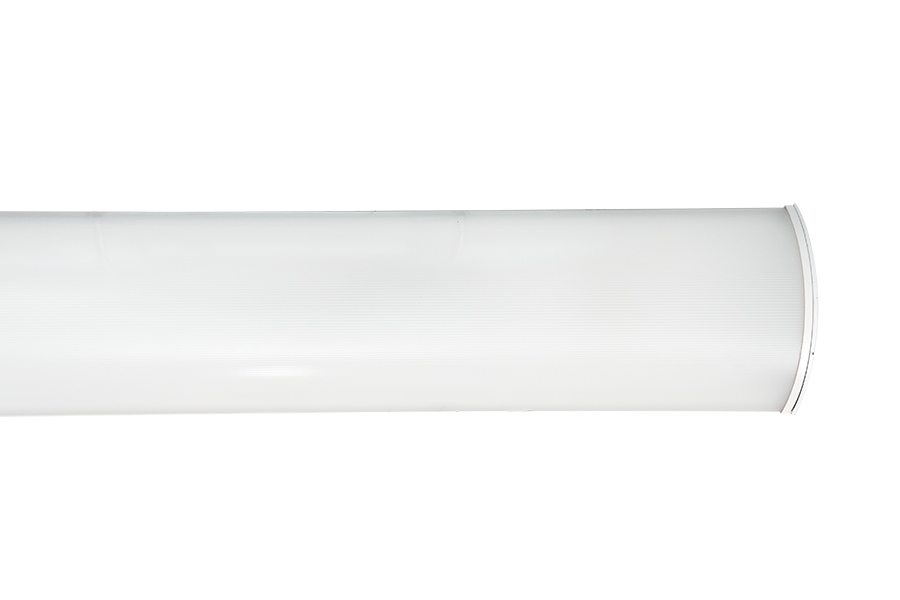

The FSWC is a architectural Curved Wrap fixture designed to provide general ambient lighting for surface-mounted ceiling/wall or pendant-mounted applications. Its high-reflectance finish, paired with a white PMMA diffusion lens, softens the light and minimizes glare.

– Limited Warranty: 5 Years
– Efficacy: up to 133 LPW
– Lumen Output: 4,800 – 6,300 LM
– Wattage: 45 / 38 / 34 W Field-selectable
– CCT: 3500/4000/5000K Field-selectable

UL Listed  DLC QPL

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 4,800 lm to 6,300 lm
SKU: FSWC Category: Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Wattage and Color Selectable

Choose wattage and/or color temperature (3500K/4000/5000K) before, during, or after the installation with integrated dip switch.

Control Options

Easier than ever before, factory installed controls enables a smooth installation process, providing options for Bi-Level Microwave Dimming control or Networked Lighting controls. This streamlined approach ensures maximum energy savings.

Emergency Options

When there is a power outage, the optional emergency backup driver
and battery will power the FSWC to a brightness of up to 2,500 lumen for at least 90 mins.

Specs & Variations

FSWC-4D
Wattage Selected to 45W 38W 34W
Lumen Package 6,100 lm 5,300 lm 4,800 lm
CCT Selected to 3500K 4000K 5000K 3500K 4000K 5000K 3500K 4000K 5000K
Lumen 5,985 lm 6,300 lm 6,075 lm 5,244 lm 5,510 lm 5,320 lm 4,794 lm 5,066 lm 4,862 lm

* all models are wattage and 3500k/4000k/5000k CCT field-selectable.

Build Your Light

Family Model Mount Control Emergency Backup

FSWC
4D - 4ft, 45w/38w/34w Power & 3500/4000/5000k CCT selectable
[Blank] - Surface mount
[Blank] - no control
[Blank] - none emergency
AC - Aircraft cable
MCD - Bi-level microwave and daylight sensor
EM500 - 500 lumen, 90 mins
WBN - Bluetooth NLC node
EM1000 - 1,000 lumen, 90 mins
WBM - Bluetooth NLC node w/ microwave & daylight sensor
EM1800 - 1,800 lumen, 90 mins
EM2500 - 2,500 lumen, 90 mins

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.

Documents & Downloads

Specification & Sales Sheets
spec sheet

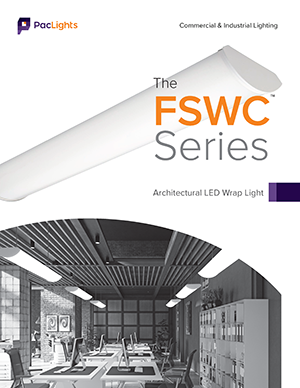

pdficonFSWC series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFSWC series Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTIES File
731st (Latest)FSWC-4D config. to 34W 3500K343500KDownload IES
741st (Latest)FSWC-4D config. to 34W 4000K344000KDownload IES
751st (Latest)FSWC-4D config. to 34W 5000K345000KDownload IES
761st (Latest)FSWC-4D config. to 38W 3500K383500KDownload IES
771st (Latest)FSWC-4D config. to 38W 4000K384000KDownload IES
781st (Latest)FSWC-4D config. to 38W 5000K385000KDownload IES
791st (Latest)FSWC-4D config. to 45W 3500K453500KDownload IES
801st (Latest)FSWC-4D config. to 45W 4000K454000KDownload IES
811st (Latest)FSWC-4D config. to 45W 5000K455000KDownload IES
GENERATIONSKUWATTAGECCTIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
215FSWC-4DS-NFSF215.1StandardDirect Linear Ambient Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
