Gen.2
LED Street Lights
LED Street Lights

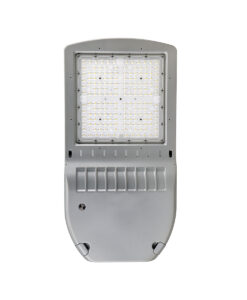

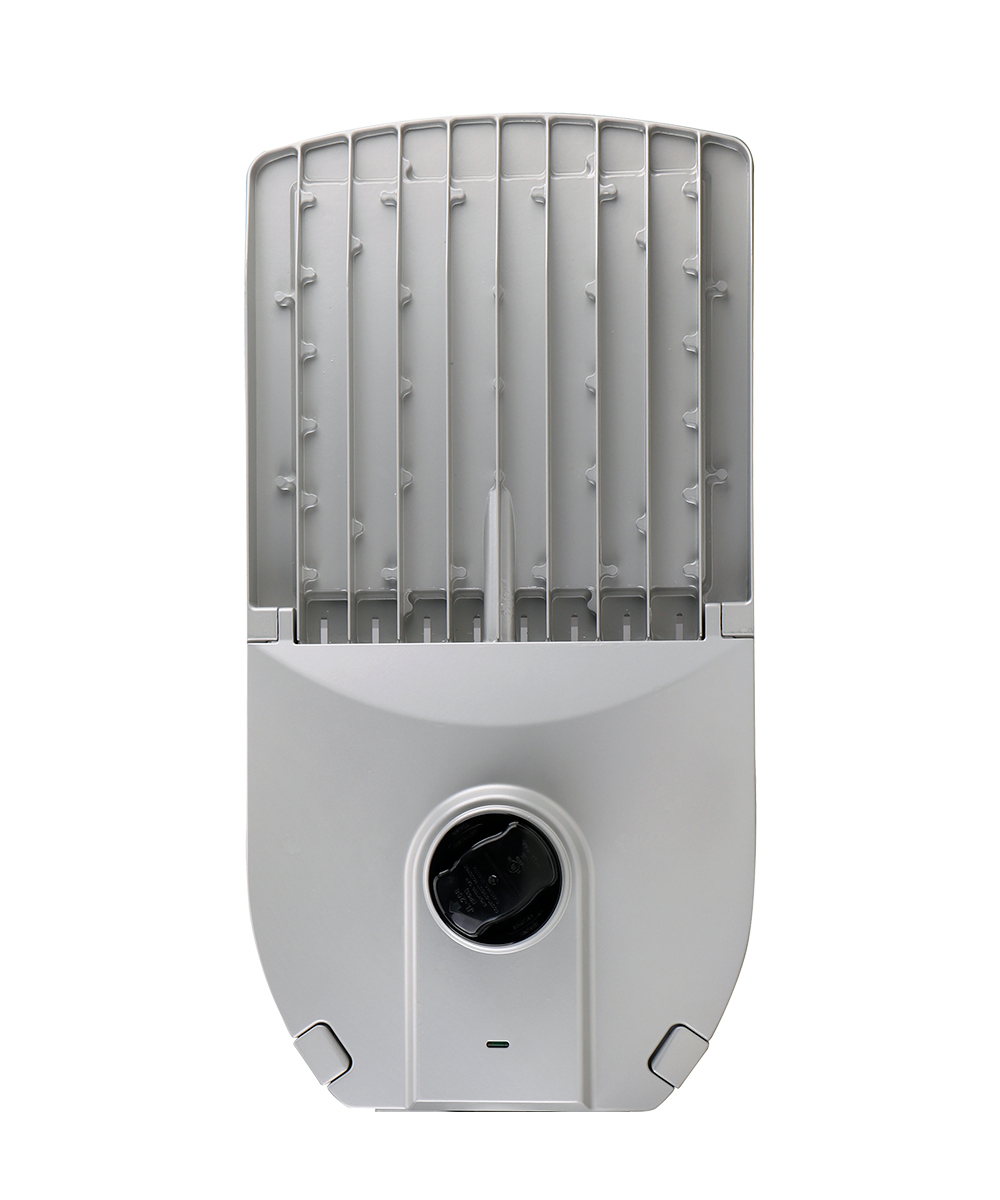

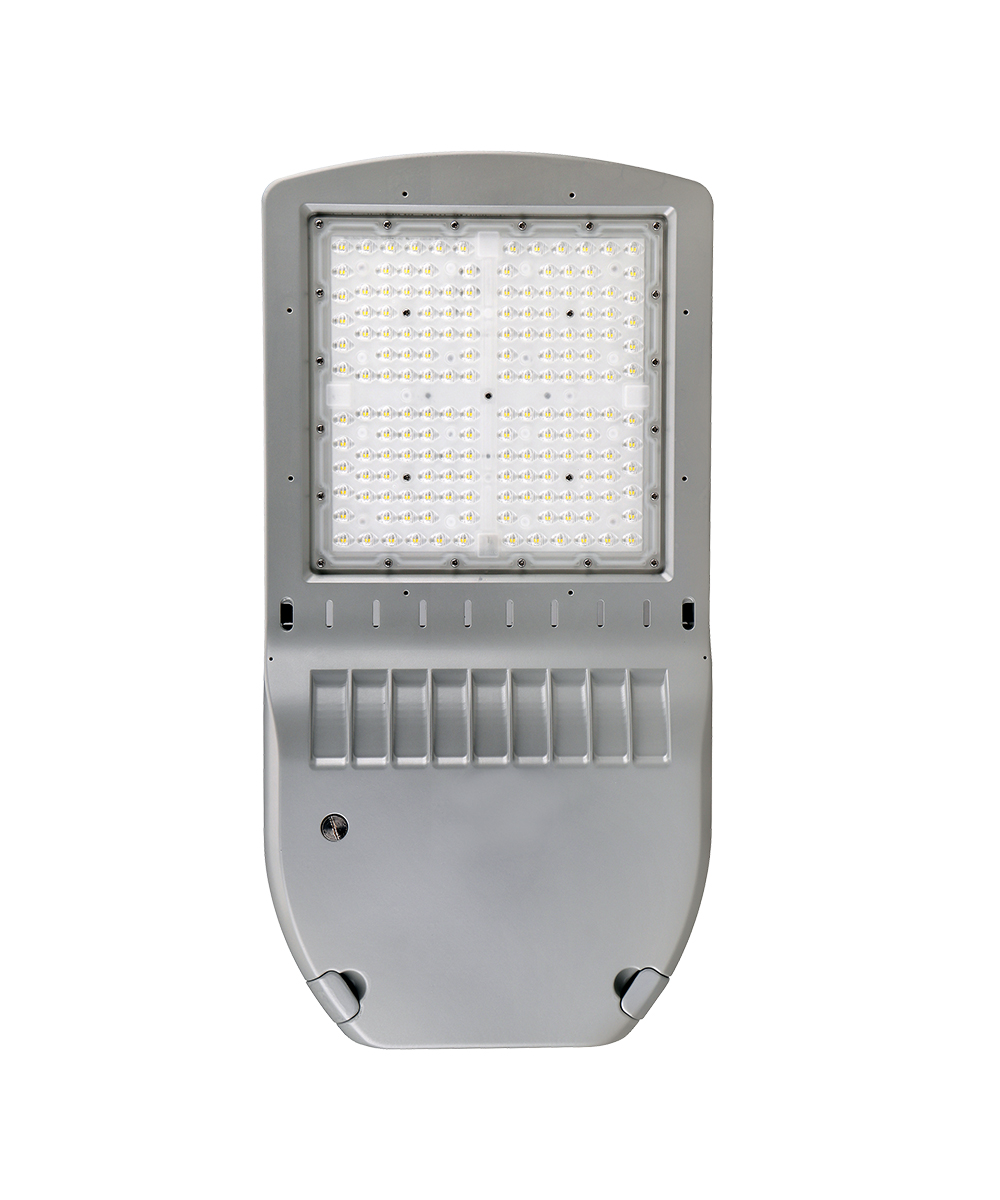

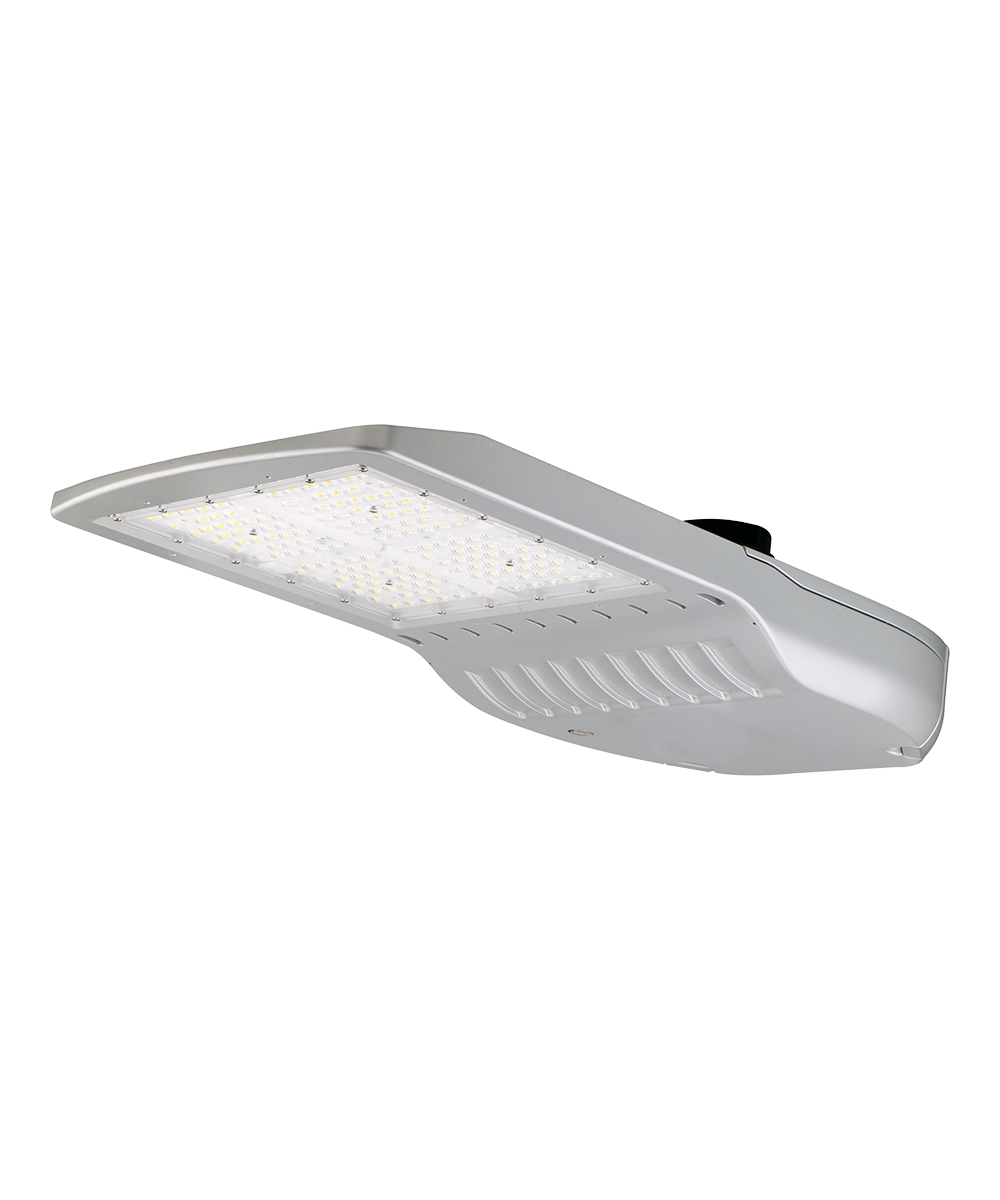

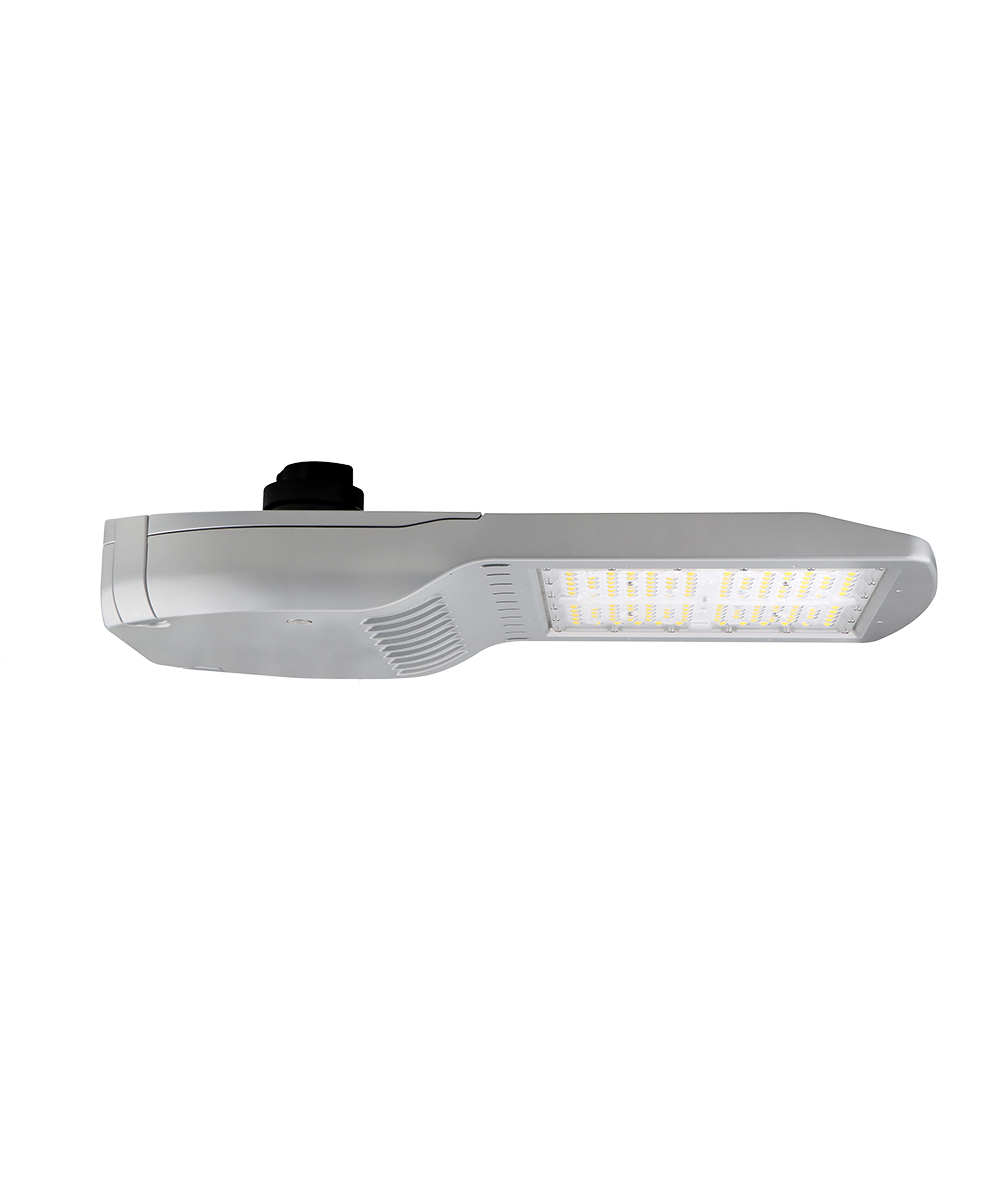

FSTA series LED Roadway Lights

The new generation of FSTA roadway lights delivers flexible lumen outputs with higher efficiency, long life and low maintenance. Optics integrated into the clear acrylic lens are designed for optimal IES type II roadway light distribution. This reliable unit has a 100,000 hour design life, significantly reducing maintenance needs and expense compared to traditional HID fixture. The FSTA LED Roadway Luminaire is optimized for customers requiring a LED solution for local, collector and major roadways.

– Limited Warranty: 5 years
– Efficacy: up to 144 LPW
– Lumen Output: 5,000 – 33,000 L
– Wattage: 40 – 240 W

UL Listed  DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate
From 5,000 lm to 33,000 lm
SKU: FSTA Categories: , Tag:

Features

Wattage Adjustable

Wattage/lumen can be adjusted before, during or after the installation for various application needs.

Secondary Surge Protection

Secondary surge protector is included, total surge protection: driver 6kV/4kV + Secondary 10kV.

Control Options

FSTA comes with ANSI C136.41 (7 pin NEMA) receptacle, and compatible with 3, 5 or 7 pin twist lock controls.

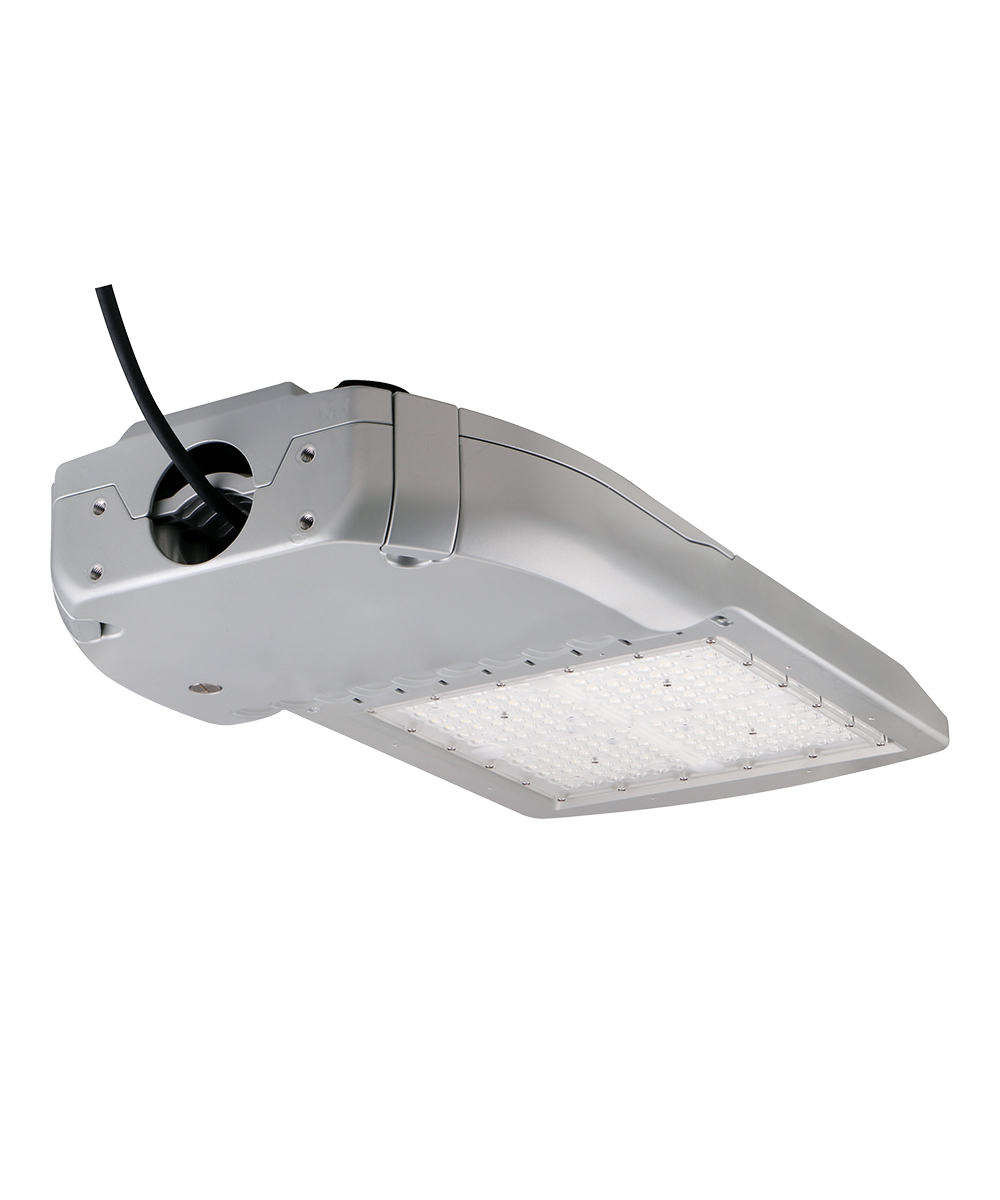

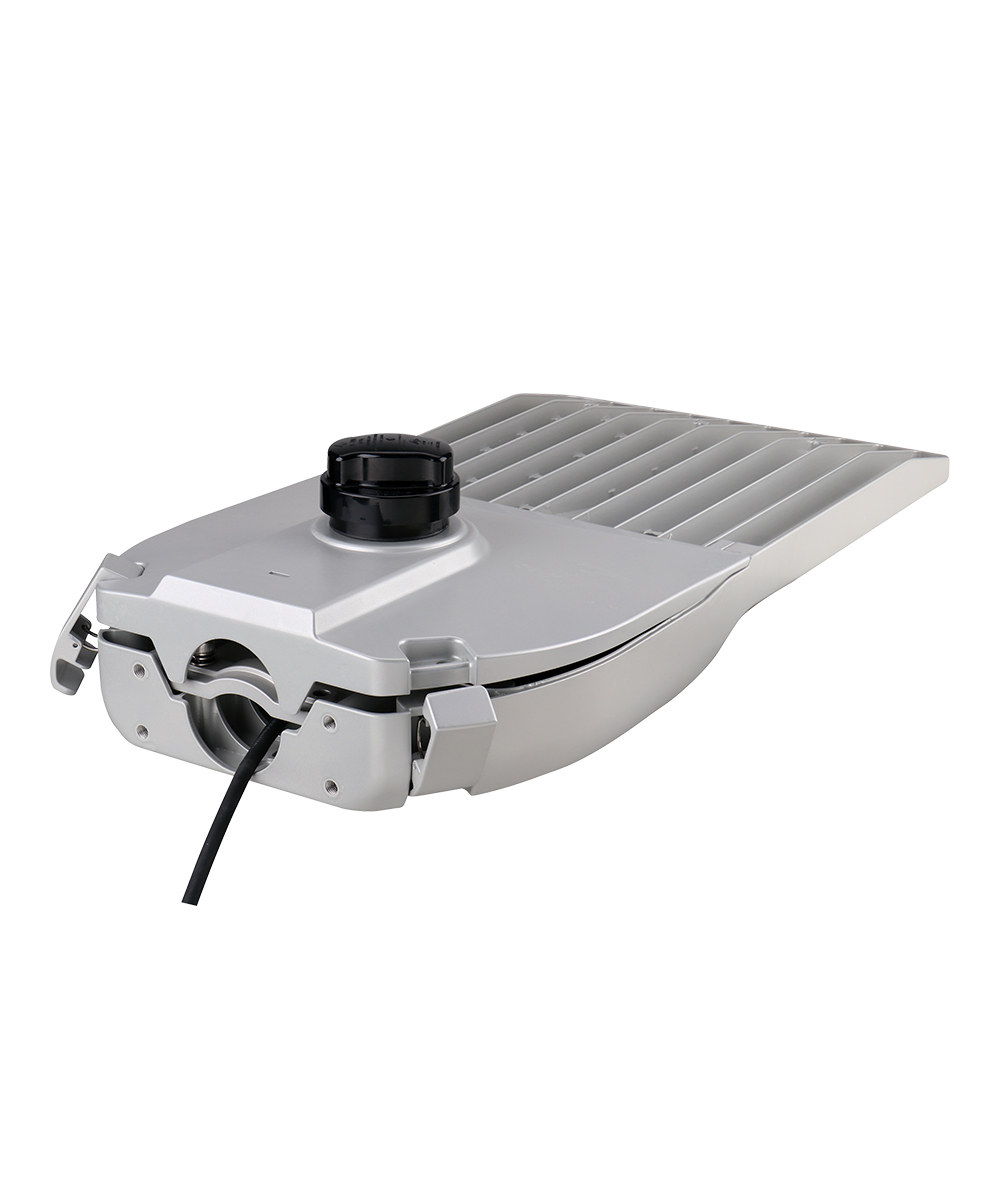

Easy Installation

Tool-less entry and wiring terminal block for easy installation.



Specs & Variations

MODEL CCT
Adjustable Wattage / Lumen 60W 50W 40W
FSTA/2-L-30 3000K 8,280 lm 6,900 lm 5,520 lm
FSTA/2-L-40 4000K 8,580 lm 7,150 lm 5,720 lm
FSTA/2-L-50 5000K 8,640 lm 7,200 lm 5,760 lm
Adjustable Wattage / Lumen 90W 75W 60W
FSTA/2-M-30 3000K 12,420 lm 10,350 lm 8,280 lm
FSTA/2-M-40 4000K 12,690 lm 10,575 lm 8,460 lm
FSTA/2-M-50 5000K 12,960 lm 10,800 lm 8,640 lm
Adjustable Wattage / Lumen 120W 100W 80W
FSTA/2-H-30 3000K 16,560 lm 13,800 lm 11,040 lm
FSTA/2-H-40 4000K 16,920 lm 14,100 lm 11,280 lm
FSTA/2-H-50 5000K 17,160 lm 14,300 lm 11,440 lm
Adjustable Wattage / Lumen 240W 200W 150W
FSTA/2-X-30 3000K 31,440 lm 26,200 lm 19,650 lm
FSTA/2-X-40 4000K 32,400 lm 27,000 lm 20,250 lm
FSTA/2-X-50 5000K 33,360 lm 27,800 lm 20,850 lm



Build Your Light

Family Model Color Temperature IES Distribution Options

FSTA/2
L - 60w/50w/40w wattage field-adjustable
30 - 3000K 1
T2 - Type II (roadway)
HV - 480v input upgrade 1
M - 90w/75w/60w wattage field-adjustable
40 - 4000K
GS - glare shield
H - 120w/100w/80w wattage field-adjustable
50 - 5000K 1
PS - photocell control
X - 240w/200w/150w wattage field-adjustable
DL - photocell +daylight harvesting
DM - photocell +daylight harvesting + midnight dimming
MS - motion control 1

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) available for special order



Case Studies



Documents & Downloads

Specification & Sales Sheets
spec sheet

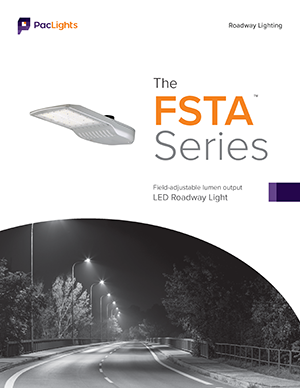

pdficonFSTA series (FSTA/2) Product Specification Sheet

Previous Generations:

(1st Generation)
pdficonFSTA series (FSTA) Product Spec Sheet

* specifications are subject to change without notice.

pdficonFSTA series (FSTA/2) Installation Guide

Previous Generations:

(1st Generation)
pdficonFSTA series (FSTA) Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTOPTICSIES File
12nd (Latest)FSTA/2-L-30-T2 config. to 40w403000KIES TYPE 2Download IES
22nd (Latest)FSTA/2-L-40-T2 config. to 40w404000KIES TYPE 2Download IES
32nd (Latest)FSTA/2-L-50-T2 config. to 40w405000KIES TYPE 2Download IES
42nd (Latest)FSTA/2-L-30-T2 config. to 50w503000KIES TYPE 2Download IES
52nd (Latest)FSTA/2-L-40-T2 config. to 50w504000KIES TYPE 2Download IES
62nd (Latest)FSTA/2-L-50-T2 config. to 50w505000KIES TYPE 2Download IES
72nd (Latest)FSTA/2-L-30-T2 config. to 60w603000KIES TYPE 2Download IES
82nd (Latest)FSTA/2-L-40-T2 config. to 60w604000KIES TYPE 2Download IES
92nd (Latest)FSTA/2-L-50-T2 config. to 60w605000KIES TYPE 2Download IES
102nd (Latest)FSTA/2-M-30-T2 config. to 60w603000KIES TYPE 2Download IES
GENERATIONSKUWATTAGECCTOPTICSIES File

*IES files might not cover all wattage, CCT or Light Distribution options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
213FSTA/2-H-30-T2-abcdeSPS-54KYC75.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
214FSTA/2-H-40-T2-abcdeSPS-5FV9HE5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
215FSTA/2-H-50-T2-abcdeSPS-CXA97T5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
216FSTA/2-L-30-T2-abcdeSPS-LQ54NU5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
217FSTA/2-L-40-T2-abcdeSPS-N4DMR85.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
218FSTA/2-L-50-T2-abcdeSPS-02ZF9I5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
219FSTA/2-M-30-T2-abcdeSPS-QEJ8GK5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
220FSTA/2-M-40-T2-abcdeSPS-XQTGOZ5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
221FSTA/2-M-50-T2-abcdeSPS-K47FSE5.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
222FSTA/2-X-30-T2-abcdeSPS-XNUMR15.1PremiumOutdoor Pole/Arm-Mounted Area and Roadway Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
