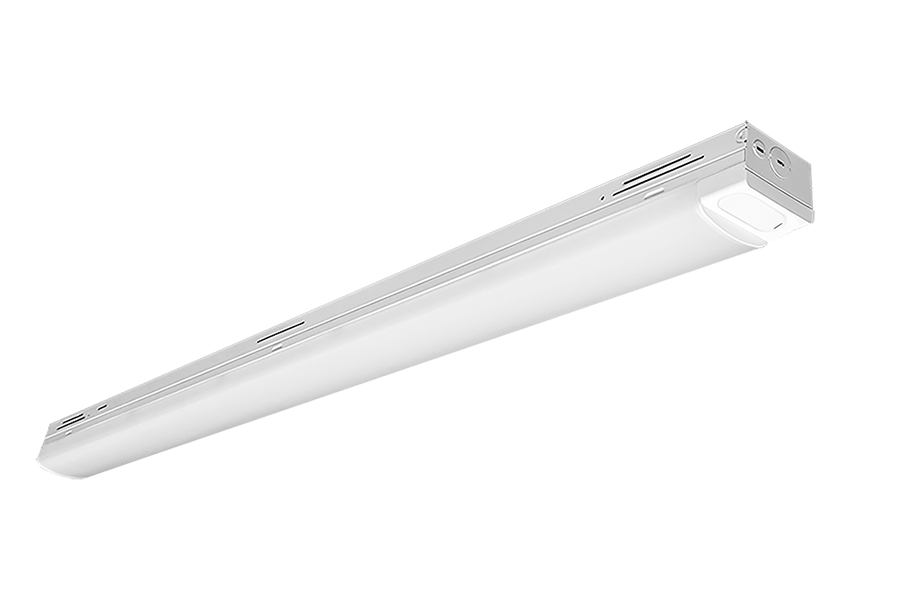

Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
CCT and Lumen Adjustable
Trim lumen/wattage output precisely by precentage, and select color temperature (3000/3500/4000/5000K) before, during, or after the installation with the help of a compatible NLC iOS/Android App.
Bluetooth Mesh Networked
Bluetooth mesh networked control module integrated and Enabled. FSLN works out-of-box with compatible networked lighting control (NLC) system. Reduces labor cost on wiring and installing external controls.

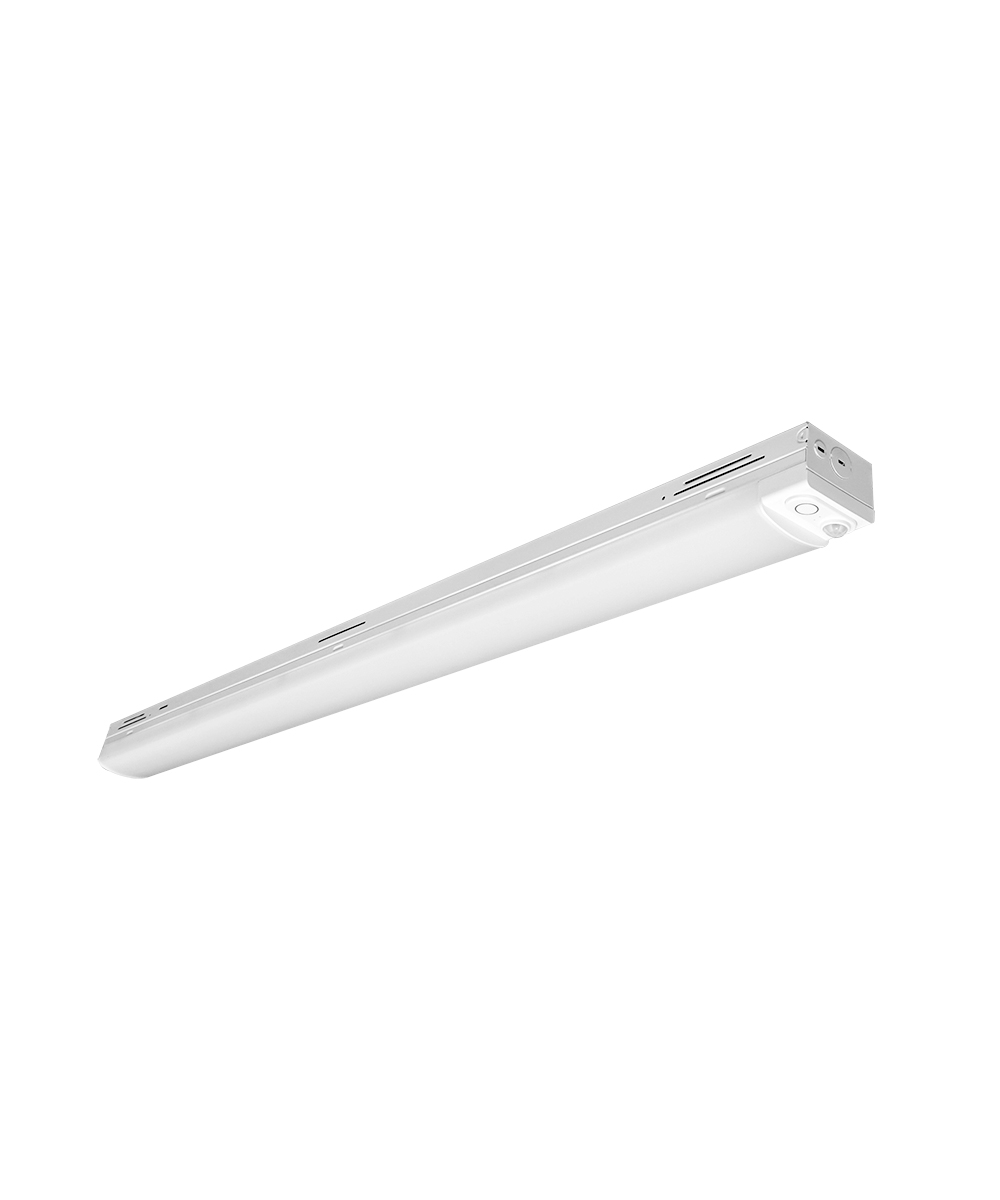

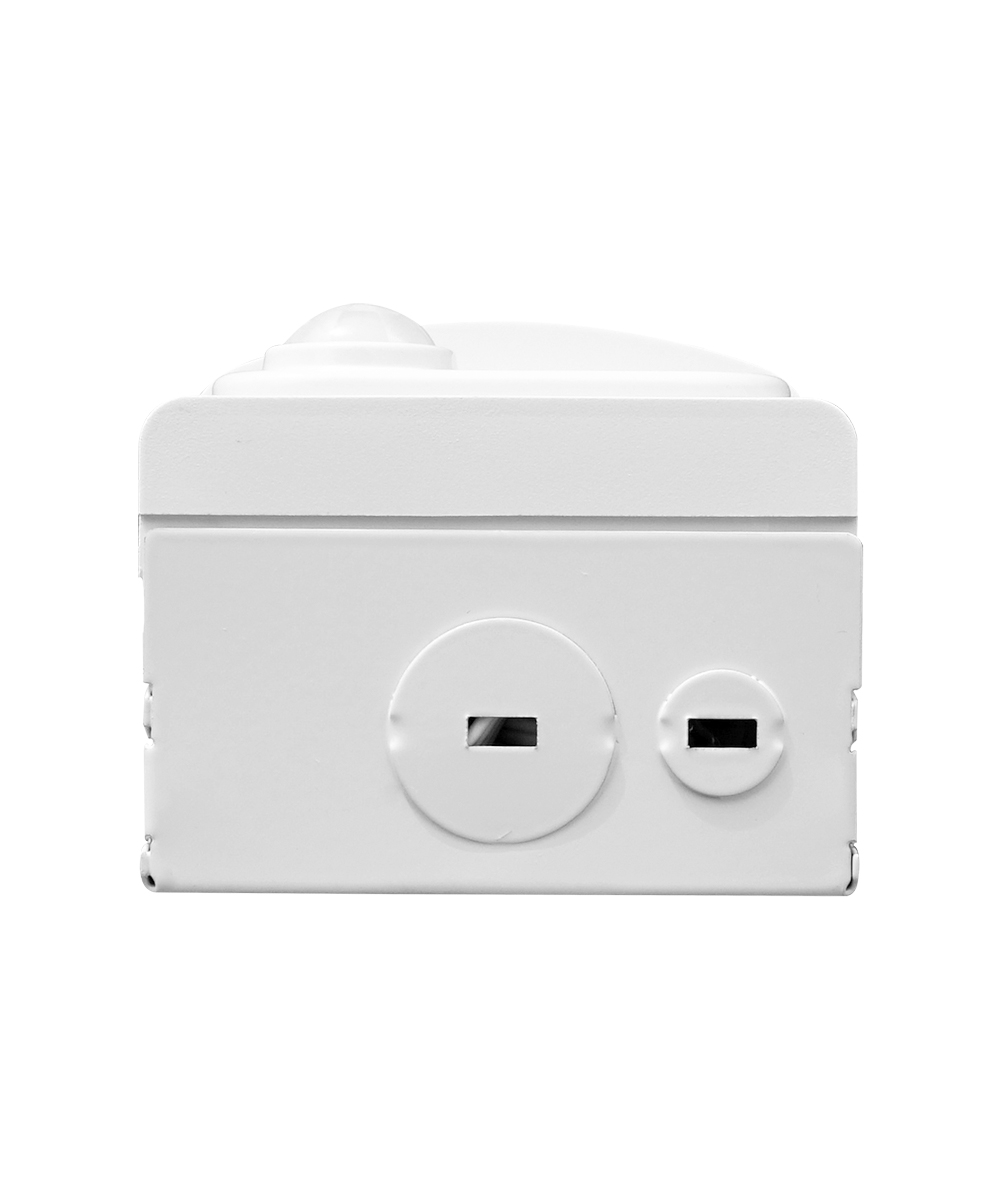

Optional Sensor
Networked sensor will share the detected data within the connected network of lights. Maximizes energy savings and is simpler than ever by combining an occupancy sensor, a timer, customizable three-step dimming switches and a photo sensor to detect the amount of ambient light surrounding the fixture.
NETWORKED LIGHTING CONTROL
ENABLED
Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.
Specs & Variations
| FSLN - 2D25 | 25W | 2' | ||
| CCT Adjustable | 3000K | 3500K | 4000K | 5000K |
| Lumen Trimmable | 3,225 lm | 3,250 lm | 3,275 lm | 3,300 lm |
| FSLN - 4D45 | 45W | 4' | ||
| CCT Adjustable | 3000K | 3500K | 4000K | 5000K |
| Lumen Trimmable | 5,805 lm | 5,850 lm | 5,895 lm | 5,940 lm |
| FSLN - 8D90 | 90W | 8' | ||
| CCT Adjustable | 3000K | 3500K | 4000K | 5000K |
| Lumen Trimmable | 11,610 lm | 11,700 lm | 11,790 lm | 11,880 lm |
* all models are lumen trimmable down to 50%, and 3000k/3500k/4000k/5000k CCT app-adjustable.
Build Your Light
| Family | Model | Optional Function | Optional Addons |
FSLN |  | | |
2D25 - 2ft, 25w Trimmable, 3000/3500/4000/5000k CCT adjustable | EM - Emergency battery backup | VH - V-hook & chain | |
4D45 - 4ft, 45w Trimmable, 3000/3500/4000/5000k CCT adjustable | WBP - PIR and daylight sensor | CM - Suspended cable | |
8D90 - 8ft, 90w Trimmable, 3000/3500/4000/5000k CCT adjustable |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Documents & Downloads
  FSLN series Product Specification Sheet |
* specifications are subject to change without notice.
FSLN series Installation Guide
* installation instructions are subject to change without notice.
| wdt_ID | GENERATION | SKU | OUTPUT TRIM | CCT | IES File |
|---|---|---|---|---|---|
| 1 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 100% output | 100% | 3000K | Download IES |
| 2 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 90% output | 90% | 3000K | Download IES |
| 3 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 80% output | 80% | 3000K | Download IES |
| 4 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 70% output | 70% | 3000K | Download IES |
| 5 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 60% output | 60% | 3000K | Download IES |
| 6 | 1st (Latest) | FSLN-2D25 config. to 3000K, trim to 50% output | 50% | 3000K | Download IES |
| 7 | 1st (Latest) | FSLN-2D25 config. to 3500K, trim to 100% output | 100% | 3500K | Download IES |
| 8 | 1st (Latest) | FSLN-2D25 config. to 3500K, trim to 90% output | 90% | 3500K | Download IES |
| 9 | 1st (Latest) | FSLN-2D25 config. to 3500K, trim to 80% output | 80% | 3500K | Download IES |
| 10 | 1st (Latest) | FSLN-2D25 config. to 3500K, trim to 70% output | 70% | 3500K | Download IES |
| GENERATION | SKU | OUTPUT TRIM | CCT | IES File |
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 216 | FSLN-8D90 CCT 830/835/840/850 NLC - WBP,EM,Blank,Both | S-5S8CPA | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 217 | FSLN-4D45 CCT 830/835/840/850 NLC - WBP,EM,Blank,Both | S-ALNUWJ | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 218 | FSLN-2D25 CCT 830/835/840/850 NLC - WBP,EM,Blank,Both | S-BYJ136 | 5.1 | Standard | Direct Linear Ambient Luminaires |
