Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
Power and Color Selectable
Choose wattage and/or color temperature (3000K/4000/5000/5700/6500K) before, during, or after the installation with integrated dip switch.
Control Options
Easier than ever before, factory installed controls enables a smooth installation process, providing options for Bi-Level Microwave & Daylight Dimming control or Networked Lighting controls. This streamlined approach ensures maximum energy savings.

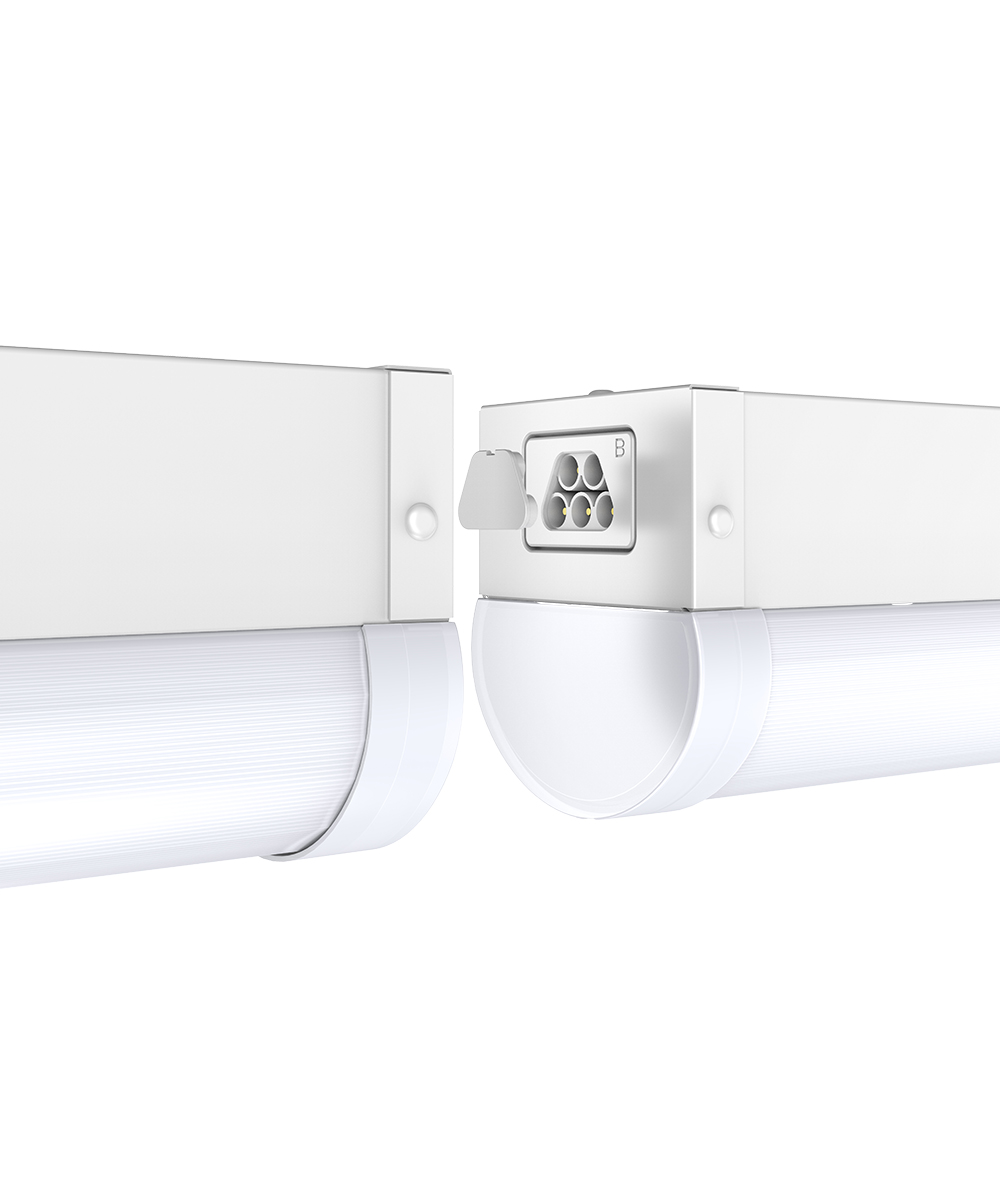

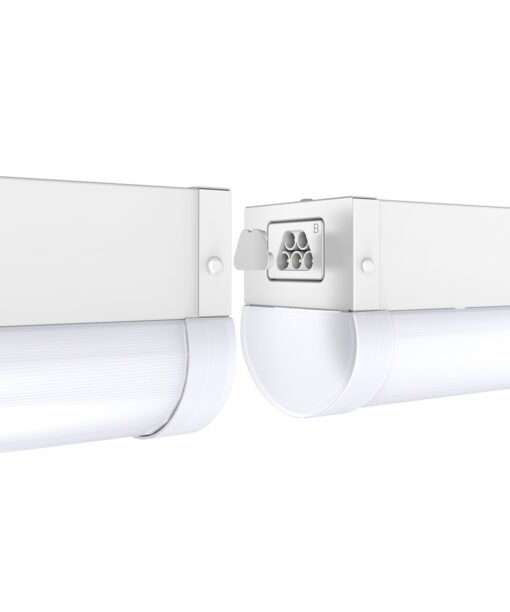

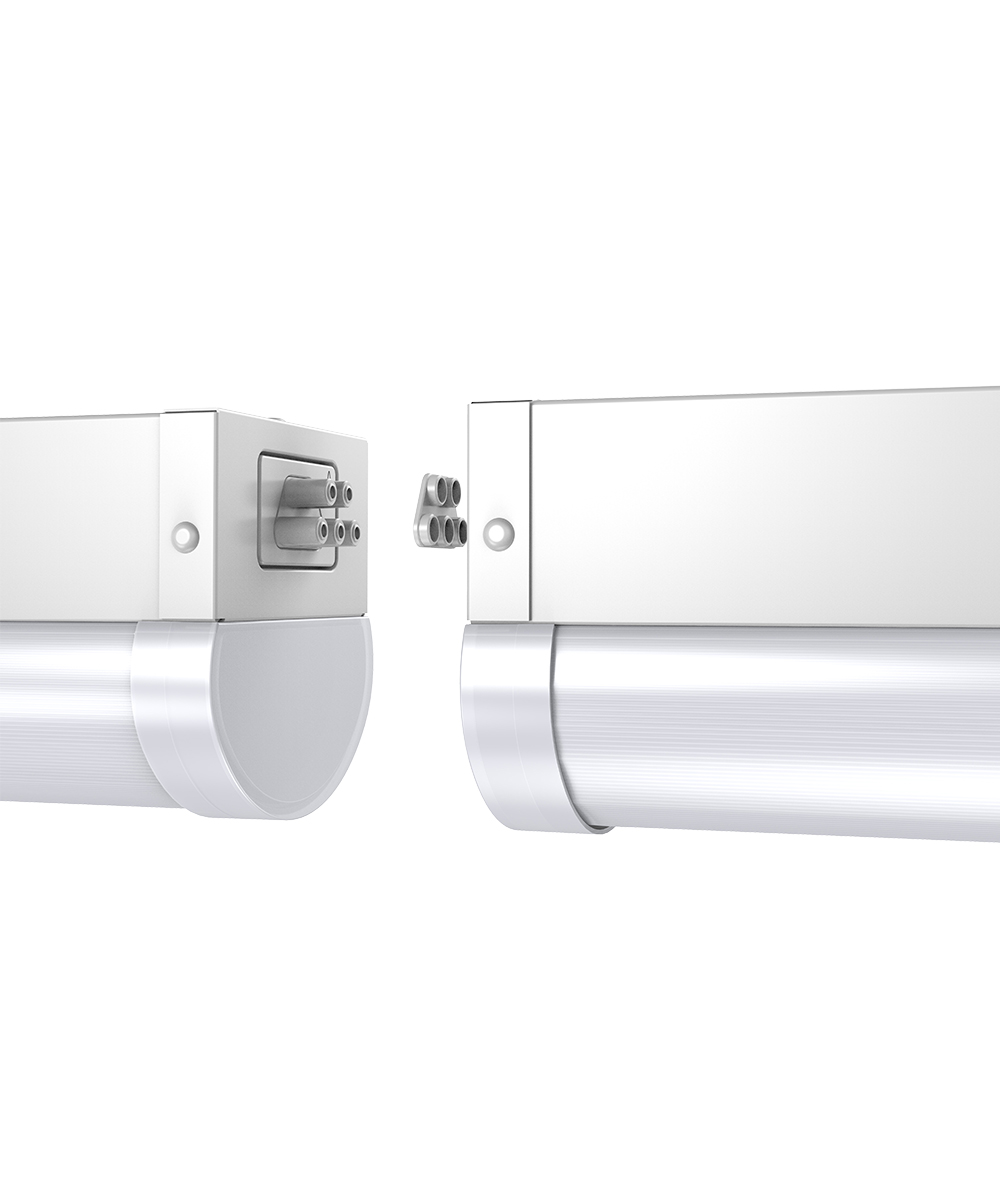

SnapLink™ Connectors
Equipped with a male connector on one end and a female connector on the other, allowing for continuous runs without rewiring.
NETWORKED LIGHTING CONTROL
OPTIONS AVAILABLE
Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.
Specs & Variations
| MODEL | ||||||||||
| FSLA/3-2D | Wattage | 25W | 20W | 15W | ||||||
| CCT | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | |
| Lumen | 3,375 lm | 3,450 lm | 3,500 lm | 2,700 lm | 2,760 lm | 2,800 lm | 2,025 lm | 2,070 lm | 2,100 lm | |
| FSLA/3-4D | Wattage | 40W | 30W | 20W | ||||||
| CCT | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | |
| Lumen | 5,400 lm | 5,520 lm | 5,600 lm | 4,050 lm | 4,140 lm | 4,200 lm | 2,700 lm | 2,760 lm | 2,800 lm | |
| FSLA/3-8D | Wattage | 80W | 70W | 60W | ||||||
| CCT | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | 3000K | 4000K | 5000K | |
| Lumen | 10,800 lm | 11,040 lm | 11,200 lm | 9,450 lm | 9,660 lm | 9,800 lm | 8,100 lm | 8,280 lm | 8,400 lm |
* all models are wattage/lumen field-adjustable & 3000k/4000k/5000/5700/6500K CCT field-adjustable.
Build Your Light
| Family | Model | Control | Optional Adds-on |
FSLA/3 |  | | |
2D - 2 ft, 25w/20w/15w wattage/lumen & 3000/4000/5000/5700/6500K CCT Adjustable | MC - Bi-level occupancy and daylight control | EMxxxx - Emergency Battery Backup (see spec sheet) | |
4D - 4 ft, 40w/30w/20w wattage/lumen & 3000/4000/5000/5700/6500K CCT Adjustable | WBN - Networked Lighting Control | AC - Aircraft cable suspended kit | |
8D - 8 ft, 80w/70w/60w wattage/lumen & 3000/4000/5000/5700/6500K CCT Adjustable | WBP - Networked Lighting Control w/ PIR Sensor | WG - Wire guard | |
CSM - Connecting Bracket for surface mount | |||
CSP - Connecting Bracket for suspended mount |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Documents & Downloads

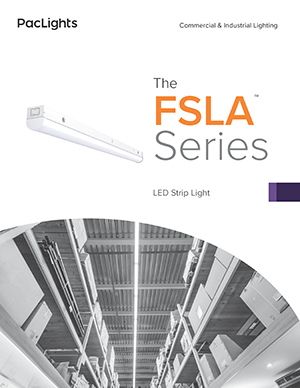

  FSLA series (FSLA/3) Product Specification Sheet |
Previous Generations:
(2nd Generation) FSLA series 2nd Gen. (FSLA/2) Product Specification Sheet
(1st Generation) FSLA series 1st Gen. Product Spec Sheet
* specifications are subject to change without notice.
FSLA series (FSLA/3) Installation Guide
Previous Generations:
(2nd Generation) FSLA series (FSLA/2) Installation Guide
(1st Generation) FSLA series (FSLA) Installation Guide
* installation instructions are subject to change without notice.
| wdt_ID | GENERATION | SKU | WATTAGE | CCT | IES File |
|---|---|---|---|---|---|
| 73 | 3rd (Latest) | FSLA/3-2D-15-3000 | 15 | 3000K | Download IES |
| 74 | 3rd (Latest) | FSLA/3-2D-15-4000 | 15 | 4000K | Download IES |
| 75 | 3rd (Latest) | FSLA/3-2D-15-5000 | 15 | 5000K | Download IES |
| 76 | 3rd (Latest) | FSLA/3-2D-15-5700 | 15 | 5700K | Download IES |
| 77 | 3rd (Latest) | FSLA/3-2D-15-6500 | 15 | 6500K | Download IES |
| 78 | 3rd (Latest) | FSLA/3-2D-20-3000 | 20 | 3000K | Download IES |
| 79 | 3rd (Latest) | FSLA/3-2D-20-4000 | 20 | 4000K | Download IES |
| 80 | 3rd (Latest) | FSLA/3-2D-20-5000 | 20 | 5000K | Download IES |
| 81 | 3rd (Latest) | FSLA/3-2D-20-5700 | 20 | 5700K | Download IES |
| 82 | 3rd (Latest) | FSLA/3-2D-20-6500 | 20 | 6500K | Download IES |
| GENERATION | SKU | WATTAGE | CCT | IES File |
*IES files might not cover all options
| wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
|---|---|---|---|---|---|
| 213 | FSLA/3-2D-X-TbcefBB1 | S-HD6JJ2 | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 214 | FSLA/3-2D-X-TbcefBB1 | S-Z5JXTV | 5.1 | Premium | Stairwell and Passageway Luminaires |
| 215 | FSLA/3-4D-X-TbcefBB1 | S-1M4PDJ | 5.1 | Standard | Low-Bay Luminaires for Commercial and Industrial Buildings |
| 216 | FSLA/3-4D-X-TbcefBB1 | S-GX1JC5 | 5.1 | Premium | Stairwell and Passageway Luminaires |
| 217 | FSLA/3-4D-X-TbcefBB1 | S-SM55FT | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 218 | FSLA/3-8D-X-TbcefBL1 | S-2MKPDS | 5.1 | Premium | Stairwell and Passageway Luminaires |
| 219 | FSLA/3-8D-X-TbcefBL1 | S-D6JYQK | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 220 | FSLA/3-8D-X-TbcefBL1 | S-ZDZJBD | 5.1 | Standard | High-Bay Luminaires for Commercial and Industrial Buildings |
| 221 | FSLA/2-4D-40/28/22-835/840/850-(C1 or EM or Blank) (A3L+B3) | PLAQ40WVZT5V | 5.1 | Standard | Direct Linear Ambient Luminaires |
| 222 | FSLA/2-8D-65/60/55-835/840/850 (A3L+B3) | PL9ISU2QXM02 | 5.1 | Standard | Direct Linear Ambient Luminaires |
