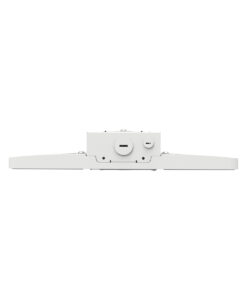

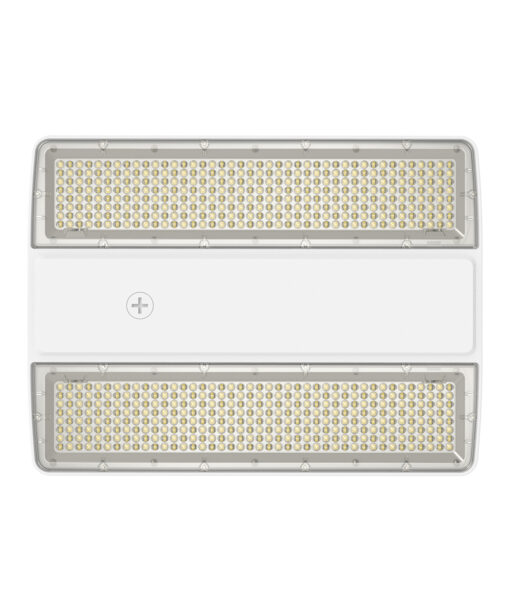

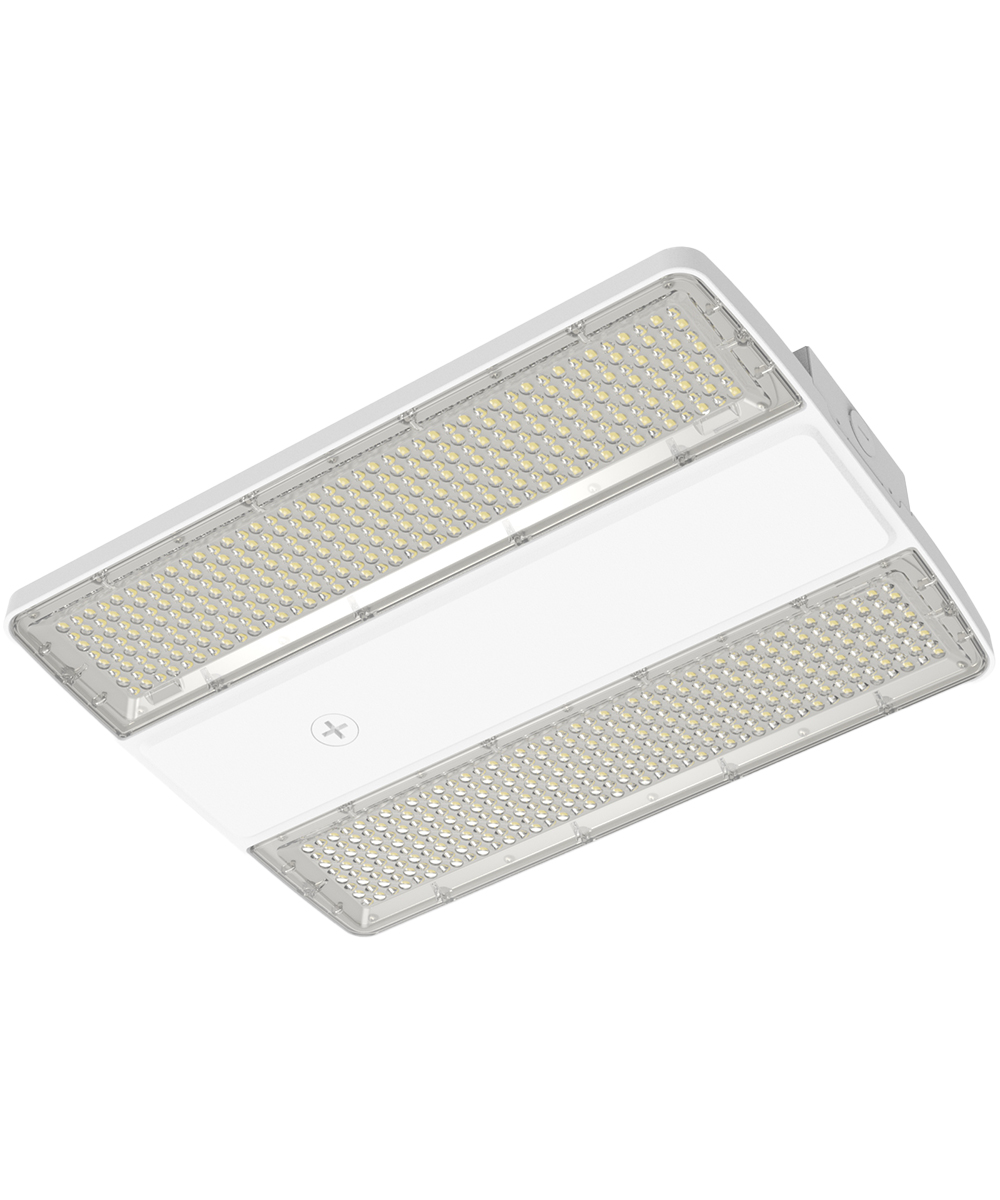

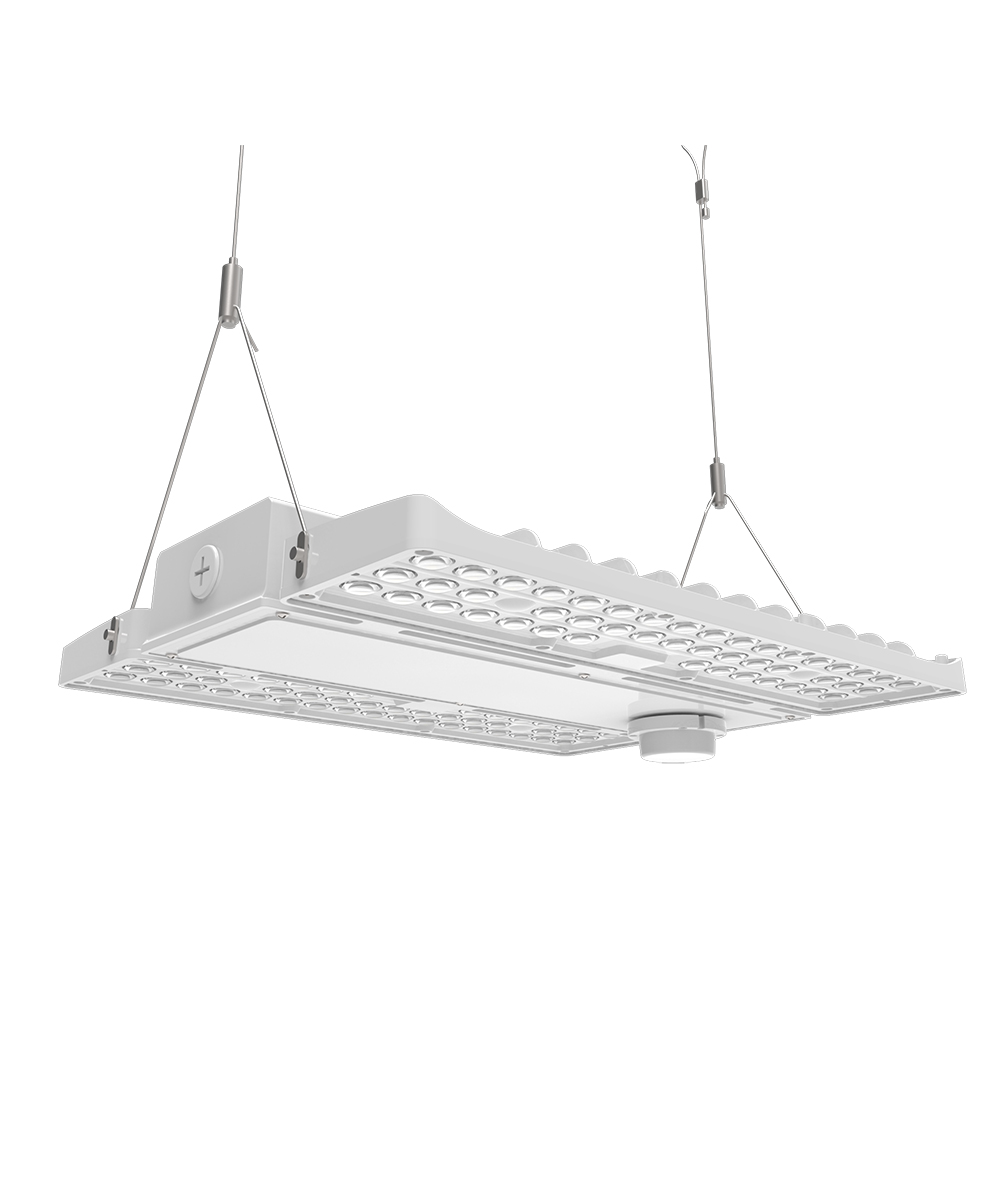

FLHQ series LED Linear High Bay
FLHQ series LED Linear High Bay - Image 2
FLHQ series LED Linear High Bay - Image 3
FLHQ series LED Linear High Bay - Image 4
FLHQ series LED Linear High Bay - Image 5
FLHQ series LED Linear High Bay - Image 6
FLHQ series LED Linear High Bay - Image 7

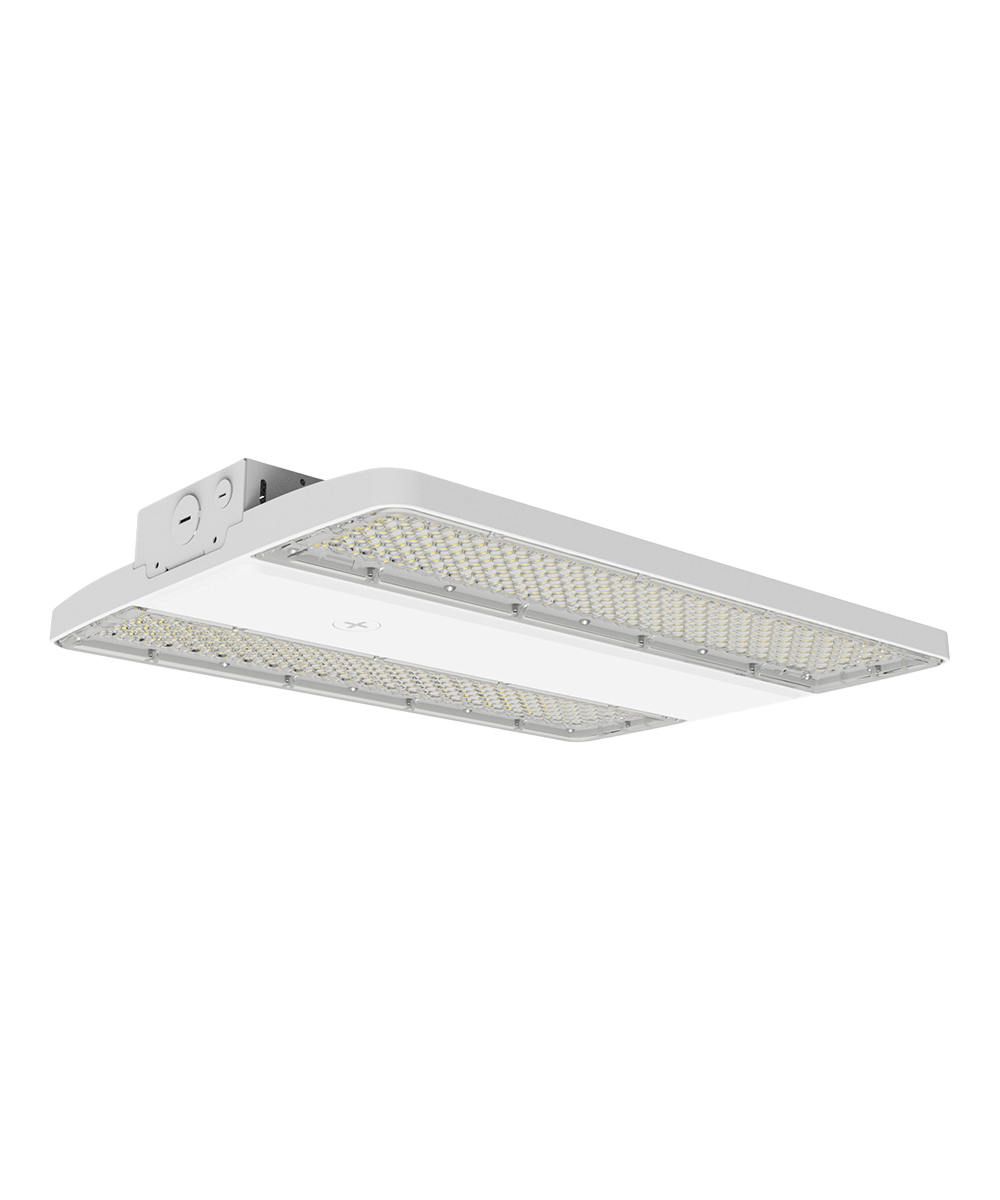

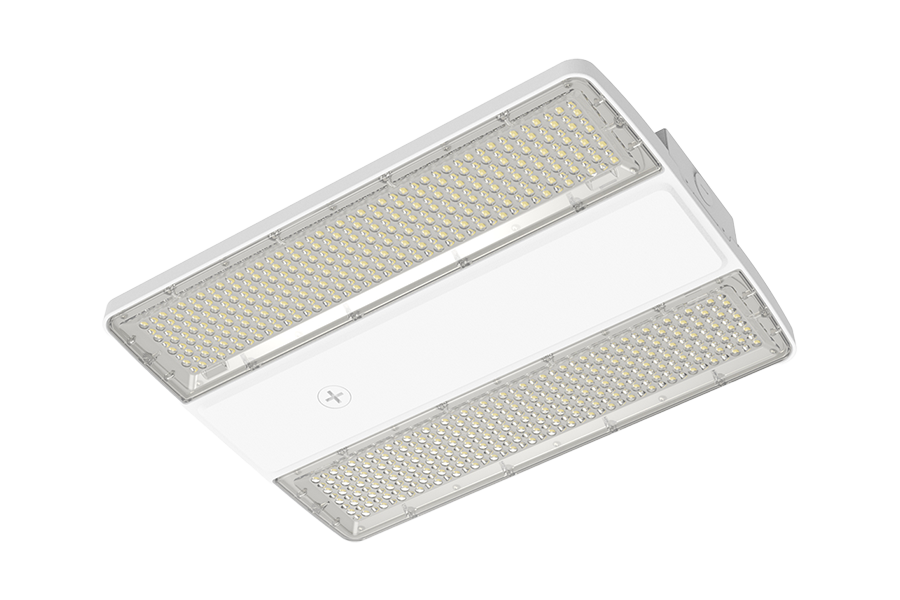

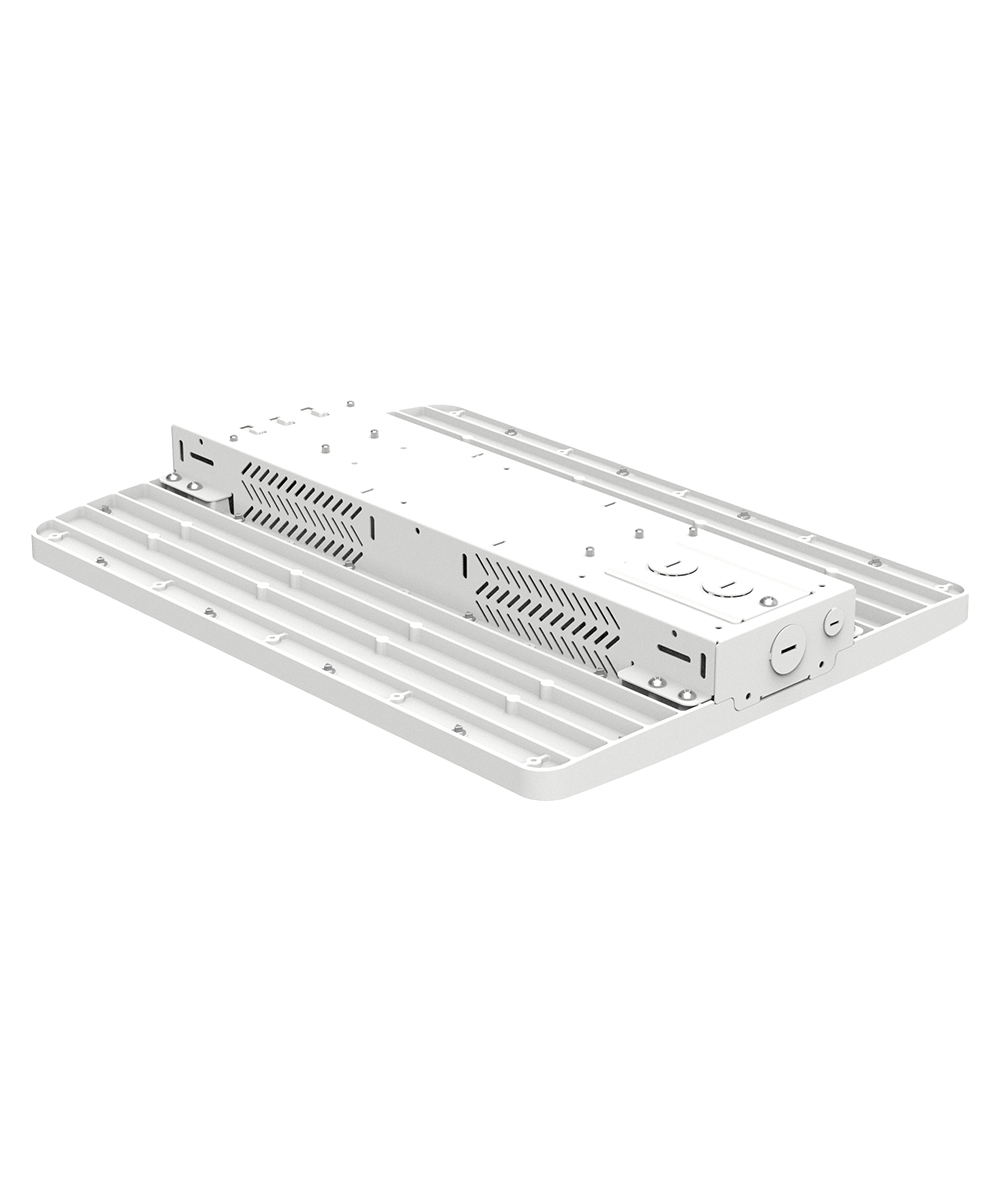

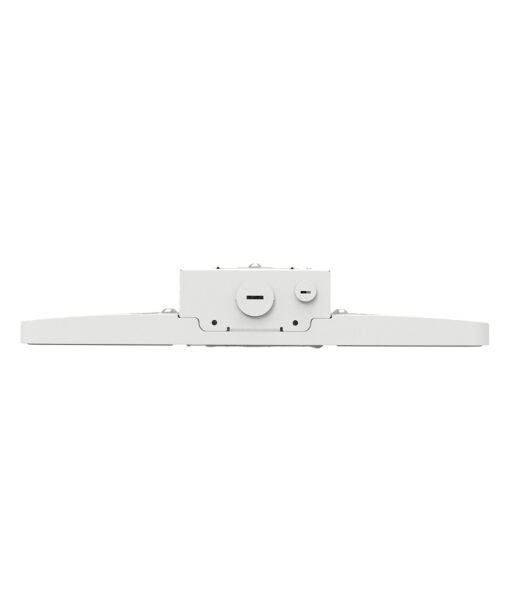

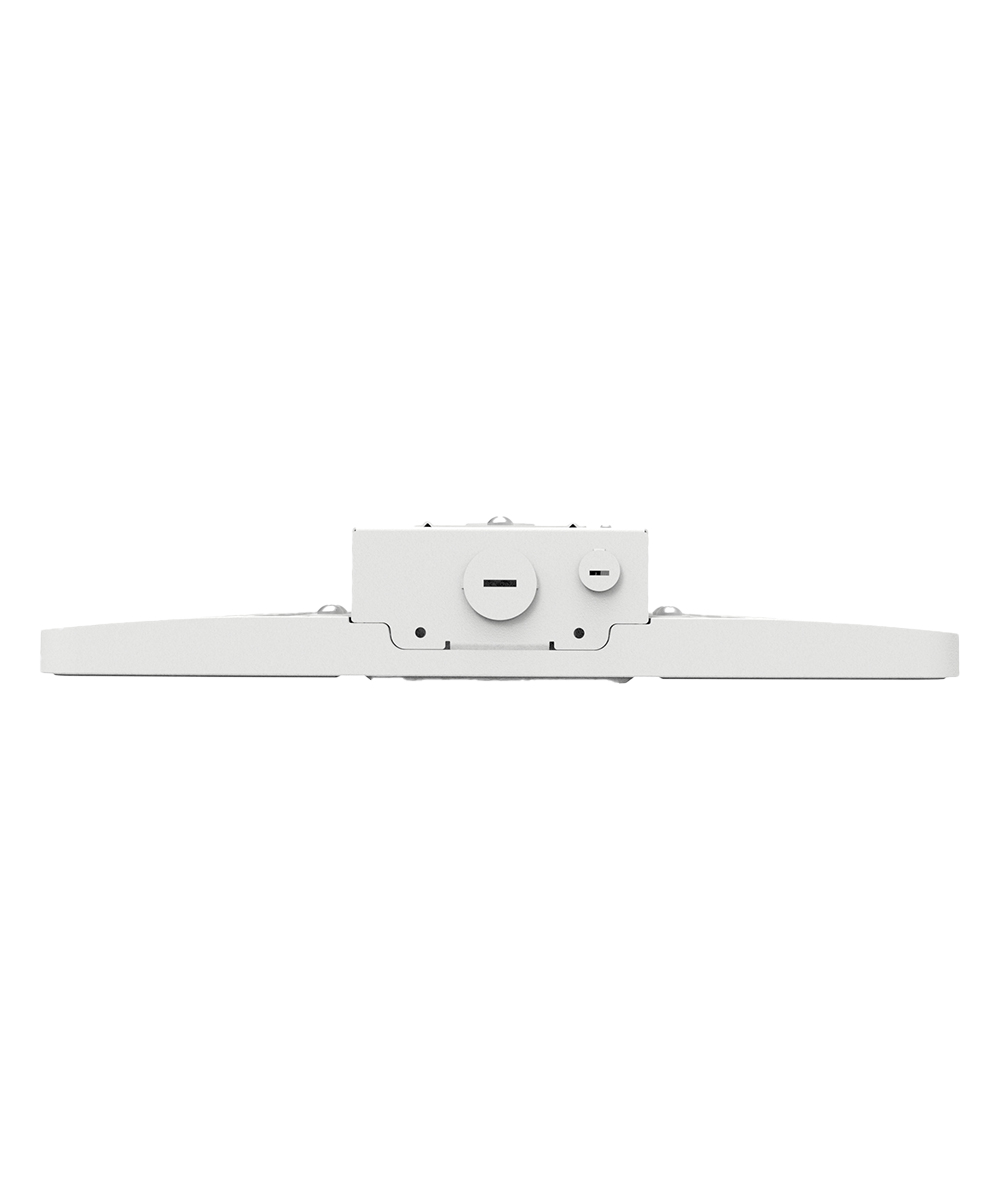

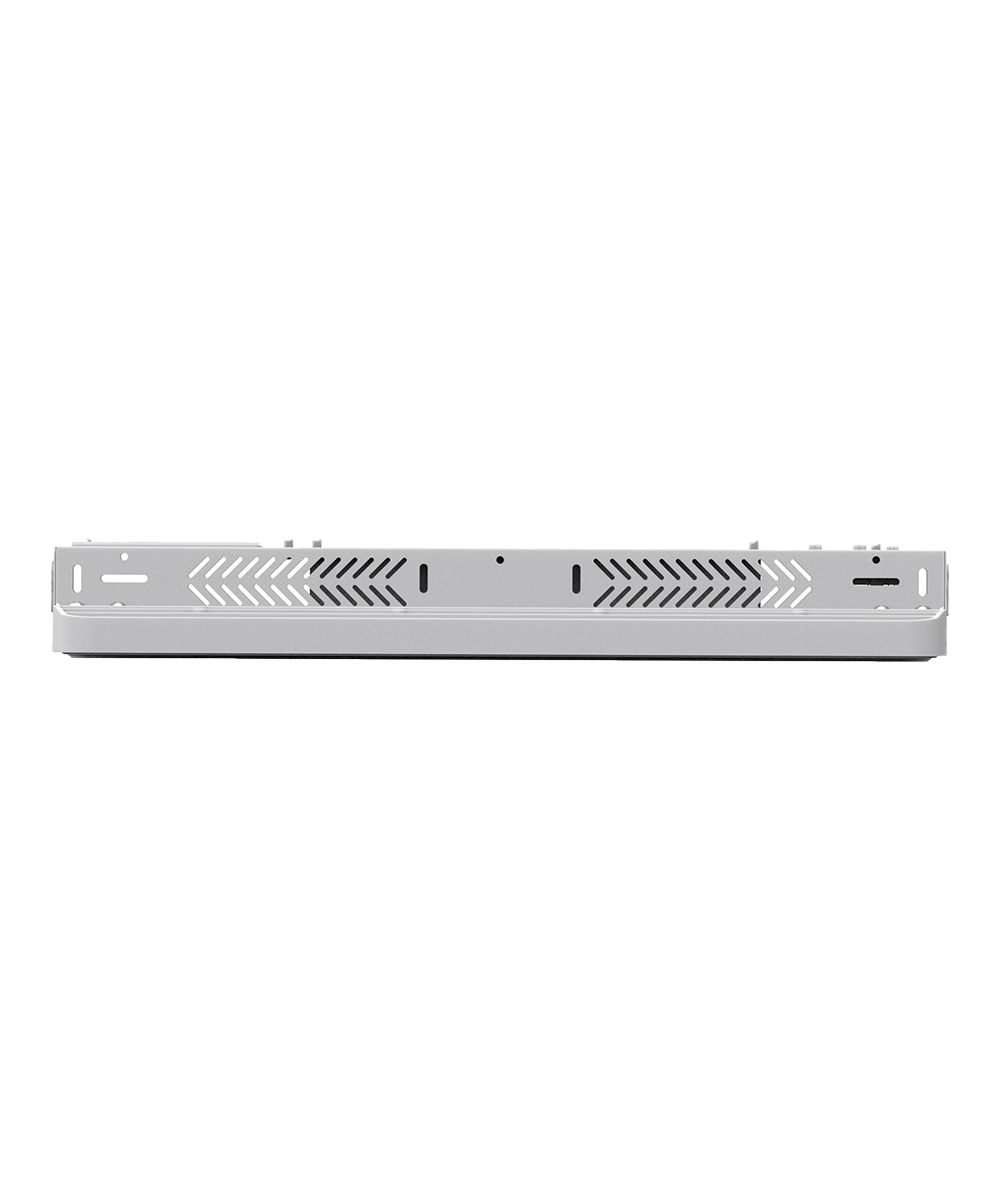

FLHQ series LED Linear High Bay

The 2nd generation FLHQ series LED Linear High Bay luminaires deliver high performance with field-adjustable color and power, as well as BeamFlex™ selectable beam angles for versatile warehouse lighting applications. Designed for easy integration, the FLHQ series is controls-ready, allowing lighting controls to be installed on-site within seconds. With a compact design that maintains exceptional performance, the FLHQ series reduces installation time and labor costs.

– BeamFlex™ Beam Angle Selectable: Standard, Aisle, Narrow Aisle
– Color Selectable: 3500K, 4000K, 5000K
– Power Selectable: 160/130/105W; 240/210/180W, 320/295/255W
– Lumen Output: 15,000 – 46,000 L
– Control Options: Motion, Daylight and Network controls

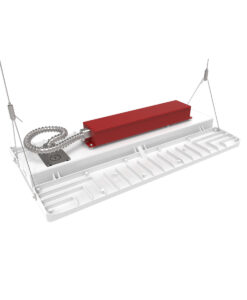

– Emergency Battery Backup options
– Multiple Mounting Options, optional Wire Guard

UL Listed DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 15,000 to 46,000 Lumen
SKU: FLHQ Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Power/Color Selectable

Choose light color and power output before, during, or after installation with dip-switches.

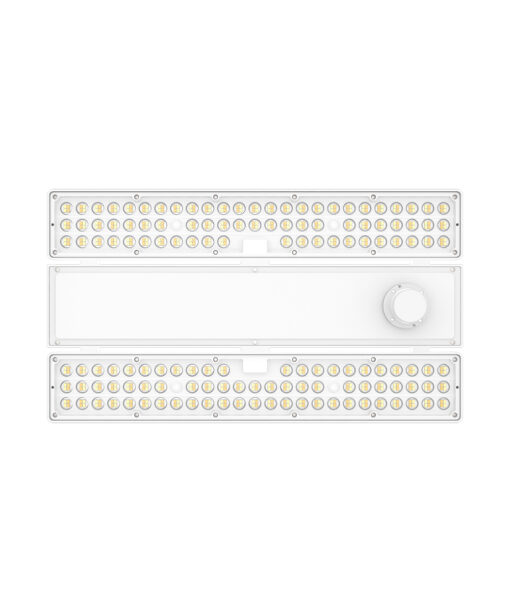

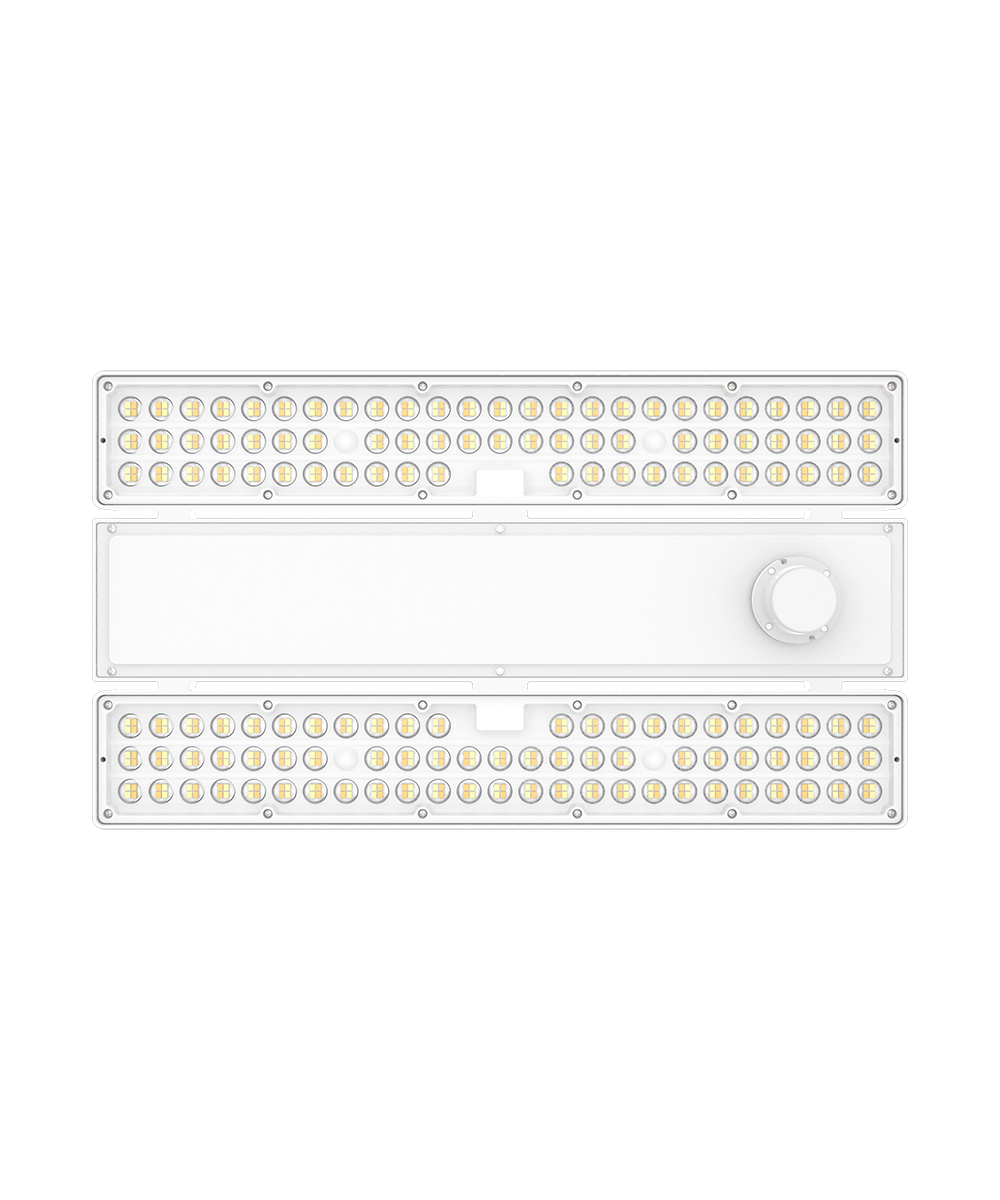

BeamFlex™

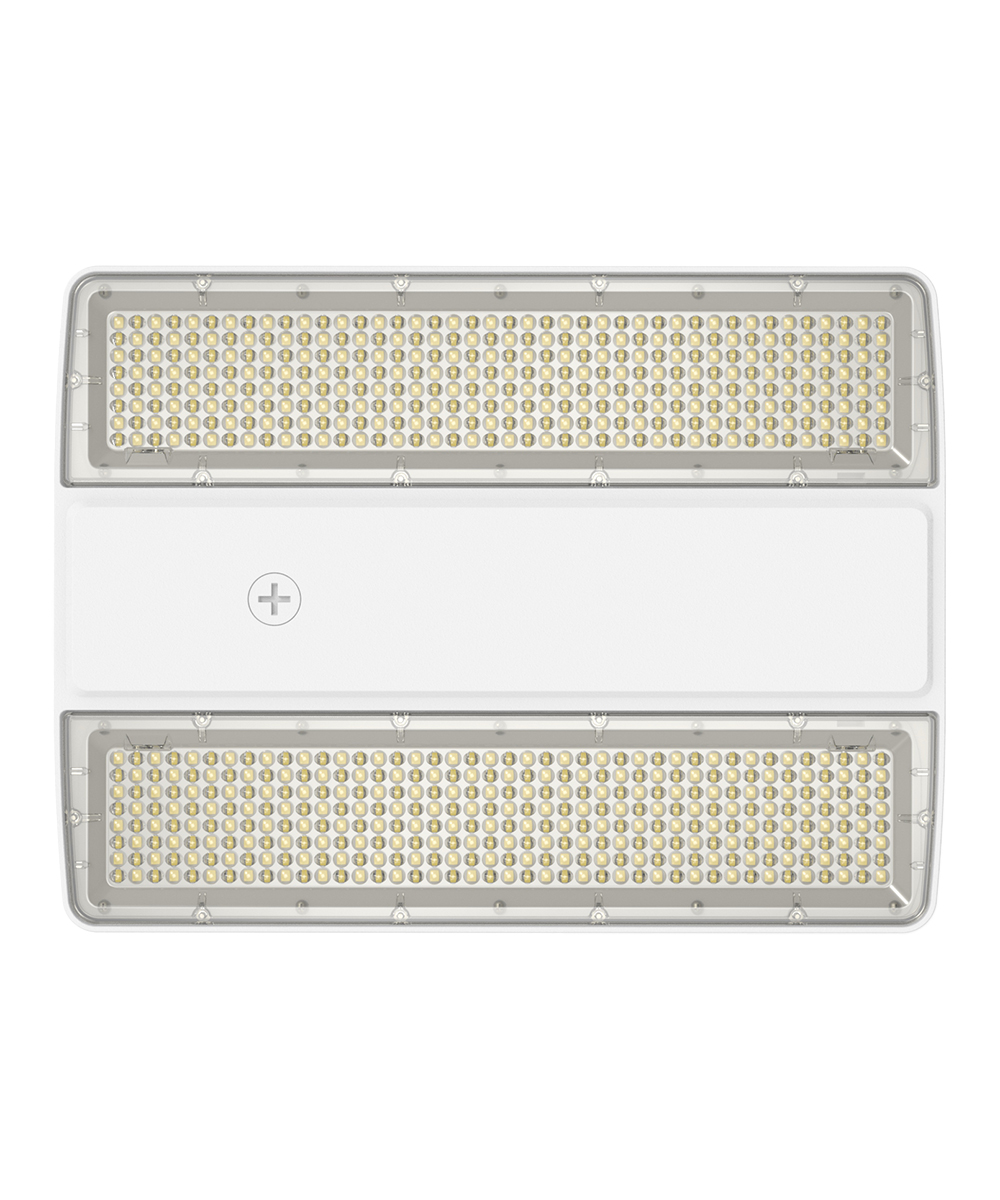

Precision-engineered LEDs and optics provide light distribution options with a dip switch, for Standard, Aisle, and Narrow Aisle applications, ensuring smooth and even illumination throughout the space.

Controls Option

Bi-level dimming motion control options maximize energy savings, while networked lighting control options enhance efficiency even further with connected smart control features.

NETWORKED LIGHTING CONTROL

OPTIONS AVAILABLE

Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.

LEARN MORE

Specs & Variations

Model Model Lumen Package Wattage 3500K 4000K 5000K
FLHQ/2 - 160/130/105 FLHQ/2 - 105 15,000 105w 14,700 lm 15,225 lm 15,015 lm
FLHQ/2 - 130 18,000 130w 18,200 lm 18,850 lm 18,590 lm
FLHQ/2 - 160 23,000 160w 22,400 lm 23,200 lm 22,880 lm
FLHQ/2 - 240/210/180 FLHQ/2 - 180 26,000 180w 25,200 lm 26,100 lm 25,740 lm
FLHQ/2 - 210 30,000 210w 29,400 lm 30,450 lm 30,030 lm
FLHQ/2 - 240 34,000 240w 33,600 lm 34,800 lm 34,320 lm
FLHQ/2 - 320/295/255 FLHQ/2 - 255 36,000 255w 35,700 lm 36,975 lm 36,465 lm
FLHQ/2 - 295 42,000 295w 41,300 lm 42,775 lm 42,185 lm
FLHQ/2 - 320 46,000 320w 44,800 lm 46,400 lm 45,760 lm

Build Your Light

Family Model Input Voltage CCT Beam Angle Options

FLHQ/2
160/130/105 - 130w/105w/90w selectable
UV - 120-347v
8CT - 3500/4000/5000K selectable
DX - Standard, Aisle, Narrow Aisle Selectable

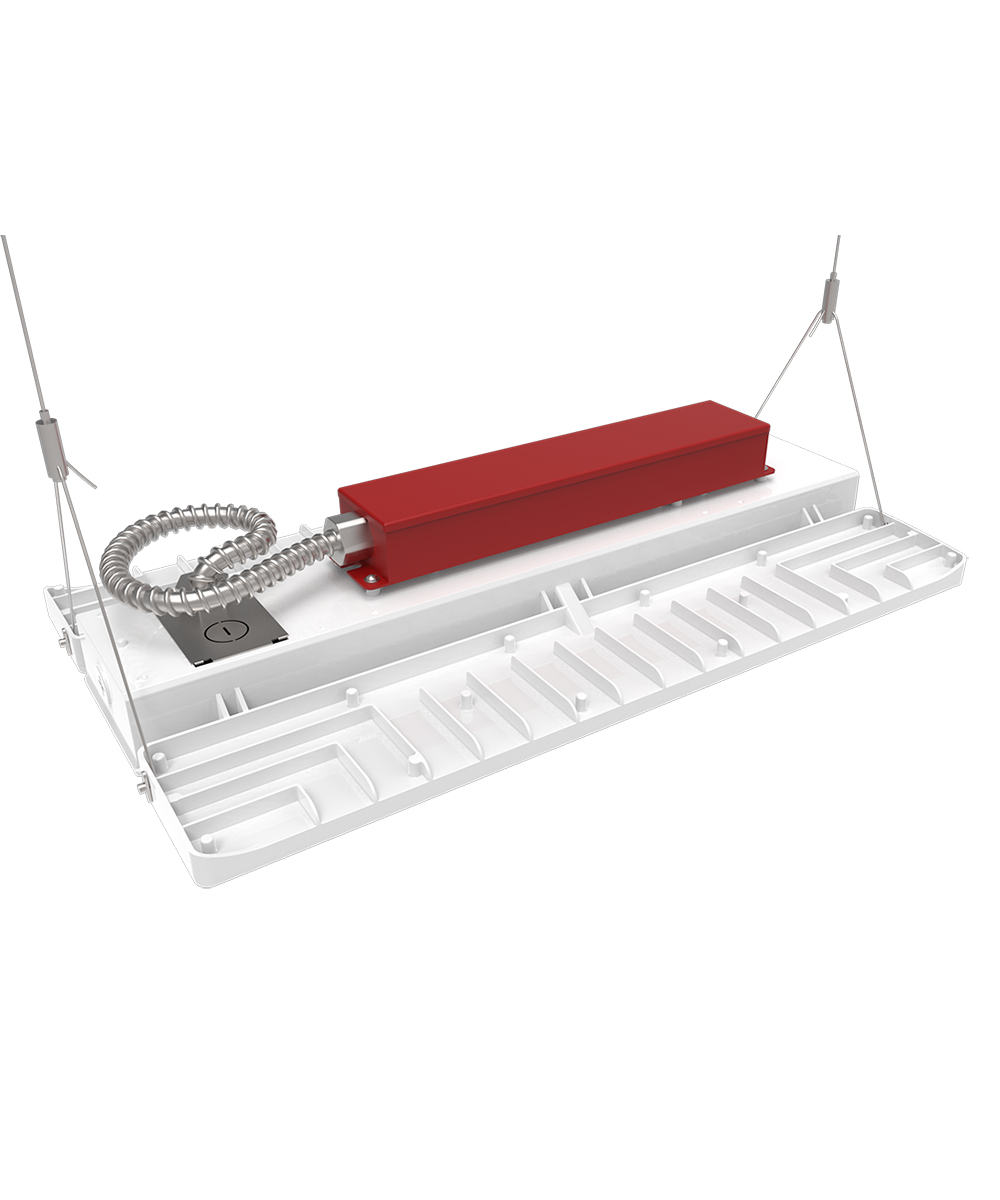

EMxxxx - Emergency backup
240/210/180 - 240w/210w/180w selectable
HV - 480v
SM - Surface mount kit
320/295/255 - 320w/295w/255w selectable

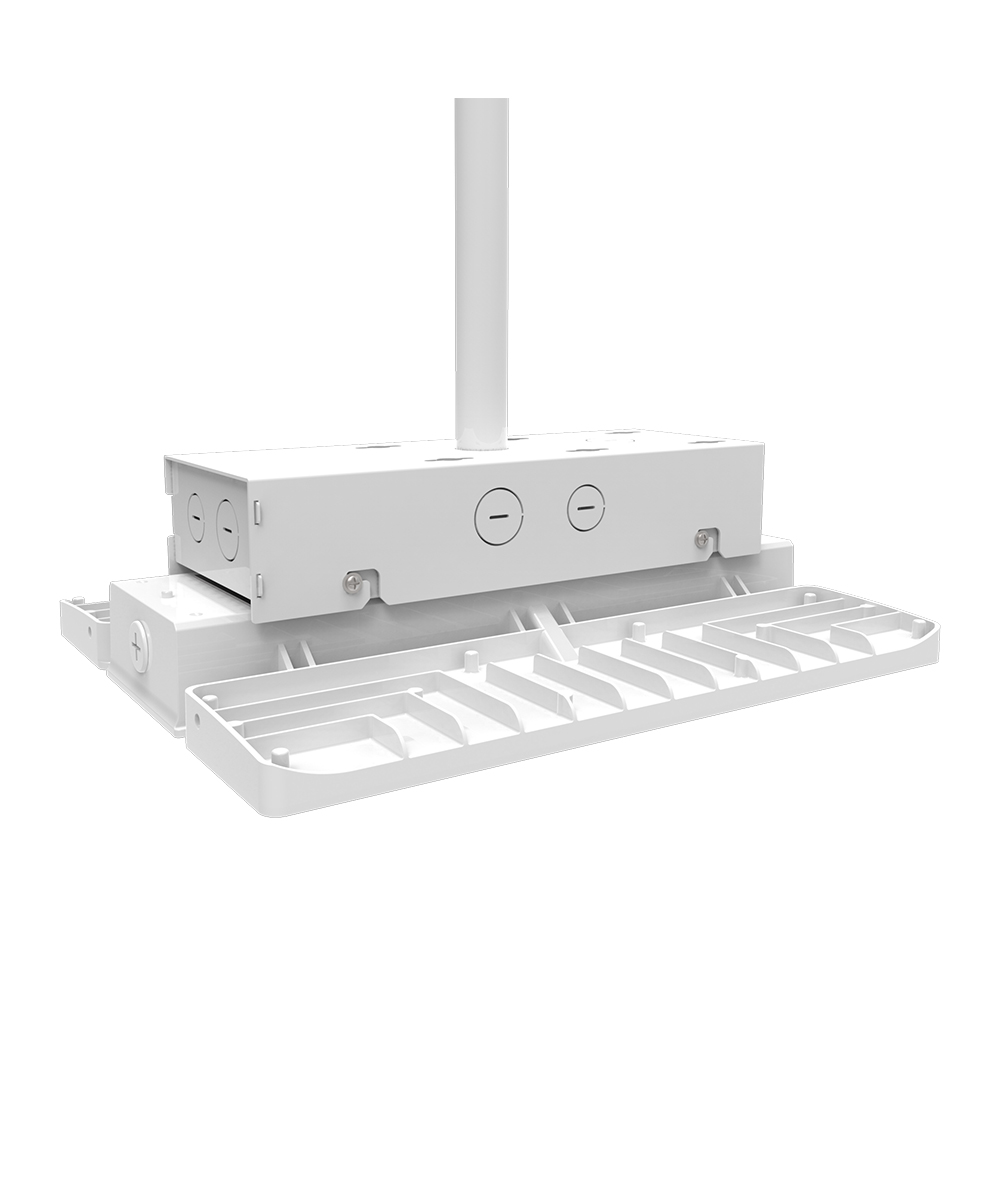

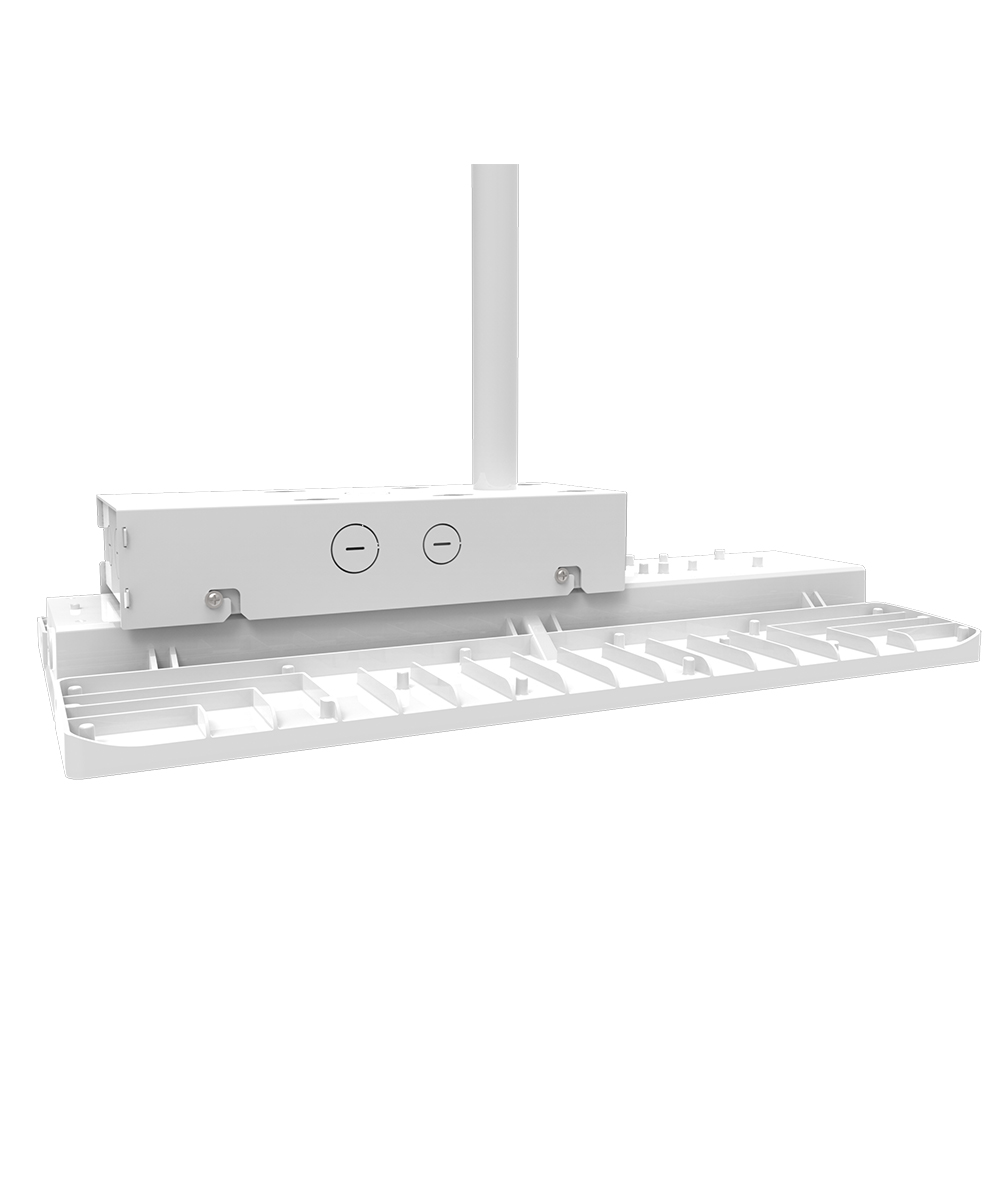

PM - Pendant mount
WG - Wire Guard
MCP - PIR Bi-level occupancy control
MCW - Microwave Bi-level occupancy control
MCD - Microwave Bi-level & Daylight harvesting control
WBN - Networked Control (NLC)
WBP - Networked Control (NLC) with PIR motion & Daylight sensor

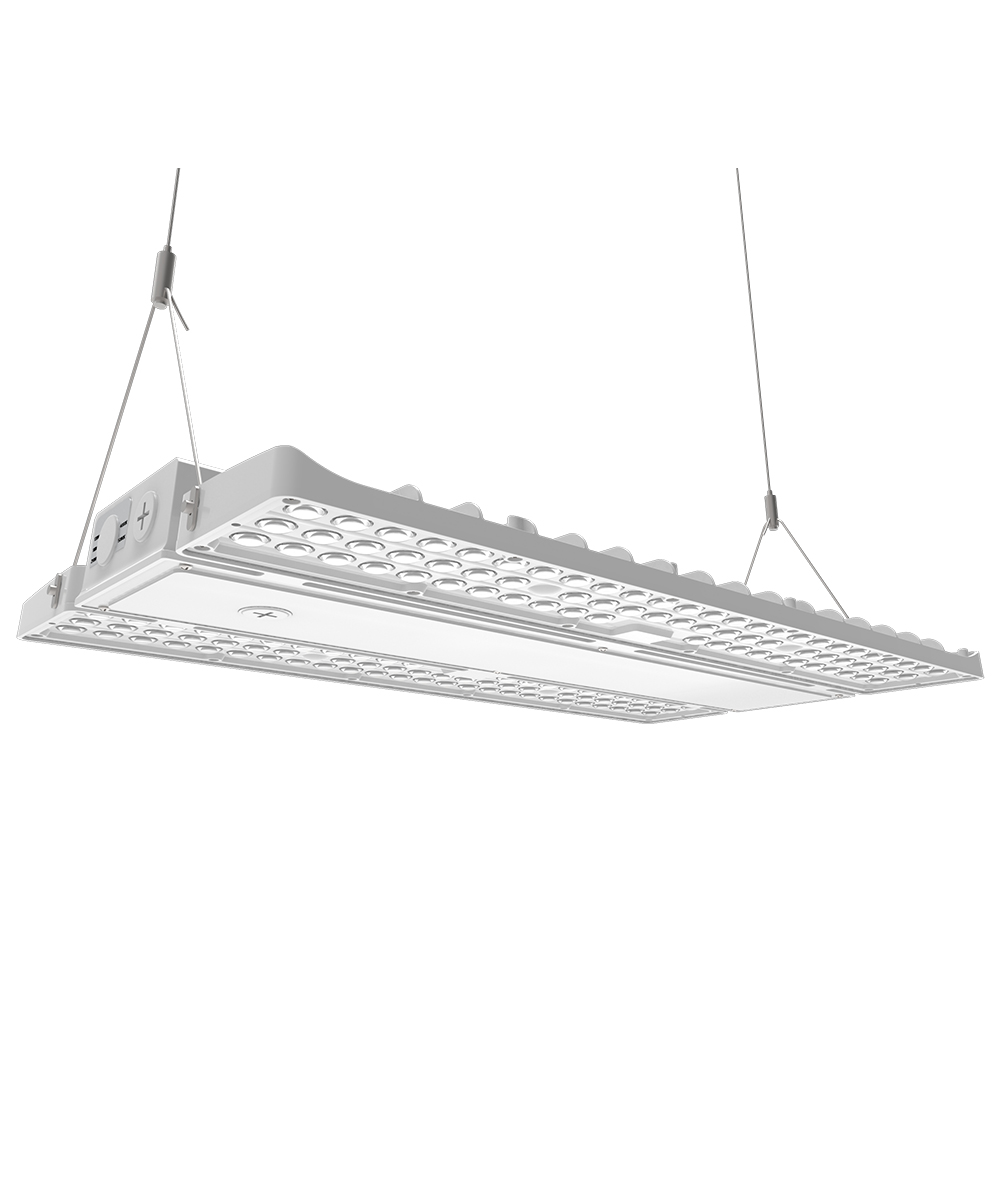

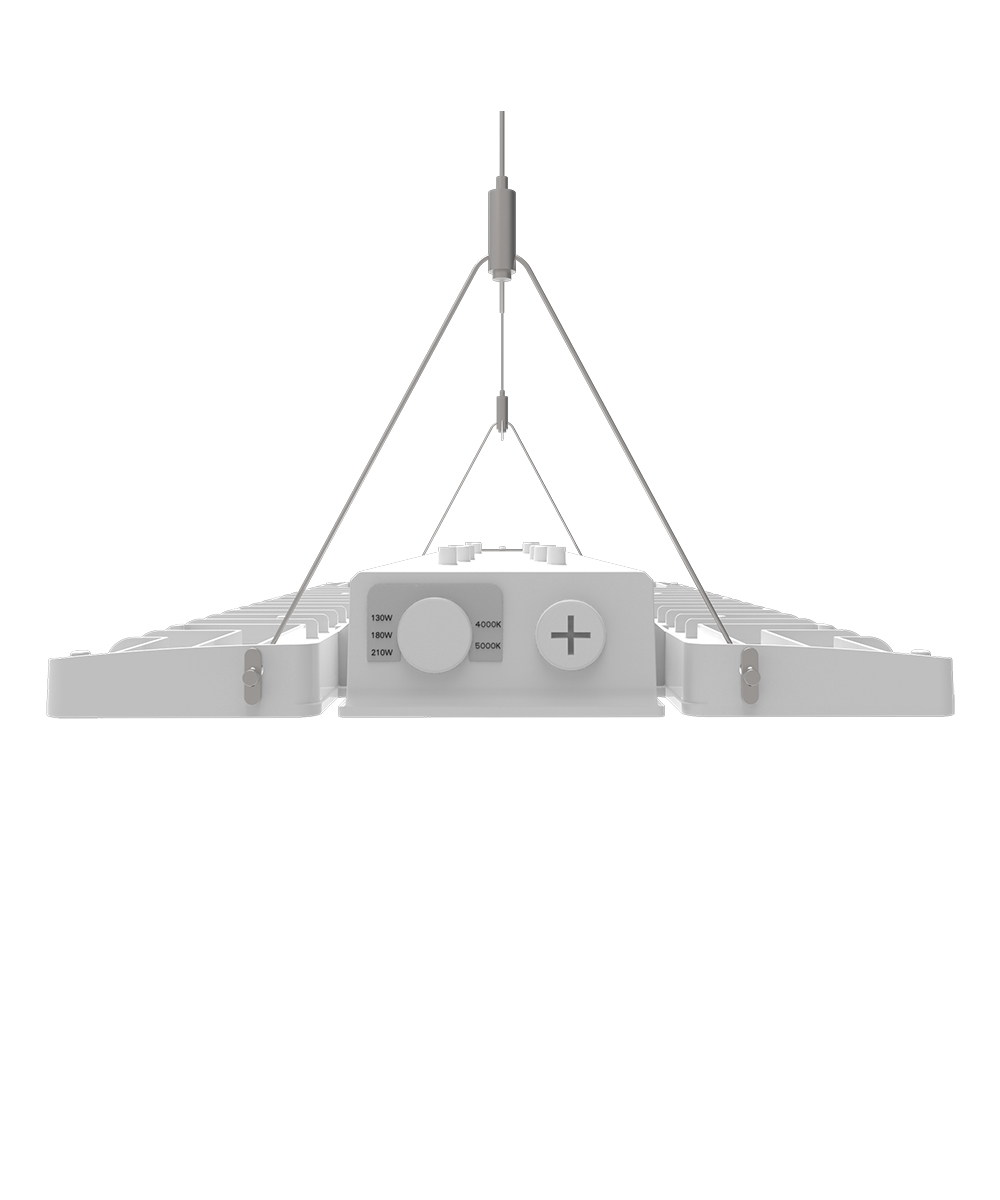

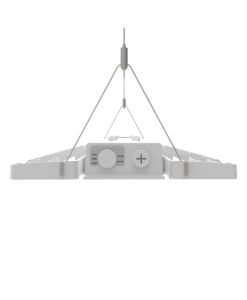

AC S/L - Aircraft Cable

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.

Documents & Downloads

Specification & Sales Sheets
spec sheet

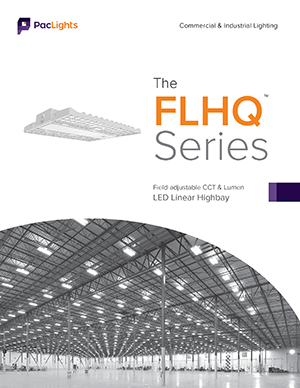

pdficonFLHQ series (FLHQ/2) Product Specification Sheet

Previous Generations:

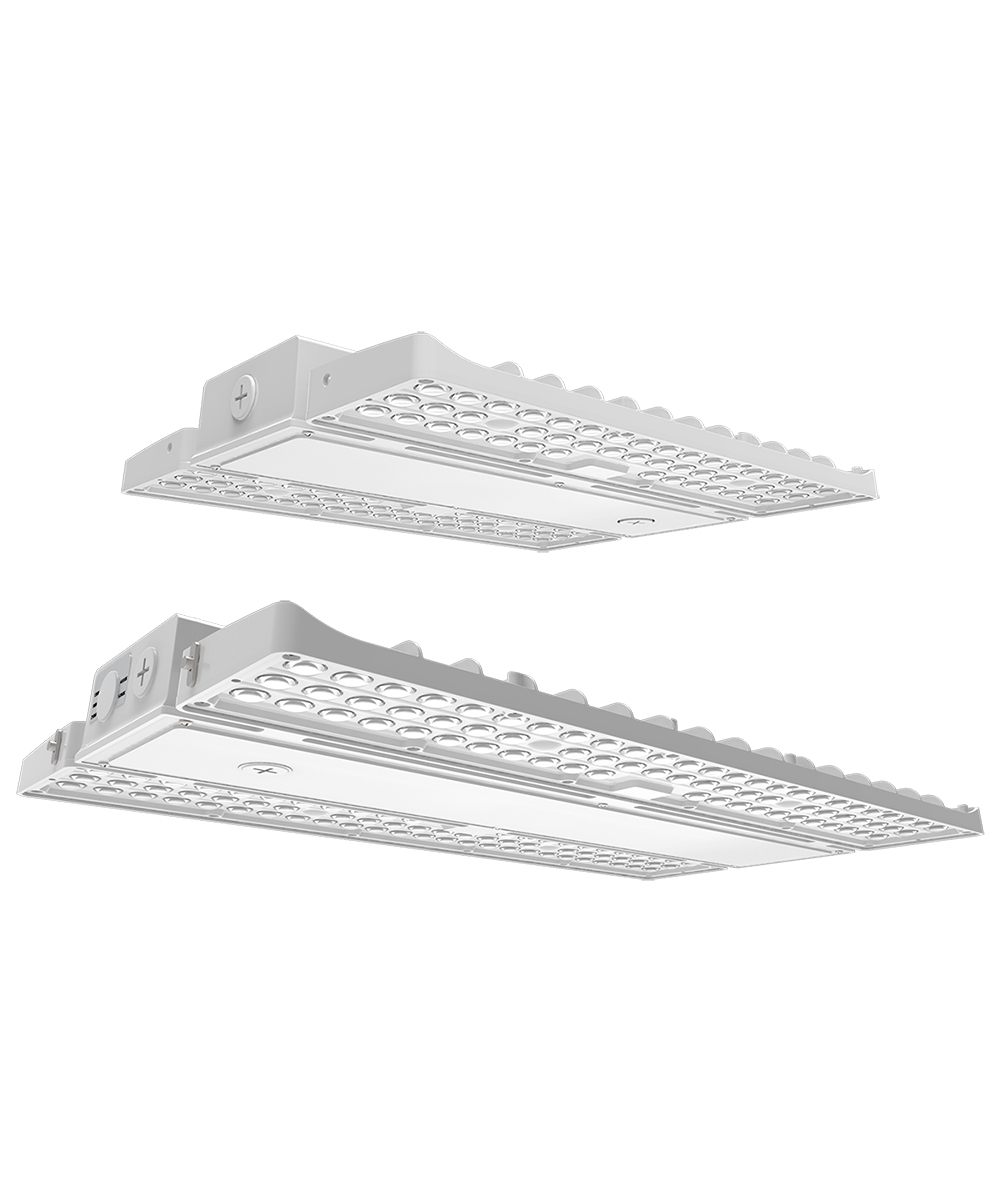

(1st Generation)
pdficonFLHQ series (FLHQ) Product Spec Sheet

* specifications are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTOPTICSIES File
11st (Latest)FLHQ-130 config. to 5000K 90W, STANDARD Lens905000KSTANDARDDownload IES
21st (Latest)FLHQ-130 config. to 5000K 105W, STANDARD Lens1055000KSTANDARDDownload IES
31st (Latest)FLHQ-130 config. to 5000K 130W, STANDARD Lens1305000KSTANDARDDownload IES
41st (Latest)FLHQ-130 config. to 5000K 90W, AISLE Lens905000KAISLEDownload IES
51st (Latest)FLHQ-130 config. to 5000K 105W, AISLE Lens1055000KAISLEDownload IES
61st (Latest)FLHQ-130 config. to 5000K 130W, AISLE Lens1305000KAISLEDownload IES
71st (Latest)FLHQ-130 config. to 4000K 90W, STANDARD Lens904000KSTANDARDDownload IES
81st (Latest)FLHQ-130 config. to 4000K 105W, STANDARD Lens1054000KSTANDARDDownload IES
91st (Latest)FLHQ-130 config. to 4000K 130W, STANDARD Lens1304000KSTANDARDDownload IES
101st (Latest)FLHQ-130 config. to 4000K 90W, AISLE Lens904000KAISLEDownload IES
GENERATIONSKUWATTAGECCTOPTICSIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
213FLHQ-130-UV-40/50-[Blank, MCx/WBx][Blank, EM] (90/105/130)S-52YUWG5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
214FLHQ-130-HV-40/50-[Blank, MCx/WBx][Blank, EM] (90/105/130)S-CODJZG5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
215FLHQ-210-[UV,HV]-40/50-[Blank, MCx/WBx][Blank, EM] (155/180/210)S-IMWCE95.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
216FLHQ-310-[UV,HV]-40/50-[Blank, MCx/WBx][Blank, EM] (240/270/310)S-W0OE4V5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
QPL Model No.Product IDVersionClassificationPrimary Use
