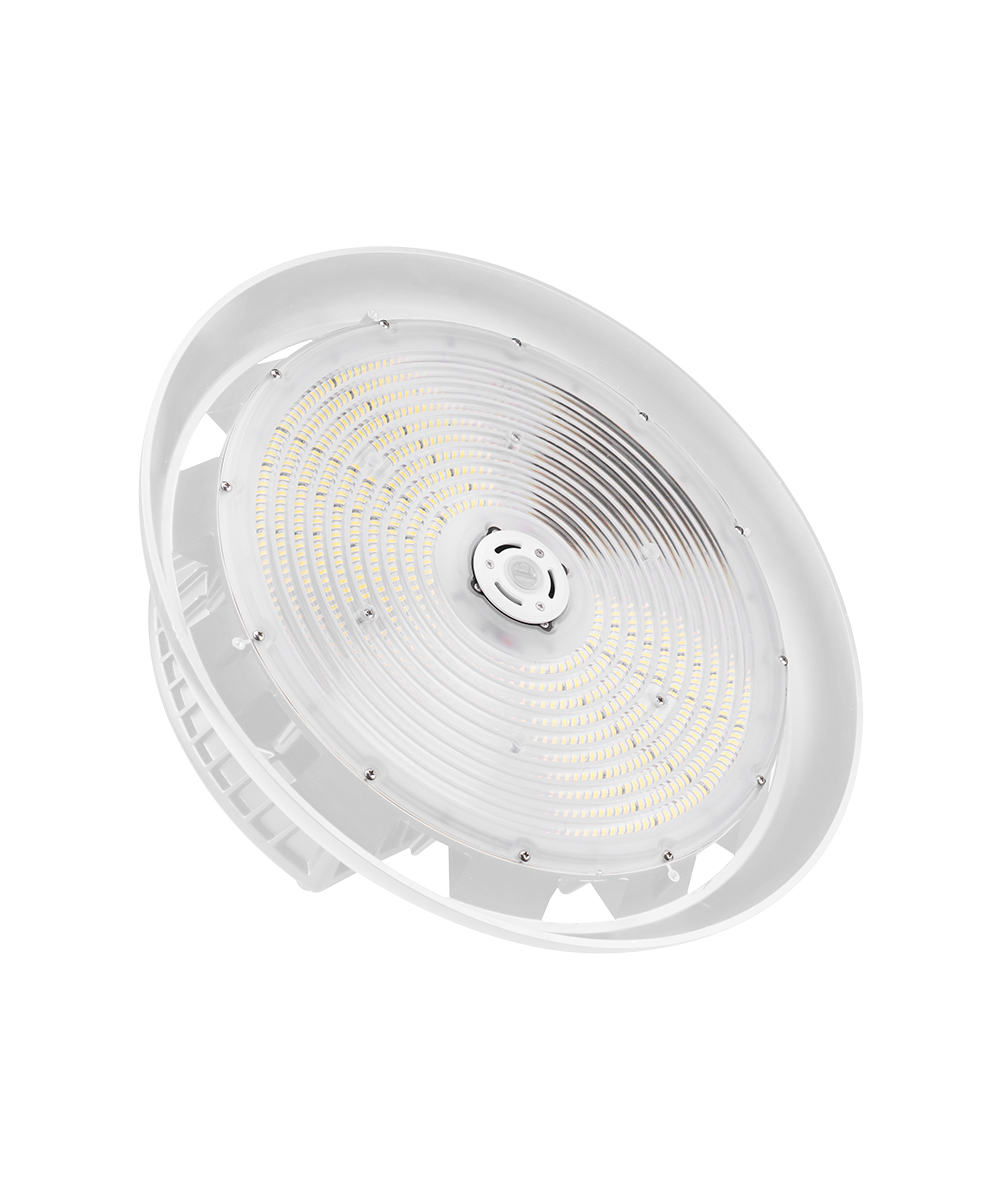

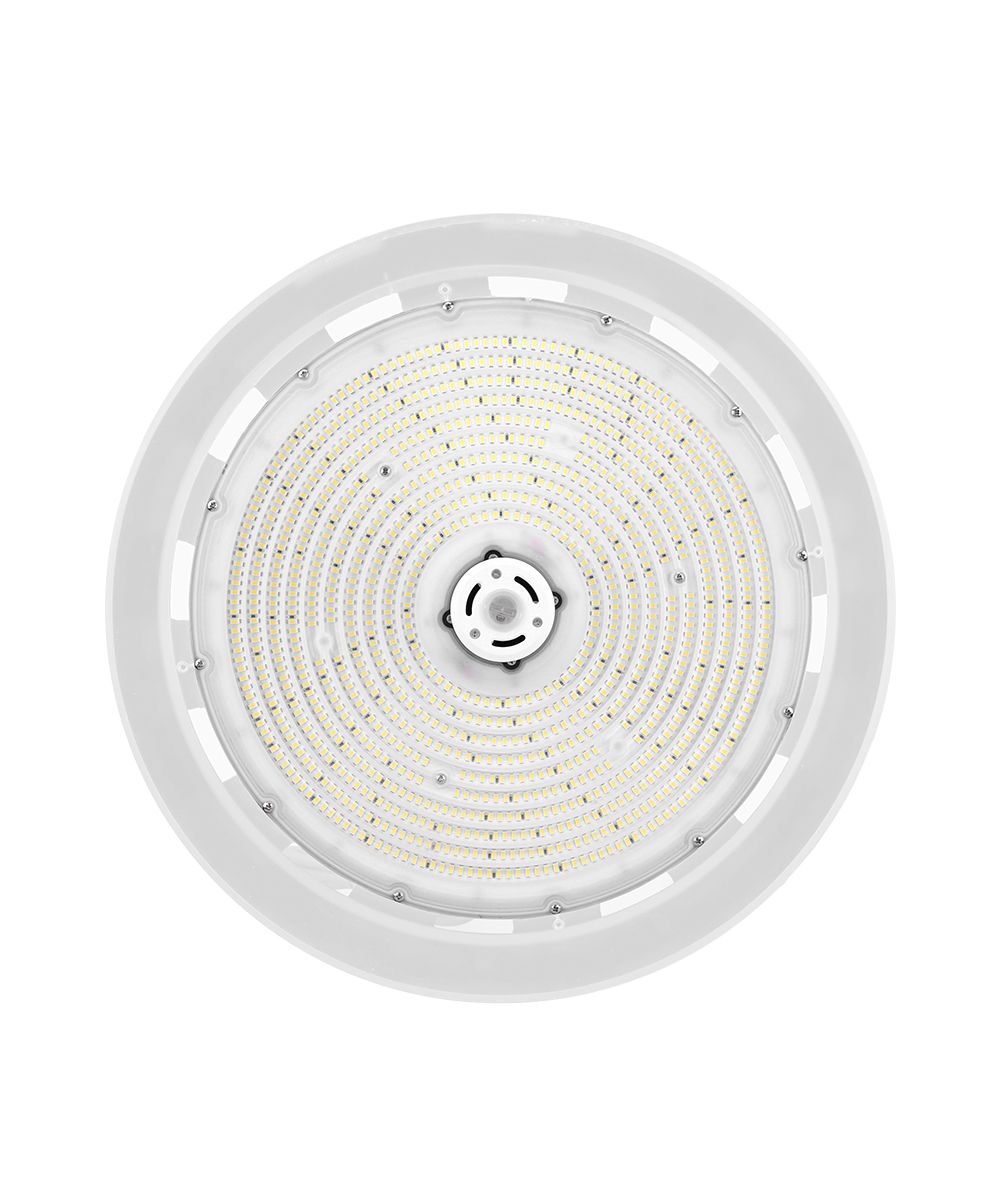

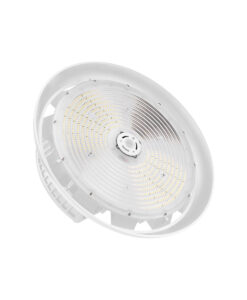

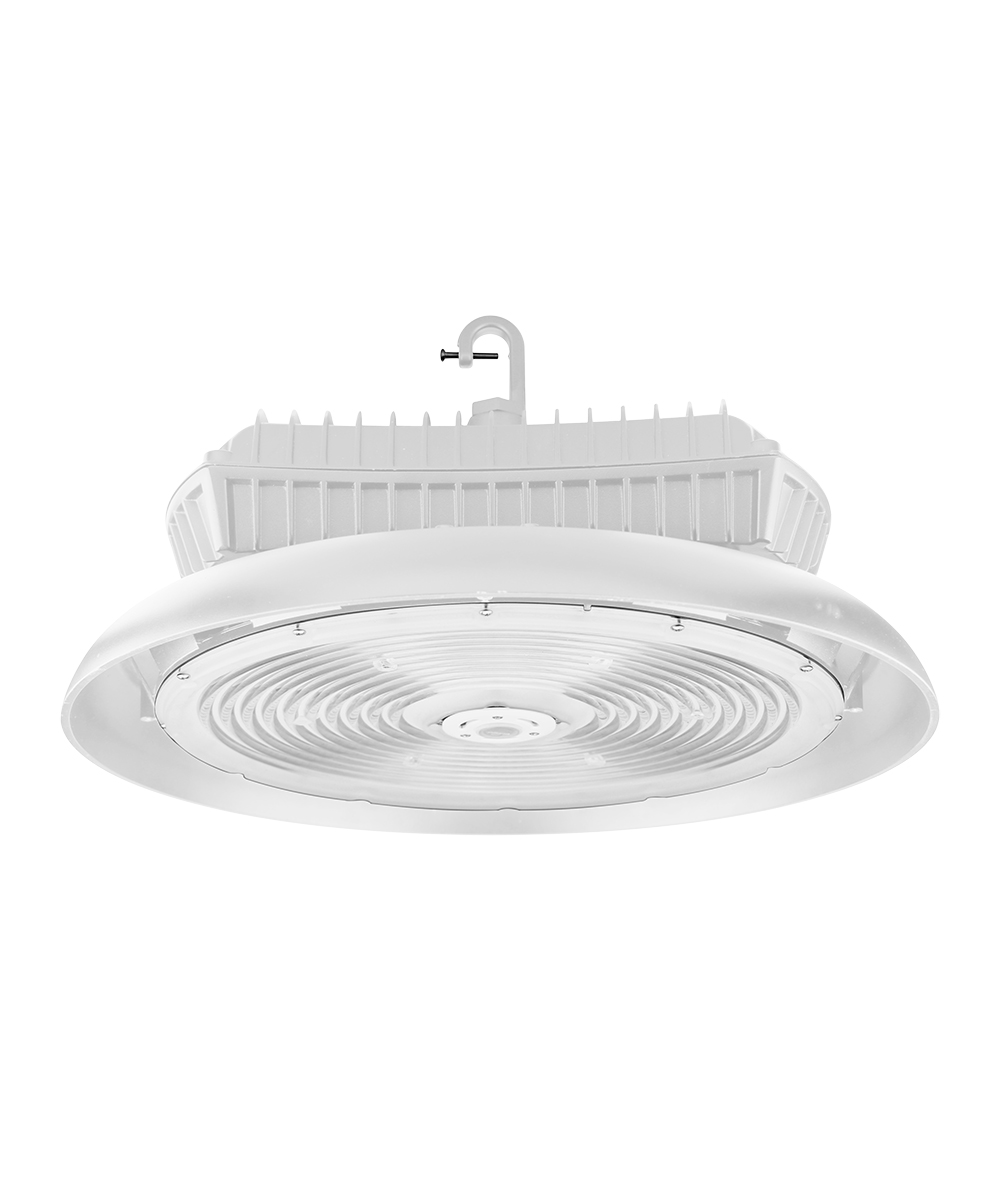

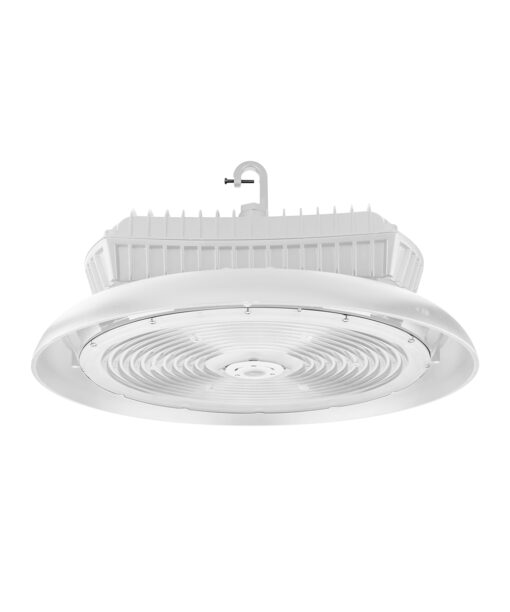

FHUW series High Output LED High Bays

The FHUW series offers a high-output, low-profile High Bay design, combining remarkable energy efficiency with long-lasting performance in a compact and lightweight design. Perfect for mounting at elevations up to 80 feet, this fixture shines brightly with up to 56,000 lumens. It’s especially apt for challenging spots where regular maintenance access is impractical. Upholding PacLights’s hallmark standards of performance and reliability, the FHUW is an economical and efficient LED alternative to traditional 1000 watt HID fixtures and other conventional lighting.

– Limited Warranty: 5 years
– Efficacy: up to 141 LPW
– Lumen Output: 41,000 – 56,000 L
– Wattage: 300W, 400 W

UL Listed  DLC QPL

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate
From 41,000 to 56,000 Lumen
SKU: FHUW Categories: , Tag:

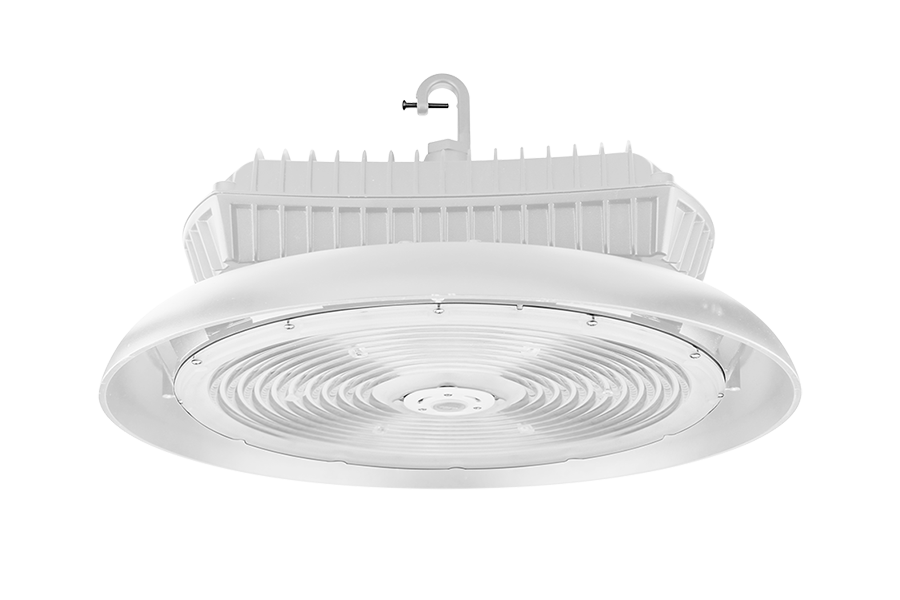

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Secondary Surge Protection

Secondary surge protector is included, total surge protection: driver 4kV + Secondary 20kV.

Controls Ready

Easier than ever before, pre-installed control receptacle enables a plug-and-play installation process, providing options for Bi-Level PIR/Microwave Dimming control or Networked Lighting controls. This streamlined approach ensures maximum energy savings.

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.

NETWORKED LIGHTING CONTROL

OPTIONS AVAILABLE

Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.

LEARN MORE



Specs & Variations

Model LED Wattage Lumen@5000K Lumen@4000K
FHUW-300 300W 42,300 lm 41,700 lm
FHUW-400 400W 56,400 lm 55,600 lm



Build Your Light

Family Model Input Voltage CCT Option

FHUW
300 - 300w
UV - 120-277v
40 - 4000K
[blank] - None
400 - 400w
HV - 277-480v
50 - 5000K
EM - Emergency Battery Backup
WG - Wireguard
3QCM - 3/4" conduit mount adapter
TM - Surface mount
RF - 90° aluminum reflector
MCW - Microwave bi-level motion sensor control
MCP - PIR bi-level motion sensor control
MCD - Microwave bi-level motion + daylight harvesting sensor control
WBP - Wireless bluetooth networked control w/PIR motion and daylight sensor (NLC)
WBM - Wireless bluetooth networked control w/microwave motion and daylight sensor (NLC)
WBN - Wireless bluetooth networked control (NLC)

* Ordering information is for reference only. Some product configurations may not be available. Please consult spec sheets for specific product availability and for further details.



Documents & Downloads

Specification & Sales Sheets
spec sheet

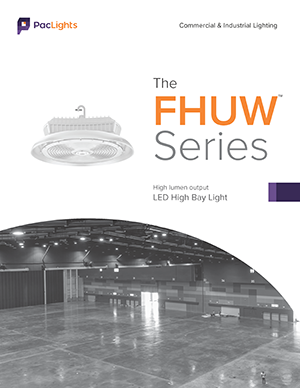

pdficonFHUW series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFHUW series Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTIES File
461st (Latest)FHUW-300 4000K3004000KDownload IES
471st (Latest)FHUW-300 5000K3005000KDownload IES
481st (Latest)FHUW-400 4000K4004000KDownload IES
491st (Latest)FHUW-400 5000K4005000KDownload IES
GENERATIONSKUWATTAGECCTIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
161FHUW-300-HV-35-a[SP;Blank][MCx;Blank]-S1BT2S-HTW5EY5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
162FHUW-300-HV-40-a[SP;Blank][MCx;Blank]-S1BT2S-LW64585.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
163FHUW-300-HV-50-a[SP;Blank][MCx;Blank]-S1BT2S-KBX7VY5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
164FHUW-300-UV-40-a[SP;Blank][MCx;Blank]-S1BT2S-92WFEA5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
165FHUW-300-UV-50-a[SP;Blank][MCx;Blank]-S1BT2S-W9KNJO5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
166FHUW-400-HV-40-a[SP;Blank][MCx;Blank]-S1BT2S-6VE8H25.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
167FHUW-400-HV-50-a[SP;Blank][MCx;Blank]-S1BT2S-PEVARF5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
168FHUW-400-UV-40-a[SP;Blank][MCx;Blank]-S1BT2S-A1HUEJ5.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
169FHUW-400-UV-50-a[SP;Blank][MCx;Blank]-S1BT2S-AOPSF35.1PremiumHigh-Bay Luminaires for Commercial and Industrial Buildings
QPL Model No.Product IDVersionClassificationPrimary Use
