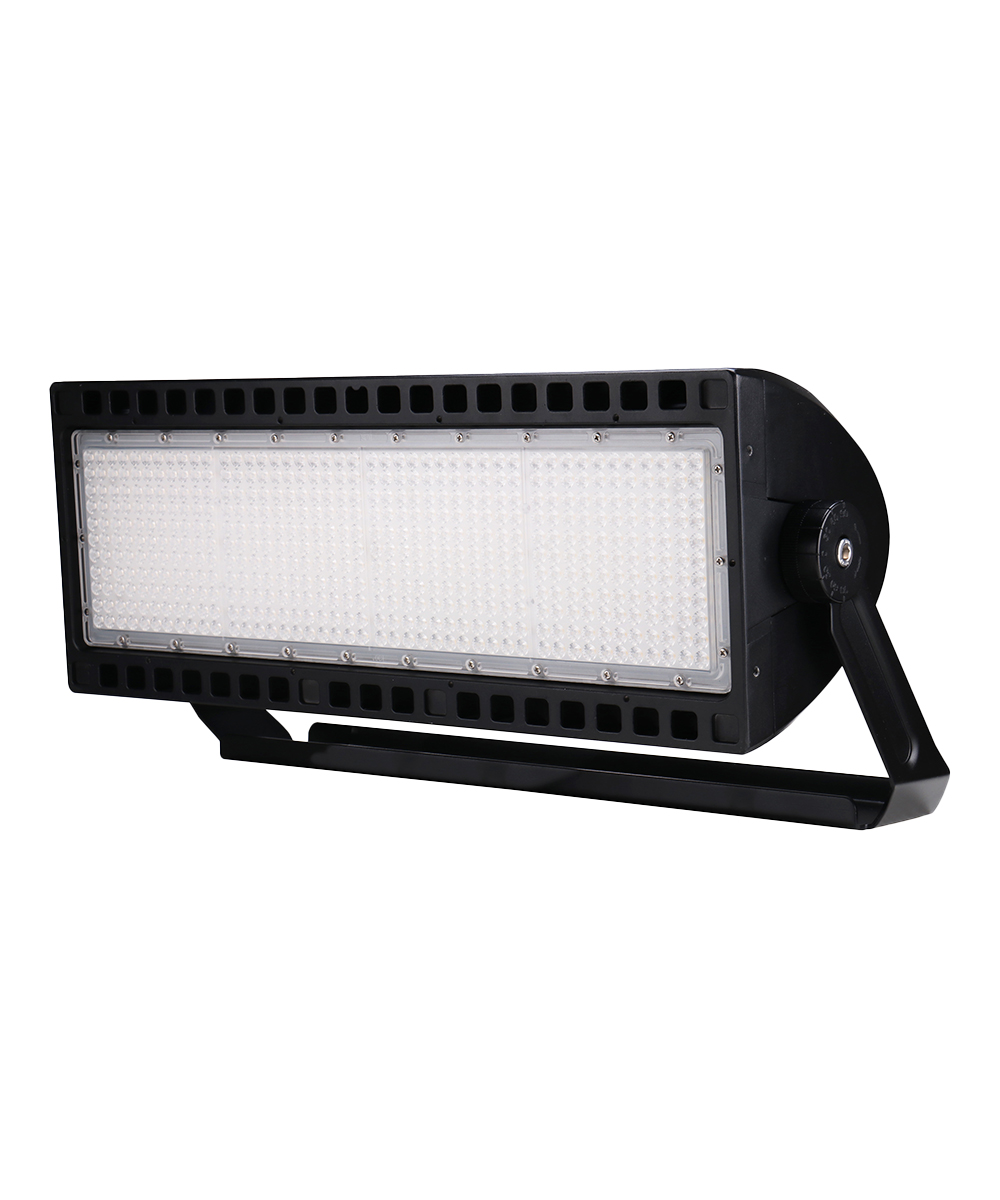

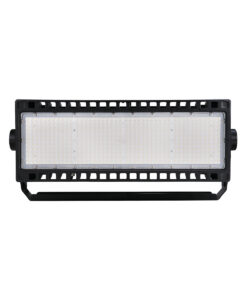

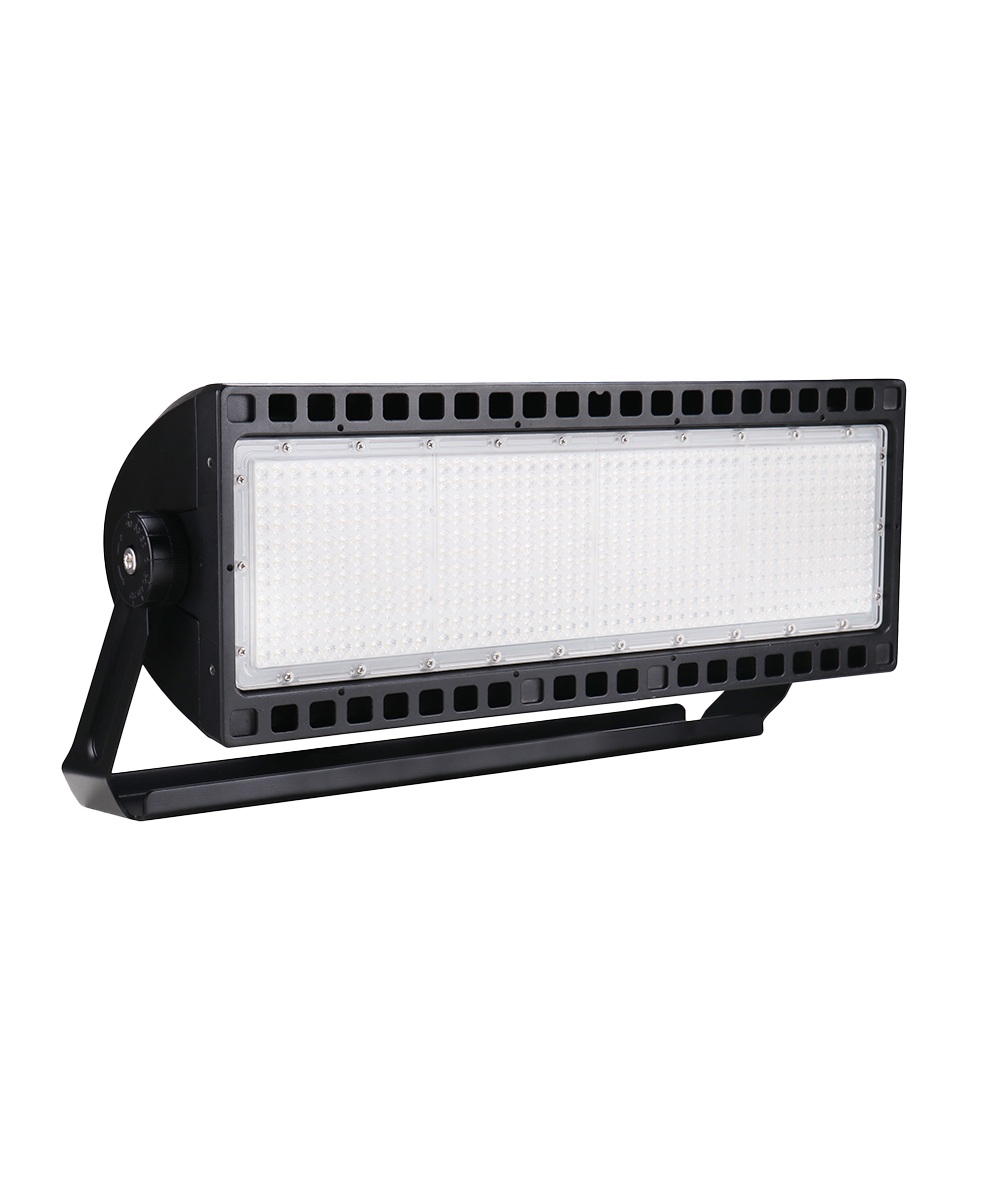

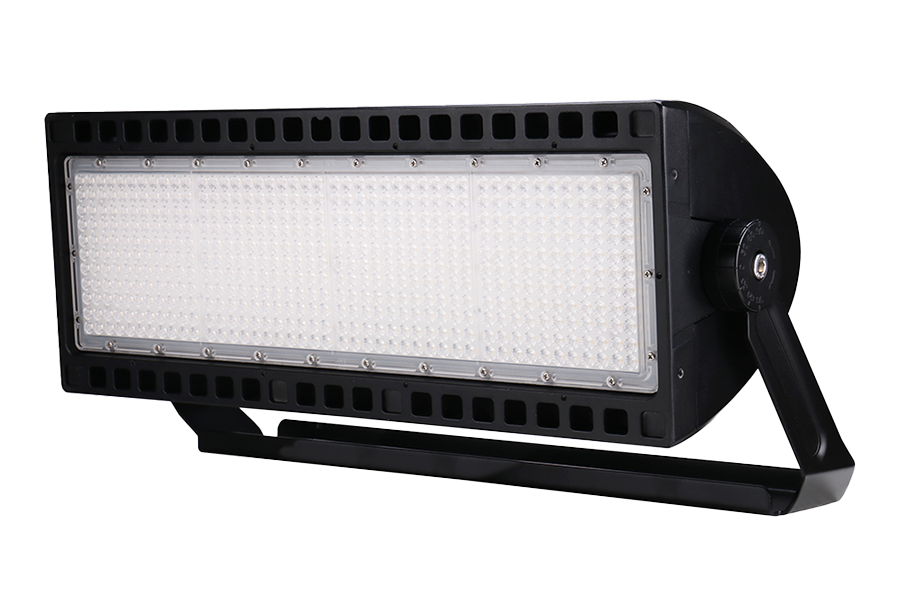

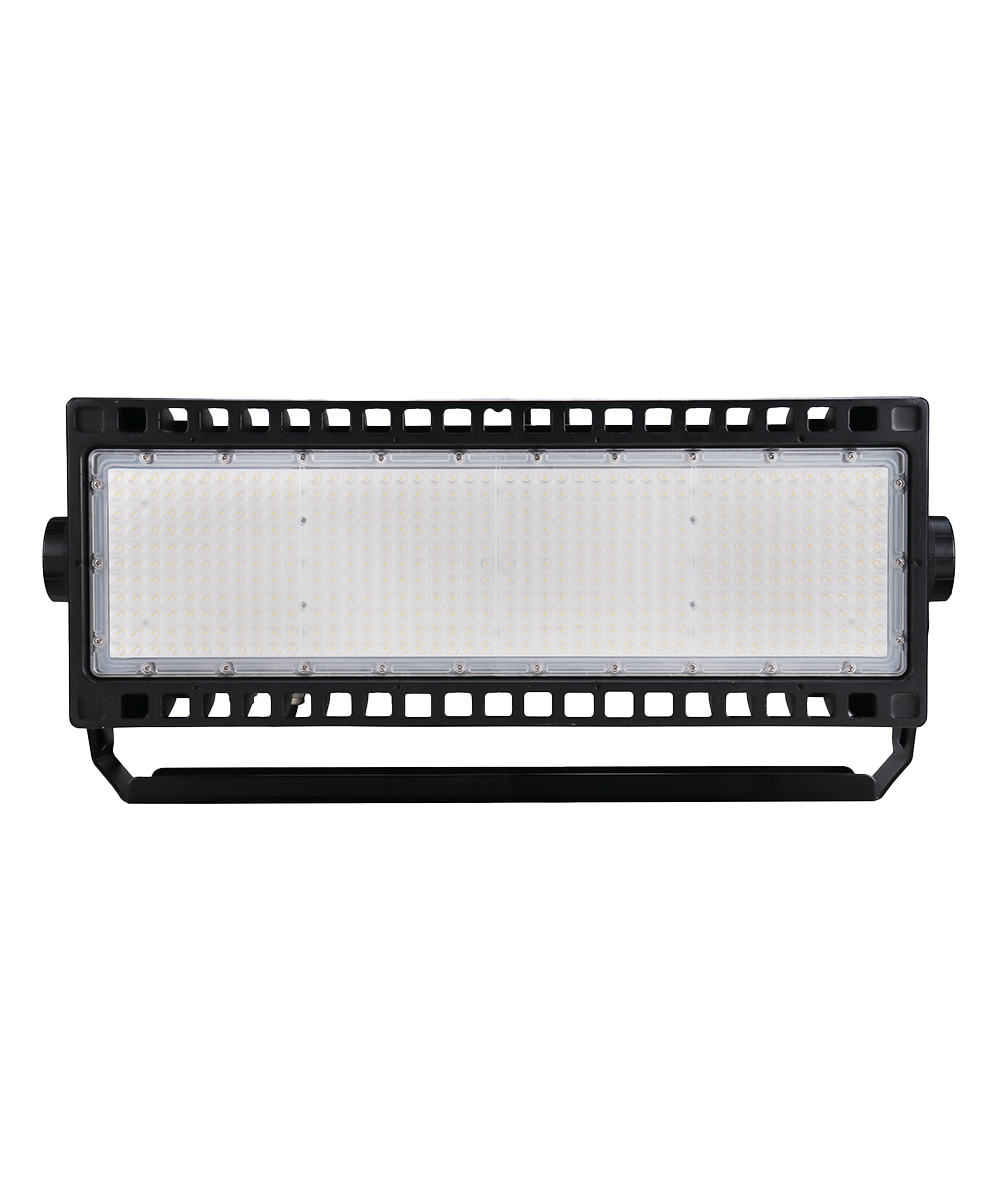

FFHE series Sports and Flood Lights

The FFHE is an essential and high-performance LED sports and flood light, providing a true equivalent of up to 1000W Metal Halide illumination. Suitable for mounting at heights of 30-70ft, it efficiently covers large areas with its narrow optic beam. This fixture features a NEMA 7-prong twist-lock control receptacle compatible with standard photocells or advanced dimming controls, including wireless networked controls that support Dynamic Behaviors for creating stunning lighting effects. Standard configurations come with a Yoke/Trunnion mounting bracket, with optional 2-3/8” Slipfitter or Knuckle brackets available to meet different installation needs. For added reliability, all models are equipped with secondary 10kV Surge Protection.

– Limited Warranty: 5 Years
– Efficacy: up to 143 LPW
– Lumen Output: 56,000 – 86,000 LM
– Wattage: 600 / 500 / 400 W

UL Listed  DLC QPL

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 56,000 lm to 86,000 lm
SKU: FFHE Categories: , , , Tag:

Features

DLC QPL Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Secondary Surge Protection

FFHE comes standard with a secondary 10kV surge protector for extra peace of mind.

Controls Options

Features ANSI C136.41 (7 pin NEMA) receptacle, compatible with most 3, 5 or 7 pin twist lock photocell or wireless controls.

Mounting Options

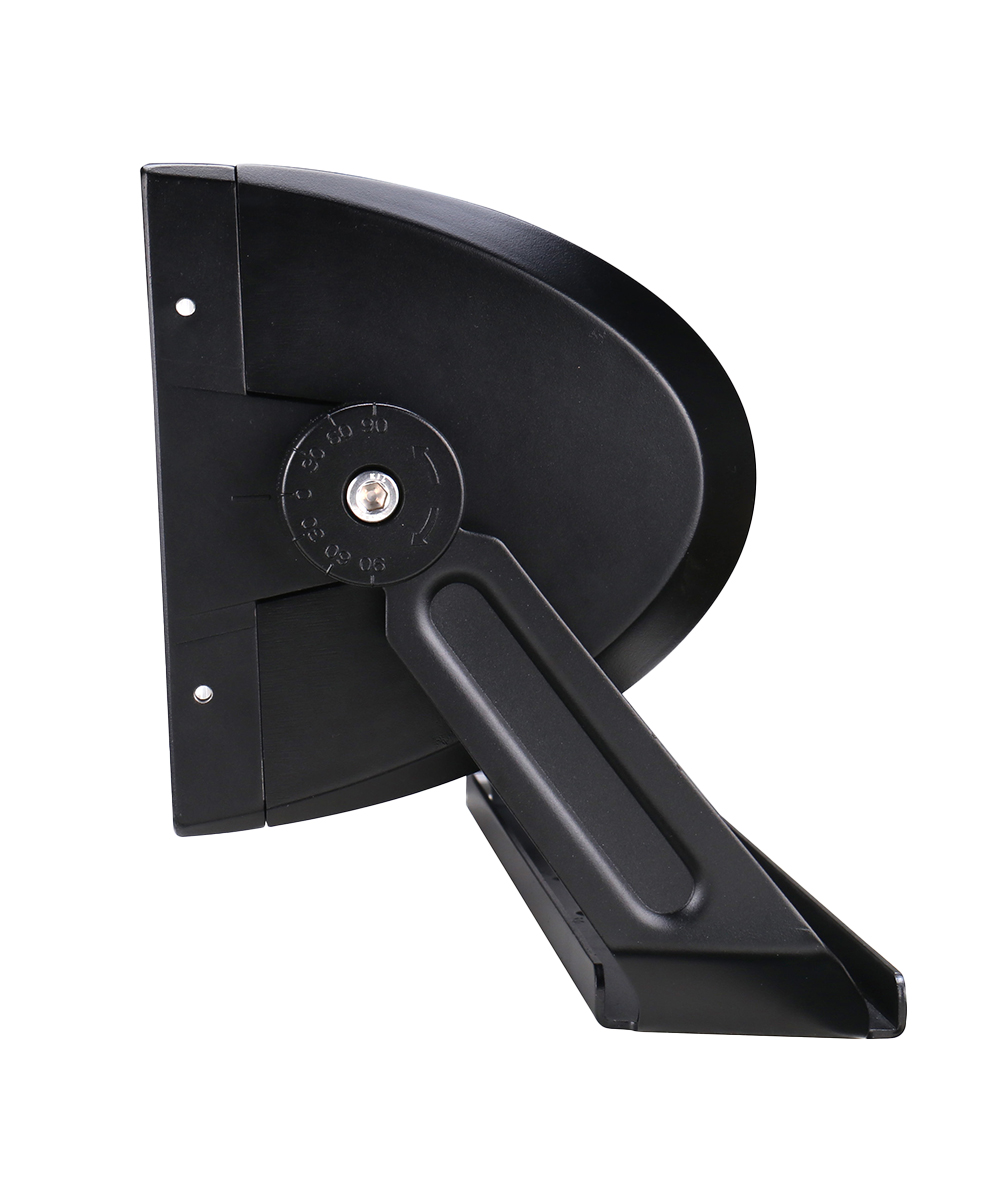

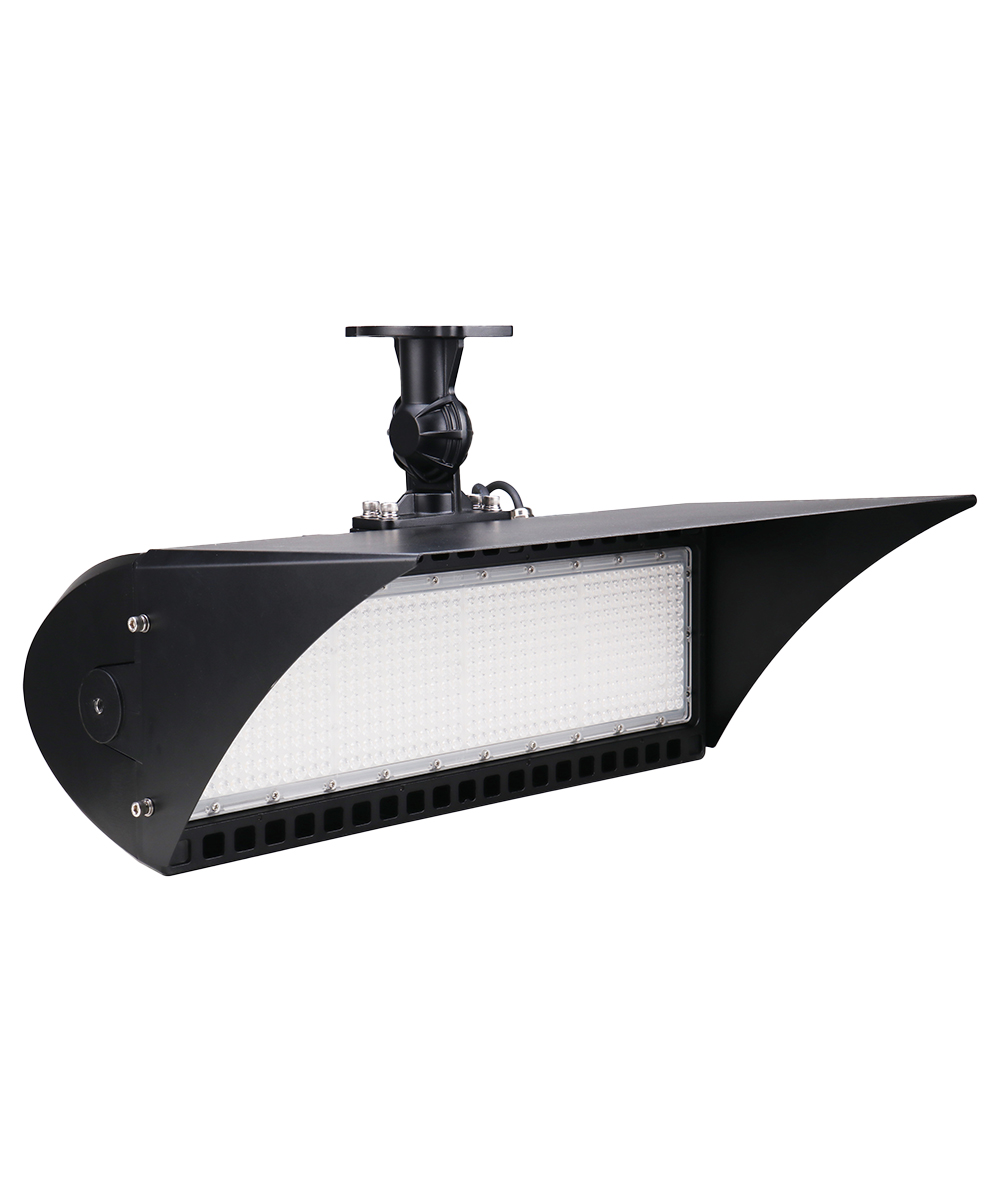

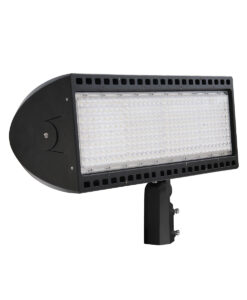

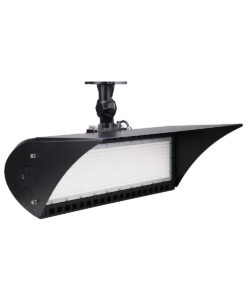

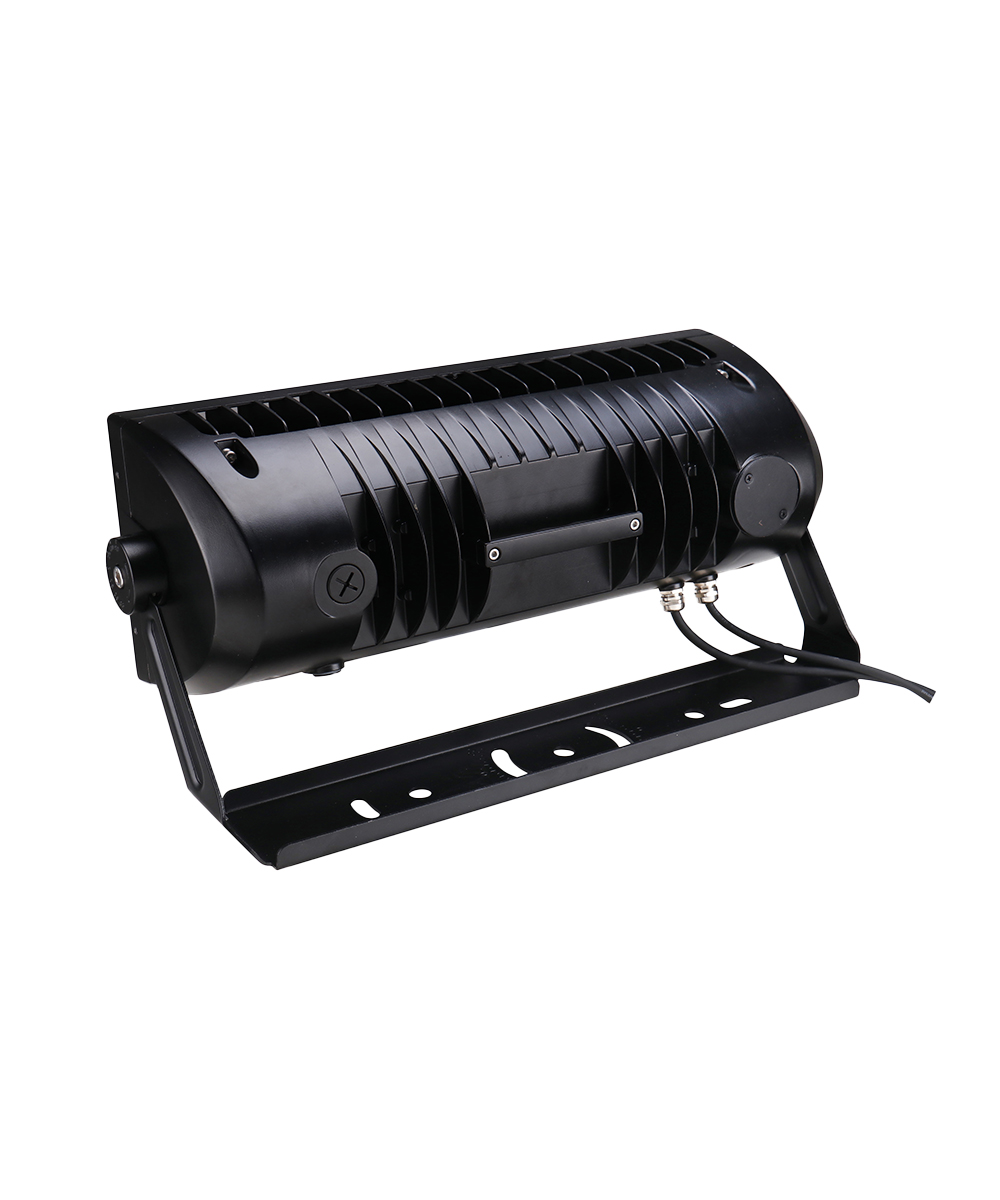

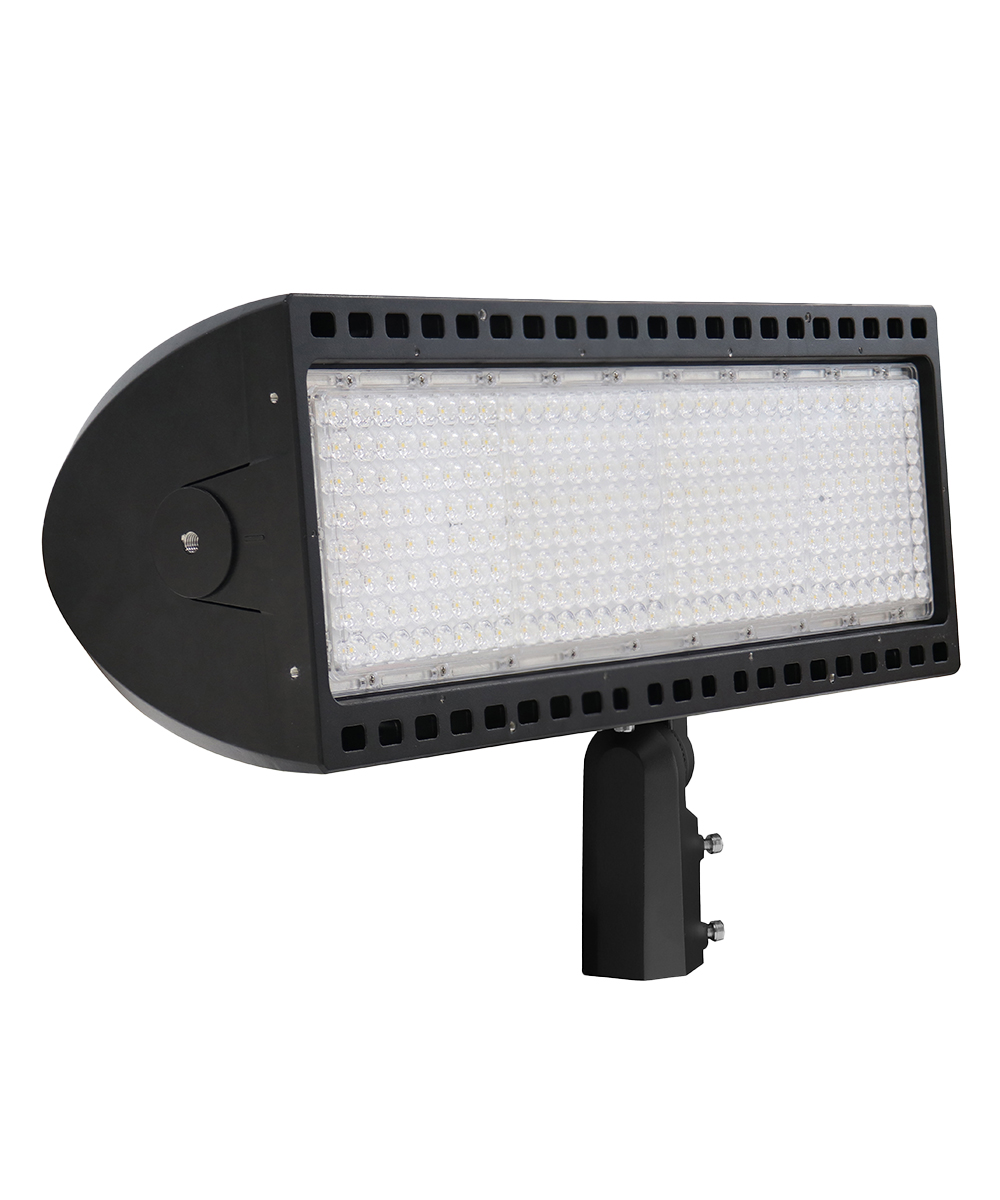

Standard configurations come with a Yoke/Trunnion mounting bracket, with optional 2-3/8” Slipfitter or Knuckle brackets available to meet different installation needs

Specs & Variations

Model LED Wattage Lumen Package 5000K 4000K
FFHE-400 400w 56,000 lm 57,200 lm 56,400 lm
FFHE-500 500w 70,000 lm 71,500 lm 70,500 lm
FFHE-600 600w 84,000 lm 85,800 lm 84,600 lm

Build Your Light

Family Model Input Voltage Color Temperature Beam Mounts Options

FFHE
400 - 400w
UV - 120-277v
50 - 5000K
D3 - 30°, NEMA 4
TM - Yoke
PS - photocell
500 - 500w
HV - 220-480v
40 - 4000K
KM - Knuckle
SYW - Synapse® wireless
600 - 600w
SF - Slipfitter
VS - glareshield

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.

Documents & Downloads

pdficonFFHE series Installation Guide

* installation instructions are subject to change without notice.

wdt_IDGENERATIONSKUWATTAGECCTOPTICSIES File
2361st (Latest)FFHE-400-40-D34004000KD3Download IES
2371st (Latest)FFHE-400-50-D34005000KD3Download IES
2381st (Latest)FFHE-500-40-D35004000KD3Download IES
2391st (Latest)FFHE-500-50-D35005000KD3Download IES
2401st (Latest)FFHE-600-40-D36004000KD3Download IES
2411st (Latest)FFHE-600-50-D36005000KD3Download IES
GENERATIONSKUWATTAGECCTOPTICSIES File

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
244FFHE-500-HV-40-Dx-cdefPS-KTP5DS5.1PremiumArchitectural Flood and Spot Luminaires
245FFHE-500-HV-50-Dx-cdefPS-R3KDQN5.1PremiumArchitectural Flood and Spot Luminaires
246FFHE-500-UV-40-Dx-cdefPS-NQ401X5.1PremiumArchitectural Flood and Spot Luminaires
247FFHE-500-UV-50-Dx-cdefPS-YX3GKH5.1PremiumArchitectural Flood and Spot Luminaires
248FFHE-600-HV-40-Dx-cdefPS-0H88DN5.1PremiumArchitectural Flood and Spot Luminaires
249FFHE-600-HV-50-Dx-cdefPS-CXHY5V5.1PremiumArchitectural Flood and Spot Luminaires
250FFHE-600-UV-40-Dx-cdefPS-RHXPVP5.1PremiumArchitectural Flood and Spot Luminaires
251FFHE-600-UV-50-Dx-cdefPS-46TQ535.1PremiumArchitectural Flood and Spot Luminaires
QPL Model No.Product IDVersionClassificationPrimary Use
