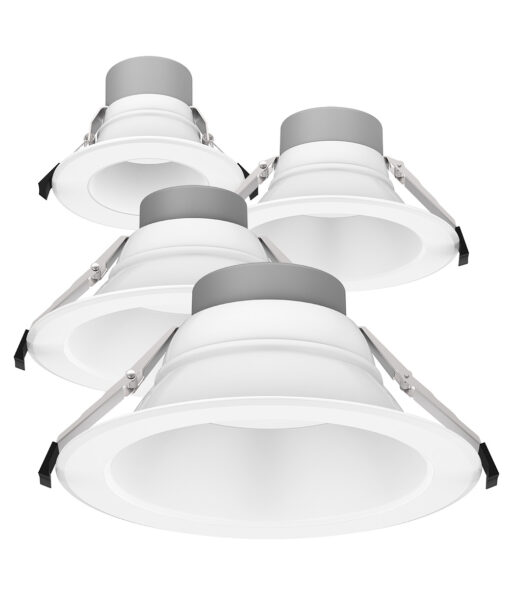

FDLA series LED Field-adjustable Downlights

The FDLA series LED field-adjustable Downlights are commercial downlights that allow you to change both lumen output and color temperature with the flick of a switch, giving you the flexibility to customize various areas with one fixture. Available in in 4″, 6”, 8” and 10” diameters, they’re ideal for both new construction and retrofit applications.

– Color (CCT) and Output (Lumen) selectable
– Limited Warranty: 5 Years
– Efficacy: up to 97 LPW
– Lumen Output: 500 – 3,200 LM
– Wattage: 6 – 33 W

Features SPECIFICATIONS Downloads

Request a Quote Free Lighting Layout Utility Rebate

From 500 lm to 3,200 lm

Features

CCT and Lumen Selectable

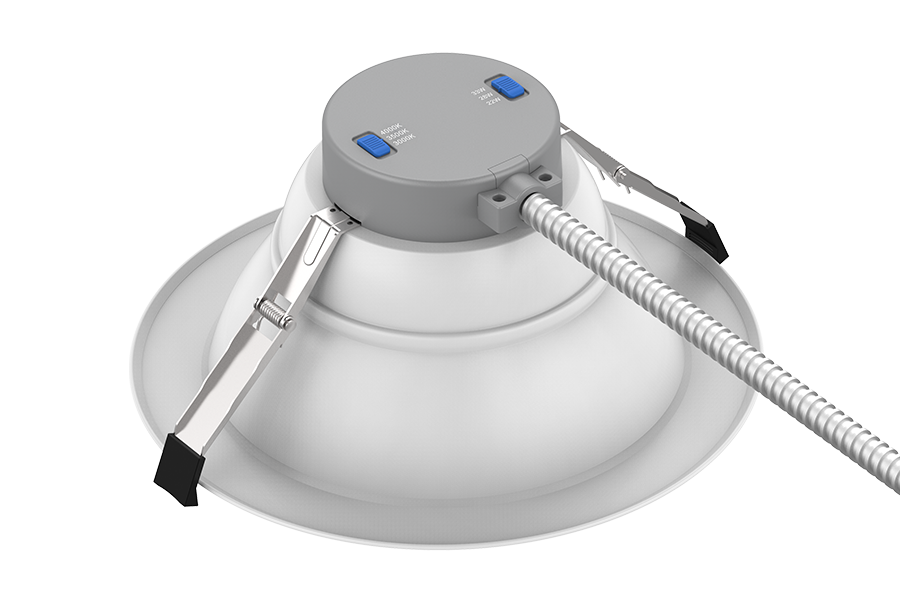

Choose lumen output and color temperature before installation with integrated switch

Emergency Backup Available

When there is a power outage, the emergency backup driver and battery will power the
light for at least 90 mins.

Energy Star Certified

Department of Energy (DOE) and the Environmental Protection Agency (EPA) certified energy-efficient products. Rebates and incentives may available.

California T24/JA8 Complaint

Can be used to comply with 2019 California Title 24 Part 6 high-efficacy LED light source requirements.

Specs & Variations

Model	Lumen
	12W			8W			6W
4"	3000K	3500K	4000K	3000K	3500K	4000K	3000K	3500K	4000K
FDLA 04 D 12	1,073 lm	1,108 lm	1,142 lm	712 lm	736 lm	768 lm	534 lm	552 lm	576 lm
	16W			12W			8W
6"	3000K	3500K	4000K	3000K	3500K	4000K	3000K	3500K	4000K
FDLA 06 D 16	1,434 lm	1,479 lm	1,525 lm	1,075 lm	1,109 lm	1,152 lm	717 lm	740 lm	768 lm
	22W			16W			12W
8"	3000K	3500K	4000K	3000K	3500K	4000K	3000K	3500K	4000K
FDLA 08 D 22	2,000 lm	2,064 lm	2,128 lm	1,455 lm	1,501 lm	1,552 lm	1,091 lm	1,126 lm	1,164 lm
	33W			28W			22W
10"	3000K	3500K	4000K	3000K	3500K	4000K	3000K	3500K	4000K
FDLA 10 D 33	2,954 lm	3,049 lm	3,143 lm	2,507 lm	2,587 lm	2,688 lm	1,970 lm	2,302 lm	2,112 lm

* all models are power and 3000k/3500k/4000k CCT field-adjustable.
Measured Outside the Fixture. Lumen and Efficacy based on 82 CRI models. 90 CRI models’ lumen outputs are approximately 85% of the 82 CRI models.

Build Your Light

Family	Model	Color Accuracy	Housing Color
FDLA
	04 D 12 - 4 inch, 12w/8w/6w Power & 3000/3500/4000k CCT adjustable	8 - 82+ CRI	W - White
	06 D 16 - 6 inch, 16w/12w/8w Power & 3000/3500/4000k CCT adjustable	9 - 90+ CRI	B - Black ¹
	08 D 22 - 8 inch, 22w/16w/12w Power & 3000/3500/4000k CCT adjustable
	10 D 33 - 10 inch, 33w/28w/22w Power & 3000/3500/4000k CCT adjustable

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) available for special order.
