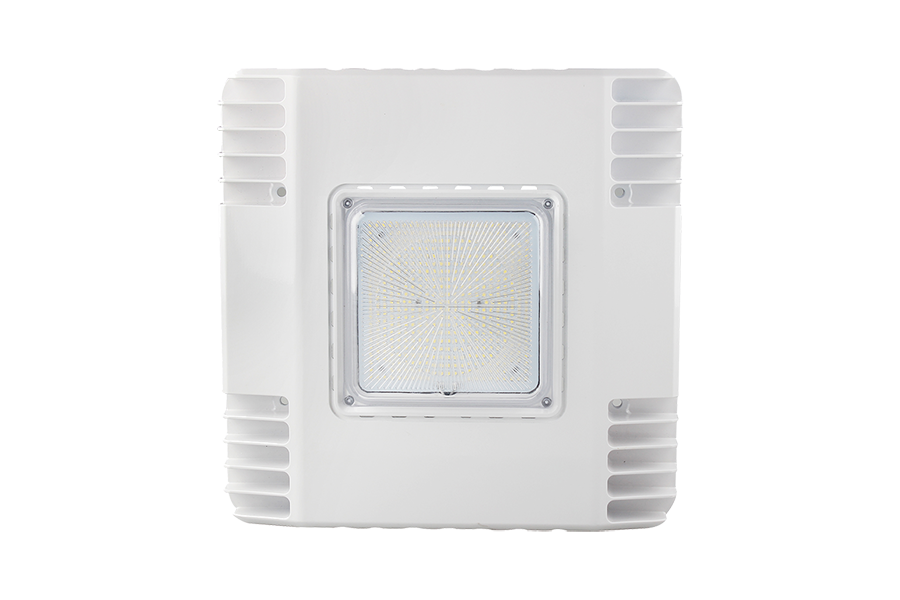

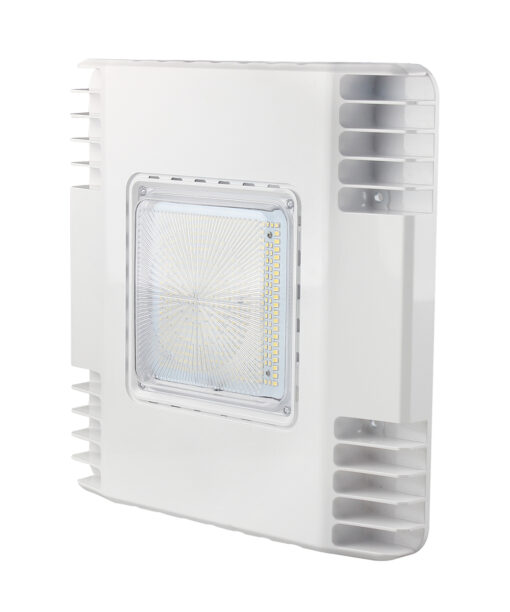

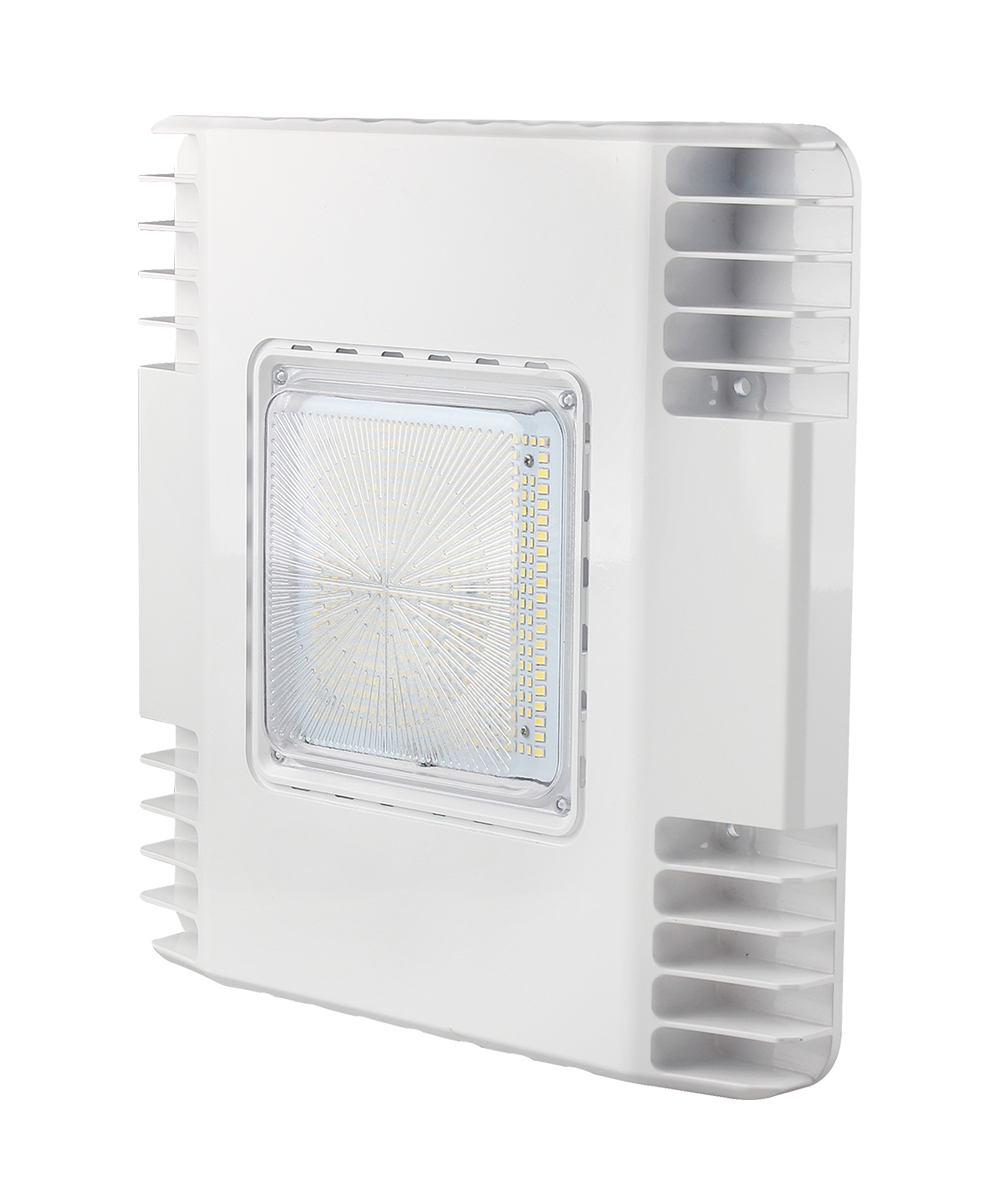

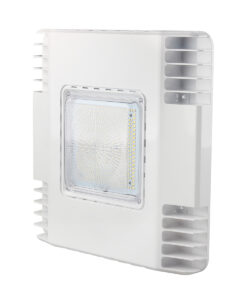

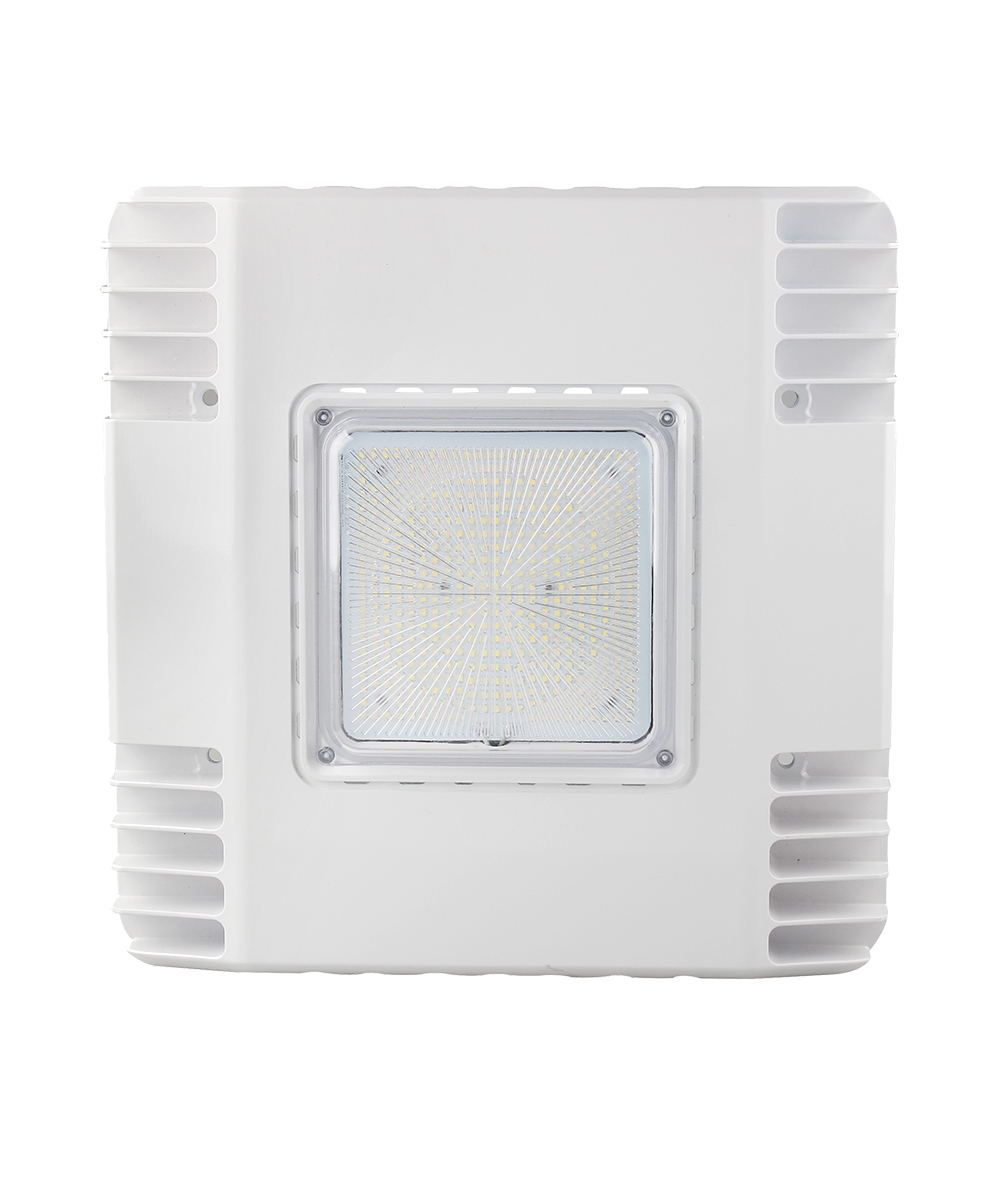

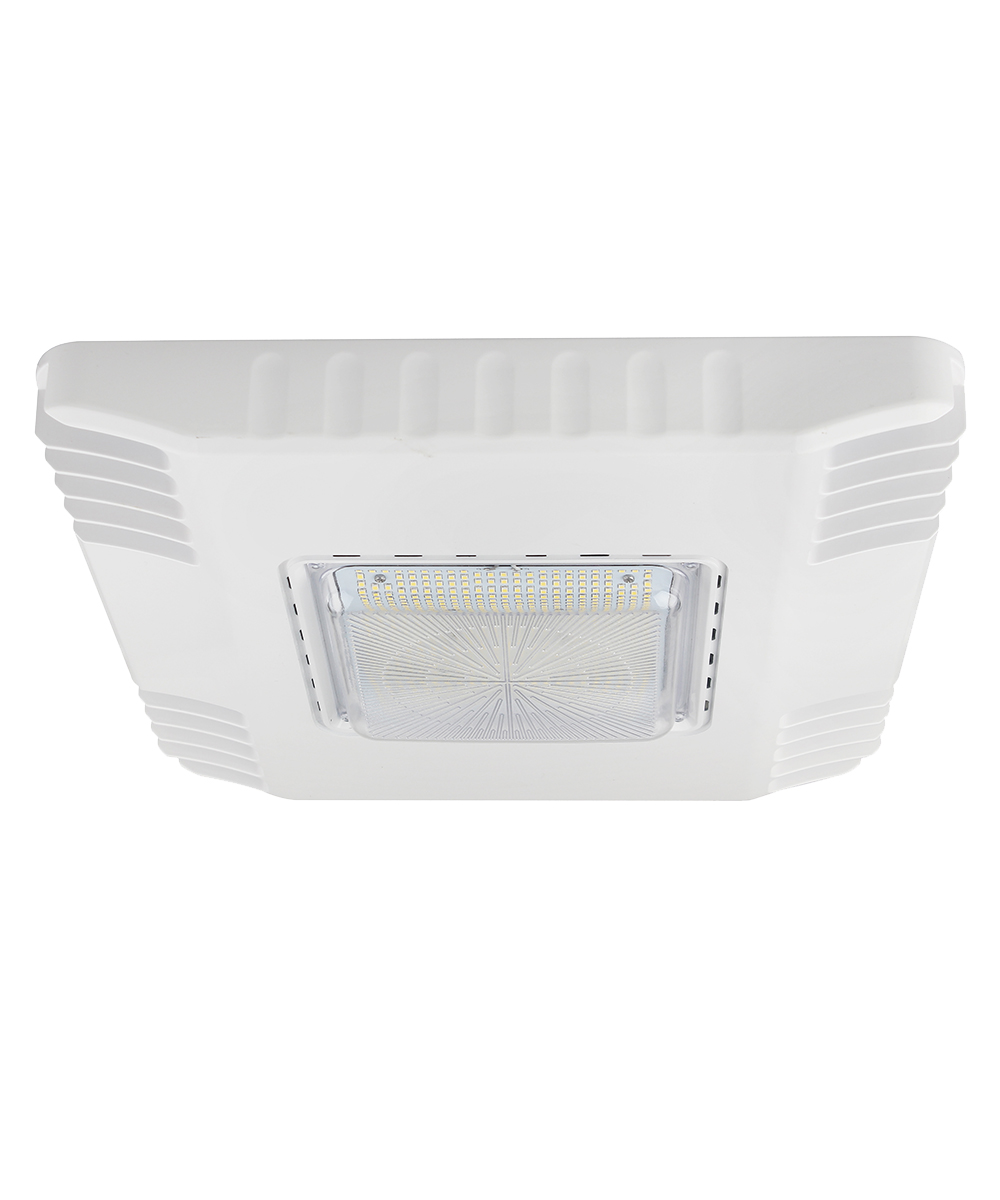

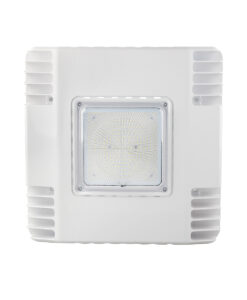

FCPC series LED Canopy Lights

The FCPC Series helps to increase location visibility and incoming traffic resulting in better lighting experiences and lower operating costs. The FCPC Series outperforms existing LED and metal halide (MH) options making it the ideal lighting solution for safer and more appealing service stations, convenience stores and drive-thru restaurants or banking locations.

– Limited Warranty: 5 years
– Efficacy: up to 133 LPW
– Lumen Output: 12,000 – 19,000 L
– Wattage: 95 / 120 / 150 W
– Retrofit option available

UL Listed DLC QPL Premium

Features SPECIFICATIONS Downloads
Request a Quote Free Lighting Layout Utility Rebate

From 12,000 lm to 19,000 lm
SKU: FCPC Categories: , Tag:

Features

DLC QPL v5.1 Listed

The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.

Retrofit Option

Optional retrofit plate can be used to retrofit a current 2’x2′ canopy lighting fixture, without removing the original housing, save time and cost

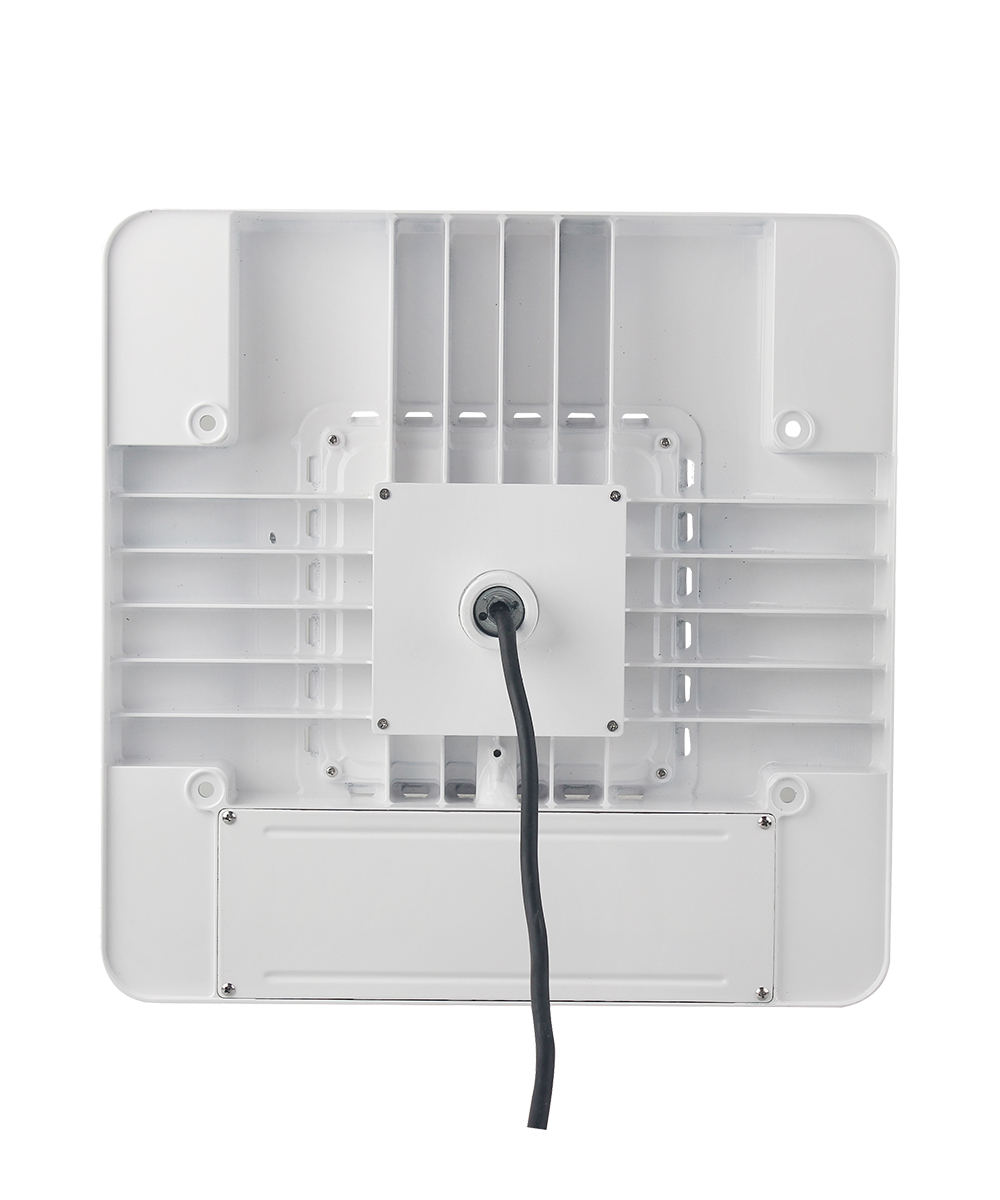

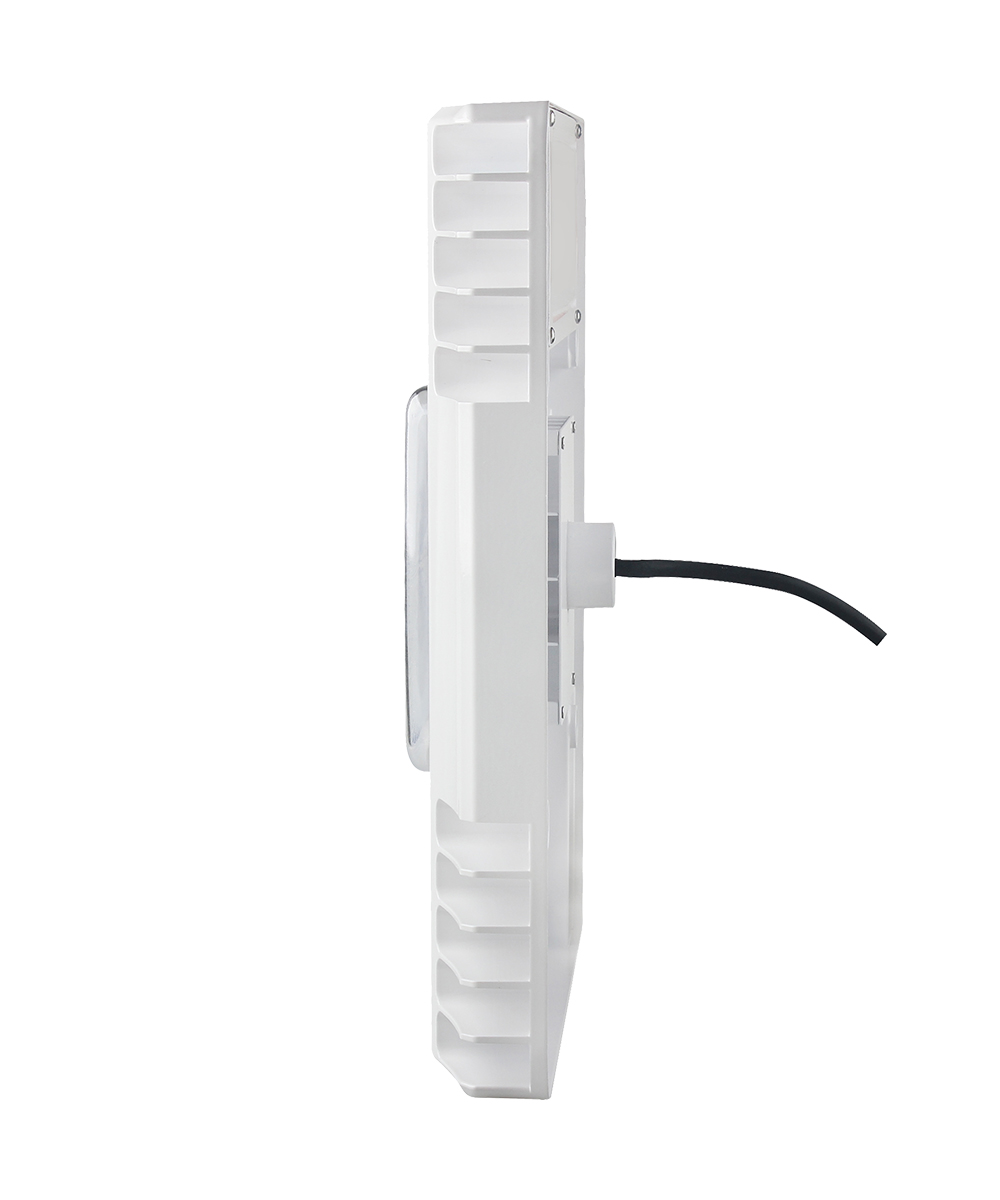

Mounting Options

FCPC can be surface mounted or pendant mounted with a 3/4″ NPT threaded conduit.

IP 65 Rated

IP rated as “dust tight” and protected against water projected from a nozzle.



Specs & Variations

Model LED Wattage Lumen@5700K Lumen@5000K Lumen@4000K
FCPC-095 95W 12,693 lm 12,555 lm 12,280 lm
FCPC-120 120W 15,817 lm 15,812 lm 15,802 lm
FCPC-150 150W 19,383 lm 19,378 lm 19,367 lm



Build Your Light

Family Model Color Temperature Options

FCPC
095 - 95w
30  1 - 3000K
SP - secondary surge protector
120 - 120w
40  1 - 4000K
RF - retrofit plate for 2'x2' housing
150 - 150w
50 - 5000K
57  1 - 5700K

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note 1) available for special order



Documents & Downloads

Specification & Sales Sheets

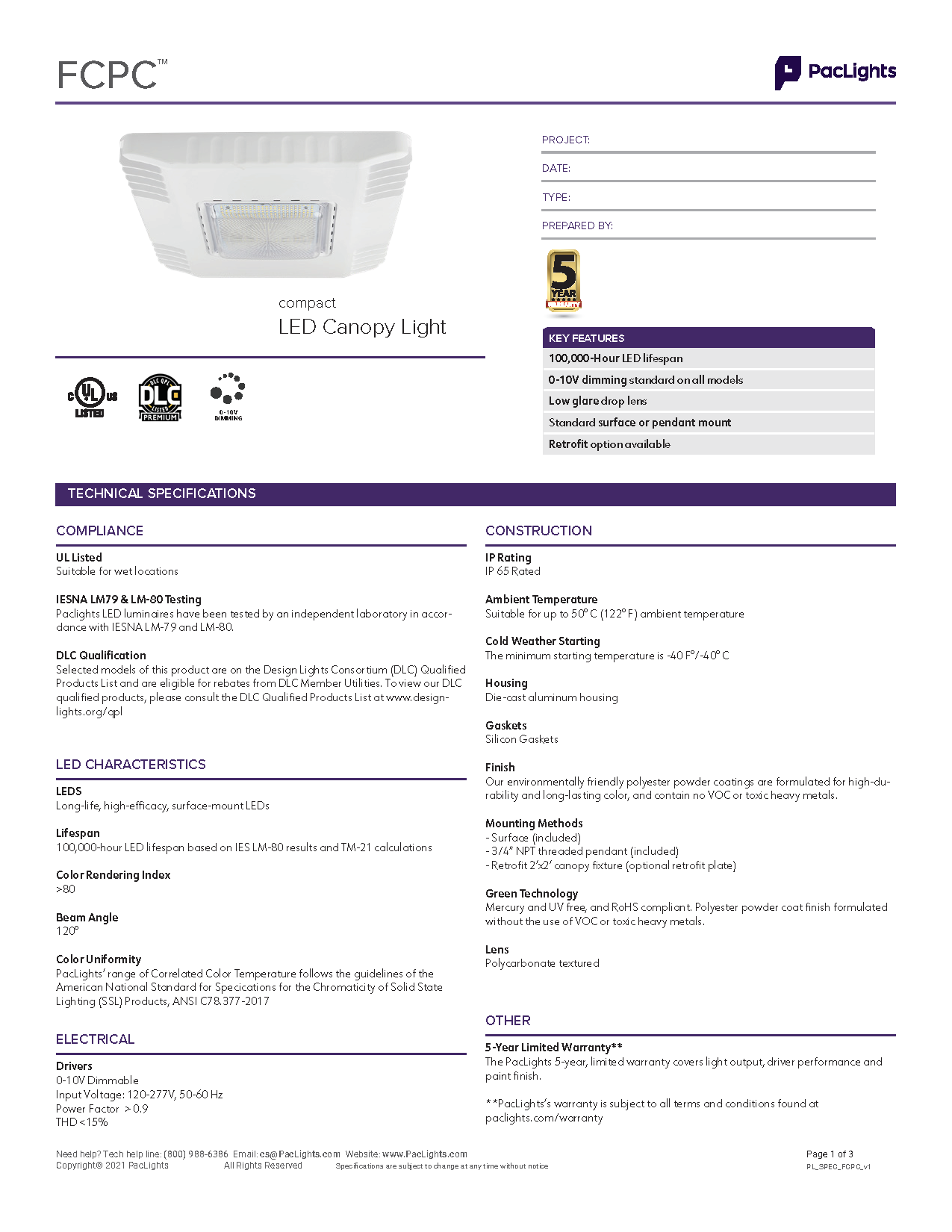

spec sheet
pdficonFCPC series Product Specification Sheet

* specifications are subject to change without notice.

pdficonFCPC series Installation Guide

* installation instructions are subject to change without notice.

Download IES Files:

FCPC-095 | FCPC-120 | FCPC-150

*IES files might not cover all options

wdt_IDQPL Model No.Product IDVersionClassificationPrimary Use
171FCPC-095-30-S-Z-APLS8D495S41S5.1PremiumFuel Pump Canopy Luminaires
172FCPC-095-40-S-Z-APLDL4OOBW6365.1PremiumFuel Pump Canopy Luminaires
173FCPC-095-50-S-Z-APLFY7WZIOLKJ5.1PremiumFuel Pump Canopy Luminaires
174FCPC-095-57-S-Z-APLH7VSJOT5875.1PremiumFuel Pump Canopy Luminaires
175FCPC-120-40-S-Z-APLCTPG1PB8BI5.1PremiumFuel Pump Canopy Luminaires
176FCPC-120-50-S-Z-APLISDNN5IFJ45.1PremiumFuel Pump Canopy Luminaires
177FCPC-120-57-S-Z-APLIHG3KRJRZR5.1PremiumFuel Pump Canopy Luminaires
178FCPC-150-40-S-Z-APLJOJ6Y3S8RT5.1PremiumFuel Pump Canopy Luminaires
179FCPC-150-50-S-Z-APL74KYMQJZG15.1PremiumFuel Pump Canopy Luminaires
180FCPC-150-57-S-Z-APL6C7R2KGLVQ5.1PremiumFuel Pump Canopy Luminaires
