Features
DLC QPL v5.1 Listed
The DesignLights Consortium® (DLC) is a non-profit organization promotes high-quality, energy-efficient lighting products in collaboration with utilities and energy efficiency program members, manufacturers, lighting designers. DLC Listed high performing LED lighting products may qualify for rebates.
Wattage/Color Selectable
Choose wattage and light color before, during, or after installation with a internal dip-switch. On selected models
Secondary Surge Protection
FALC comes standard with a secondary 10kV surge protector for extra peace of mind.
Control Options

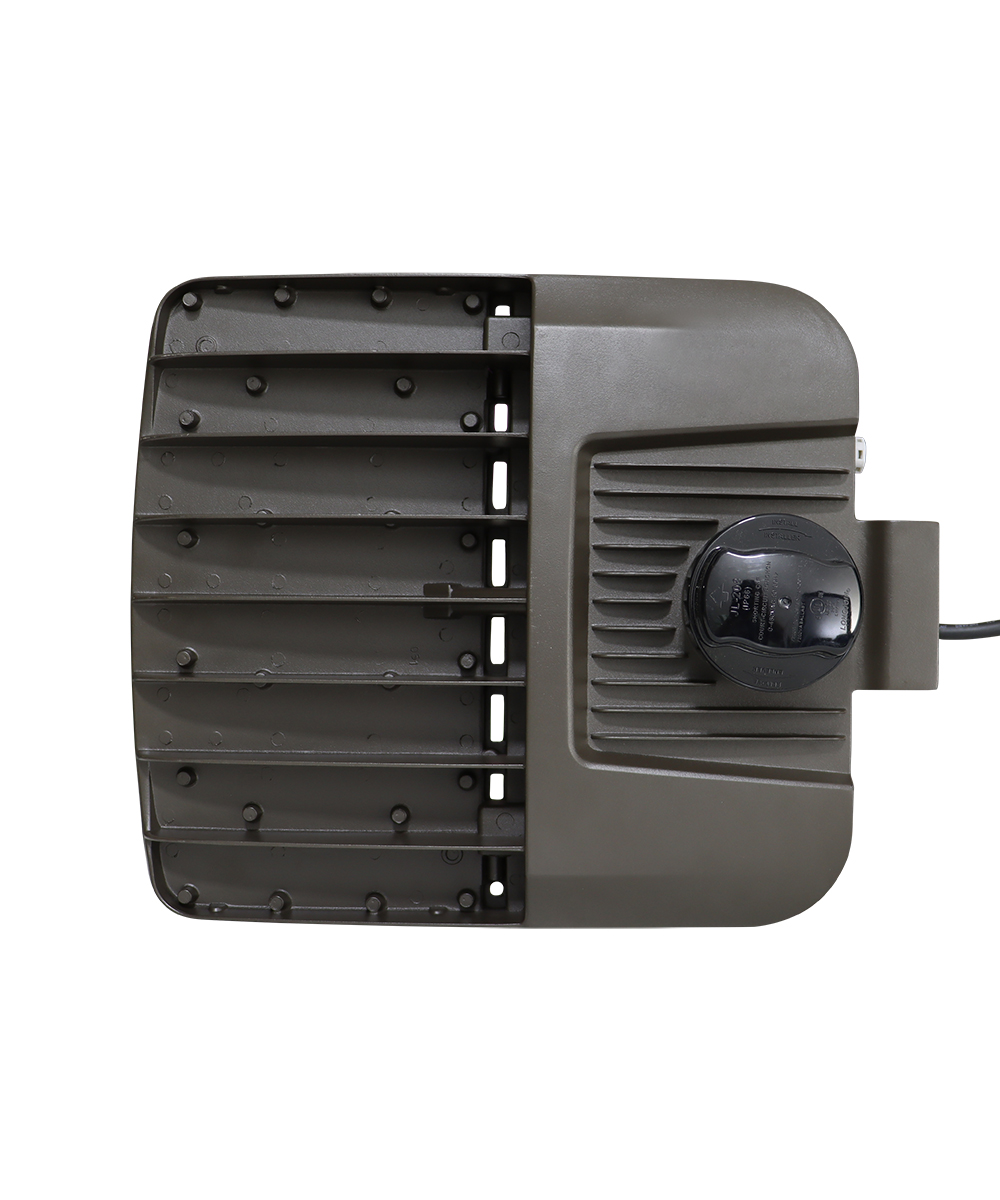

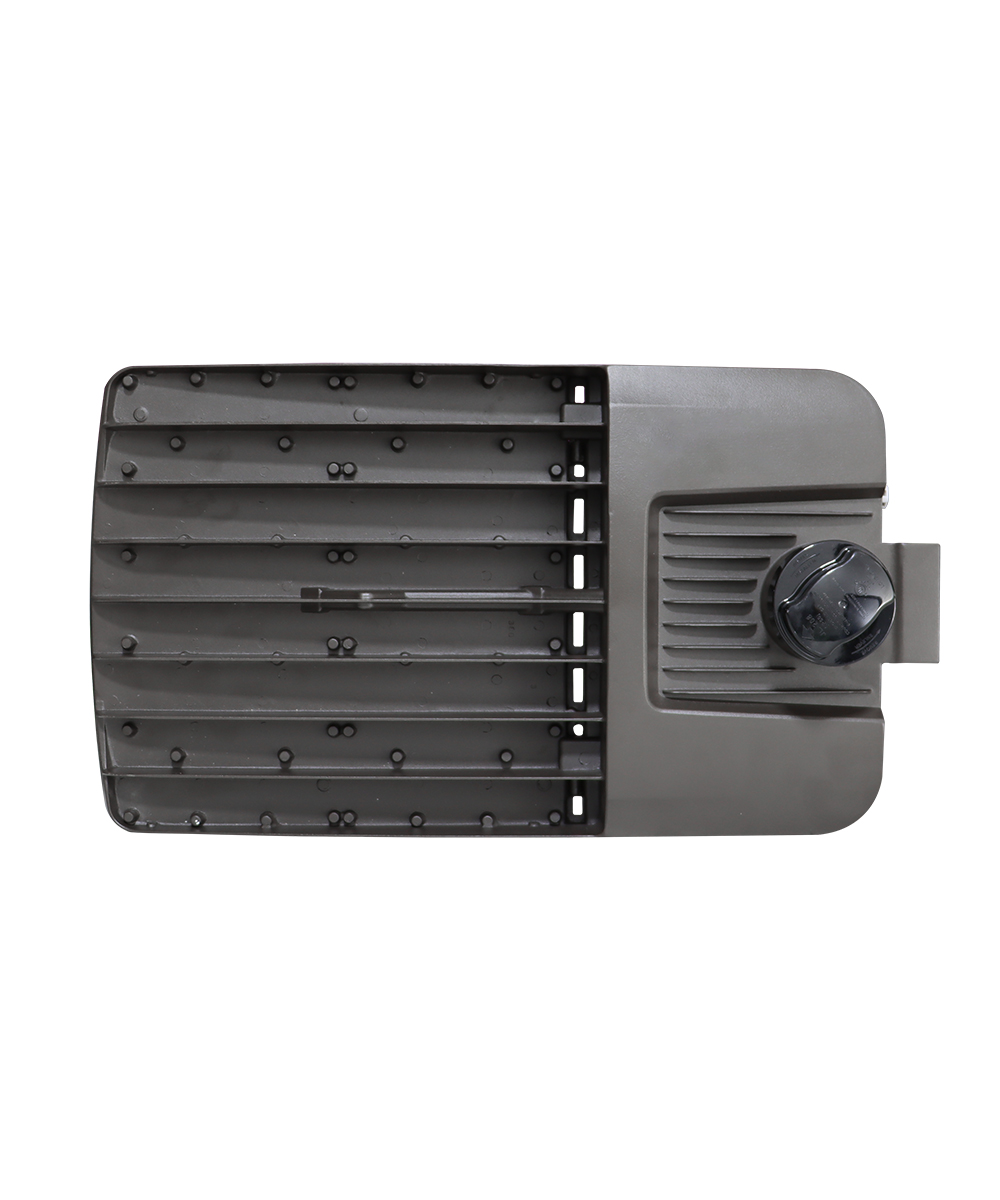

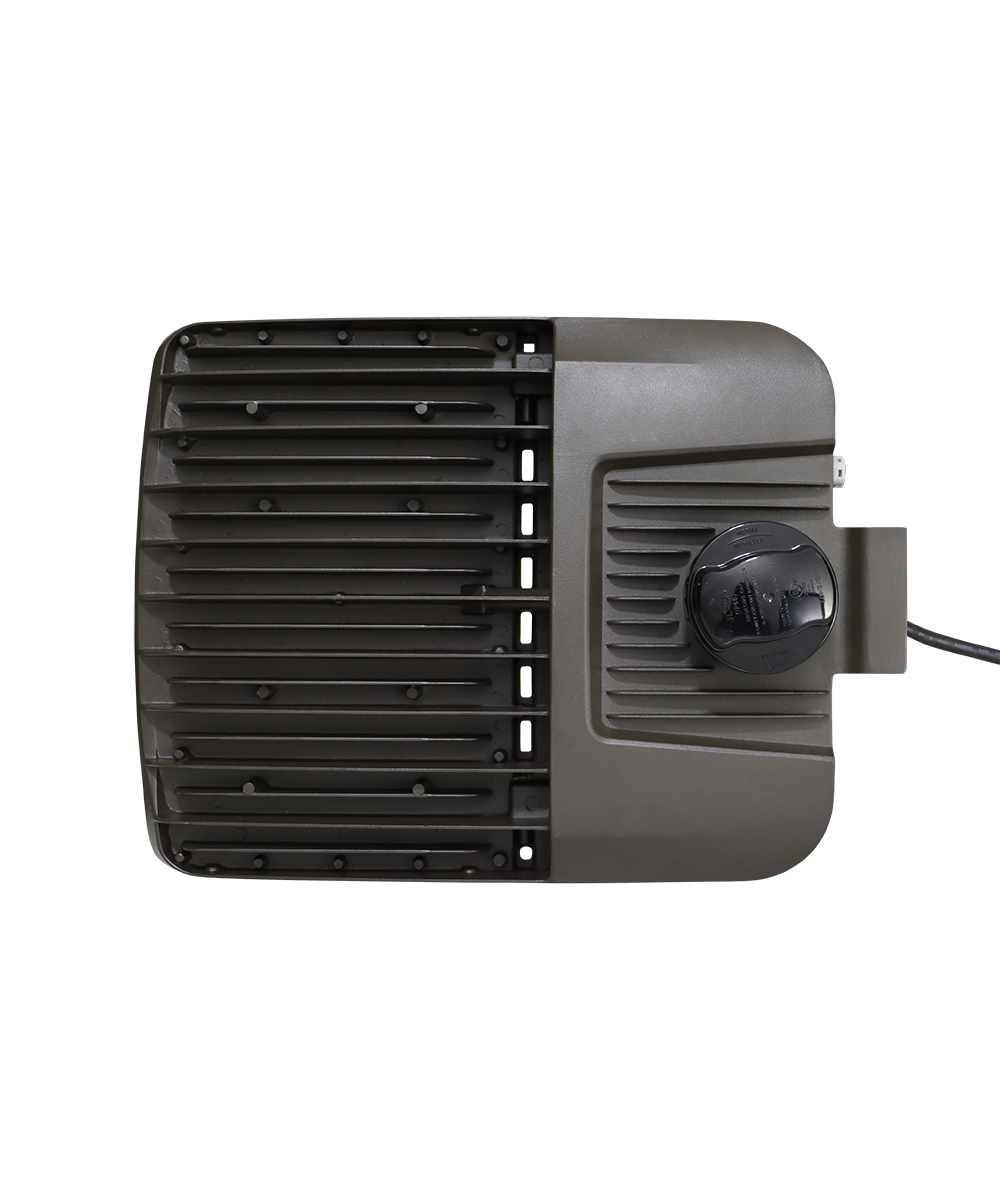

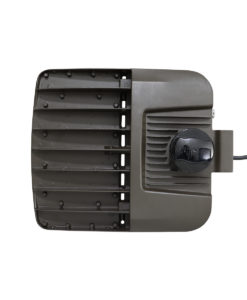

Optional 7 pin or 3 pin NEMA twist lock receptacle, compatible with most 3, 5 or 7 pin twist lock controls such as photocells. Optional Motion or Networked Lighting Controls
NETWORKED LIGHTING CONTROL
OPTIONS AVAILABLE
Networked Lighting Controls (NLC) offer Luminaire Level Lighting Control (LLLC) based on Bluetooth-enabled Mesh Networking of Luminaires. Individual addressability enables luminaires to be communicated with each other within the zone/network. Luminaires can be grouped, trim and controlled by using the smart device app or connected wall switches. Scheduling, scene and sensors can be added for automation among the lights within the zone/group.
Specs & Variations
MODEL | CCT | |||
Selectable Wattage / Color | FALC/3-150 | FALC/3-100 | FALC/3-080 | |
FALC/3-150/100/080 | 5000K | 20,400 lm | 13,600 lm | 10,880 lm |
4000K | 21,450 lm | 14,300 lm | 11,440 lm | |
3000K | 18,900 lm | 12,600 lm | 10,080 lm | |
Selectable Wattage / Color | FALC/3-300 | FALC/3-240 | FALC/3-200 | |
FALC/3-300/240/200 | 5000K | 40,800 lm | 32,640 lm | 27,200 lm |
4000K | 43,200 lm | 34,560 lm | 28,800 lm | |
3000K | 38,400 lm | 30,720 lm | 25,600 lm | |
Selectable Wattage / Color | FALC/3-450 | FALC/3-400 | FALC/3-350 | |
FALC/3-450/400/350 | 5000K | 59,850 lm | 53,200 lm | 46,550 lm |
4000K | 63,000 lm | 56,000 lm | 49,000 lm | |
3000K | 55,800 lm | 49,600 lm | 43,400 lm |
* FALC/3-150/100/080 is field-selectable to 150/100/80w and 3000/4000/5000K CCT; FALC/3-300/240/200 is field-selectable to 300/240/200w and 3000/4000/5000K CCT; FALC/3-450/400/350 is field-selectable to 450/400/350w and 3000/4000/5000K CCT
Build Your Light
Family | Model | Input Voltage | CCT | IES Optics | Mount | Finish | Options |
FALC/3 | |||||||
080 - 80w | UV - 120-277v | 30 - 3000K | T2 - Type II | SF - Slipfitter | DB - Dark Bronze | VS - Visor | |
100 - 100w | HV - 277-480v | 40 - 4000K | T3 - Type III | AM - Arm | WH - White | 3PR - NEMA 3pin twist-lock Receptacle | |
150 - 150w | 50 - 5000K | T4 - Type IV | TM - Trunnion | 7PR - NEMA 7pin twist-lock Receptacle | |||
200 - 200w | 30/40/50 - 3000K/4000K/5000K Selectable | T5 - Type V | FM - Flood | PS - Photocell | |||
240 - 240w | WM - Wall | DL - Daylight Harvesting | |||||
300 - 300w | DM - DL+Midnight Dim | ||||||
350 - 350w | MCW - Microwave Motion and Daylight | ||||||
400 - 400w | MCP - PIR Motion and Daylight | ||||||
450 - 450w | MCD - Microwave Motion and Daylight Harvesting | ||||||
150/100/080 - 150w/100w/80w Selectable | WBP - Networked Control w/PIR Motion and Daylight sensor (NLC) | ||||||
300/240/200 - 300w/240w/200w Selectable | WBN - Networked Control only (NLC) | ||||||
450/400/350 - 450w/400w/350w Selectable |
* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Case Studies
Documents & Downloads
FALC series (FALC/3) Product Specification Sheet |
Previous Generations:
(2nd Generation)

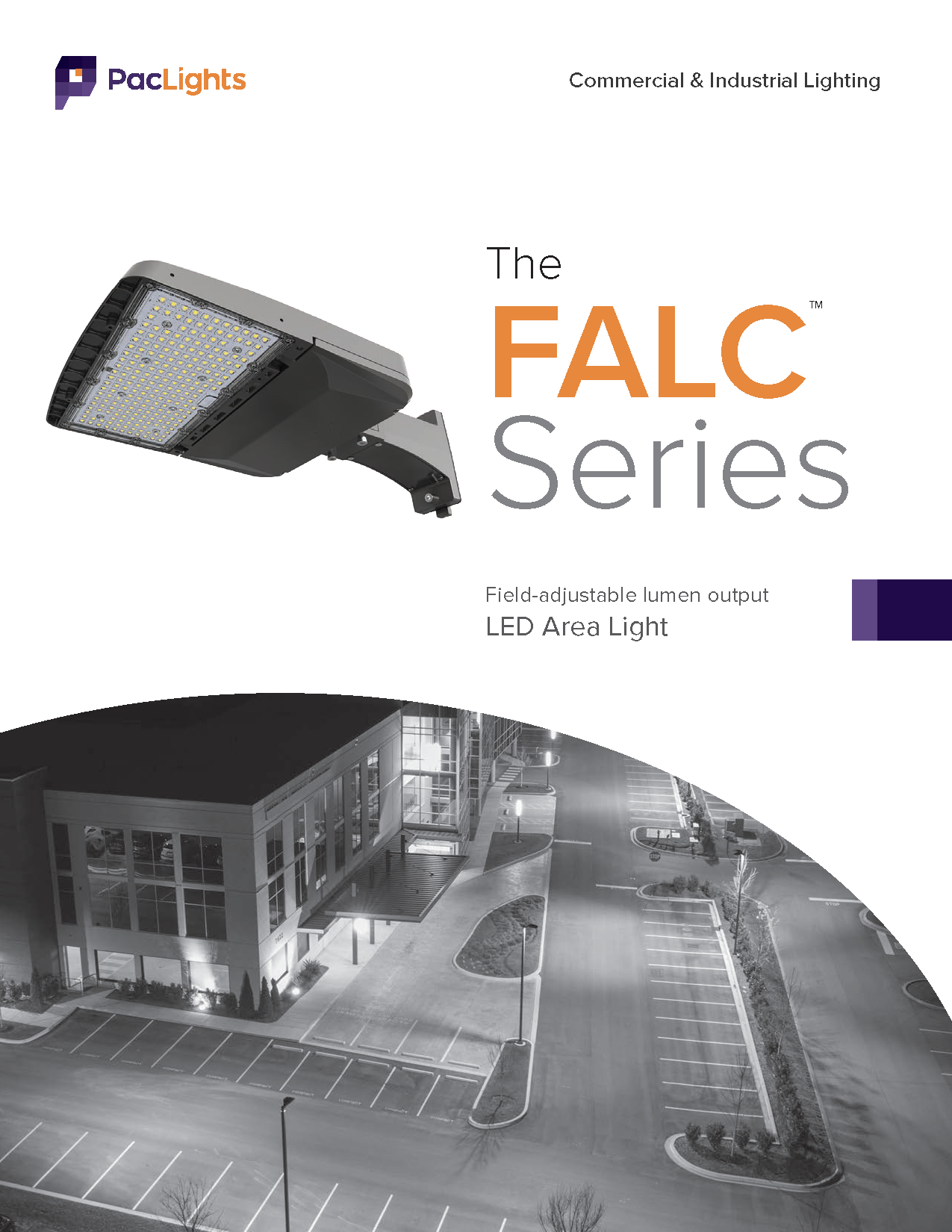

FALC series (FALC/2) Product Specification Sheet
(1st Generation)
FALC series Product Spec Sheet
* specifications are subject to change without notice.
FALC series (3rd Gen.) Installation Guide
Previous Generations:
FALC series (2nd Gen.) Installation Guide
FALC series (1st Gen.) Installation Guide
* installation instructions are subject to change without notice.
wdt_ID | GENERATION | SKU | WATTAGE | CCT | OPTICS | IES File |
---|---|---|---|---|---|---|
1 | 3rd (Latest) | FALC/3-080-30-T2 | 80 | 3000K | T2 | Download IES |
2 | 3rd (Latest) | FALC/3-080-30-T3 | 80 | 3000K | T3 | Download IES |
3 | 3rd (Latest) | FALC/3-080-30-T4 | 80 | 3000K | T4 | Download IES |
4 | 3rd (Latest) | FALC/3-080-30-T5 | 80 | 3000K | T5 | Download IES |
5 | 3rd (Latest) | FALC/3-080-40-T2 | 80 | 4000K | T2 | Download IES |
6 | 3rd (Latest) | FALC/3-080-40-T3 | 80 | 4000K | T3 | Download IES |
7 | 3rd (Latest) | FALC/3-080-40-T4 | 80 | 4000K | T4 | Download IES |
8 | 3rd (Latest) | FALC/3-080-40-T5 | 80 | 4000K | T5 | Download IES |
9 | 3rd (Latest) | FALC/3-080-50-T2 | 80 | 5000K | T2 | Download IES |
10 | 3rd (Latest) | FALC/3-080-50-T3 | 80 | 5000K | T3 | Download IES |
GENERATION | SKU | WATTAGE | CCT | OPTICS | IES File |
*IES files might not cover all wattage, CCT or Light Distribution options
wdt_ID | QPL Model No. | Product ID | Version | Classification | Primary Use |
---|---|---|---|---|---|
196 | FALC/3-450-UV-XX-T3-abcdeSBZ | S-7ICRW6 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
197 | FALC/3-450-HV-XX-T3-abcdeSBZ | S-3OT2R5 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
198 | FALC/3-300-UV-XX-T5-abcdeSBZ | S-F1A6LD | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
199 | FALC/3-300-UV-XX-T4-abcdeSBZ | S-Z4L9HI | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
200 | FALC/3-300-UV-XX-T3-abcdeSBZ | S-69DPIU | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
201 | FALC/3-300-UV-XX-T2-abcdeSBZ | S-MSX2C1 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
202 | FALC/3-300-HV-XX-T5-abcdeSBZ | S-LH10TV | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
203 | FALC/3-300-HV-XX-T4-abcdeSBZ | S-HK51VC | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
204 | FALC/3-300-HV-XX-T3-abcdeSBZ | S-FYL81A | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
205 | FALC/3-300-HV-XX-T2-abcdeSBZ | S-H8I746 | 5.1 | Premium | Outdoor Pole/Arm-Mounted Area and Roadway Luminaires |
