(DISCONTINUED) F2SB series LED Area Lights

(DISCONTINUED) F2SB series LED Area Lights

THIS PRODUCT HAS BEEN DISCONTINUED

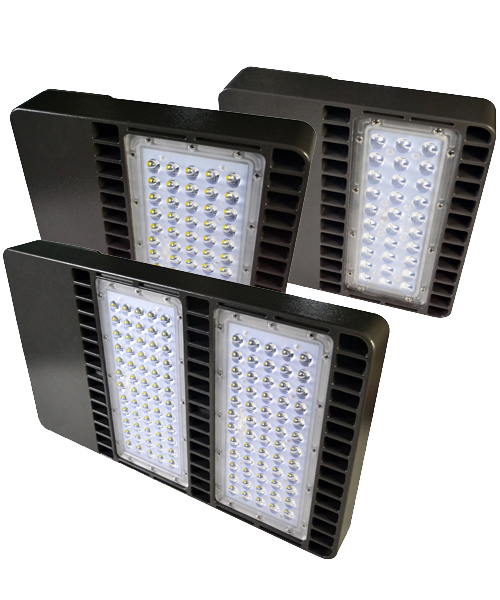

Efficient, Customizable, and aesthetically modern, this fixture is one of the most popular products we’ve offered to date. An IP 65 rating makes this Area light reliable, but PacLights takes the extra step to offer custom options you can really enjoy. The F2SB series offers color temperatures ranging from 3000-5000k, multiple mounting options, multiple light distribution lenses, and add on’s like photo cells & surge protectors. F2SB can be applied to areas like road ways, and parking lots.

– Limited Warranty: 5 years
– Efficacy: up to 110 LPW
– Lumen Output: 5,000 – 30,500 L
– Wattage: 48 – 300 W

UL Listed  DLC QPL

Spec Sheets Downloads
Find Rebate Free Layout
Where to Buy

From 5,000 lm to 30,500 lm
SKU: F2SB Categories: , Tag:

Specs & Variations

Please find below major variations of this product.

F2SB048
48W
5,000 L
Replace 100-150w MH
F2SB080
80W
8,040 L
Replace 150-175w MH
F2SB100
100W
10,500 L
Replace 250w MH
F2SB150
150W
15,500 L
Replace 400w MH
F2SB200
200W
21,900 L
Replace 400-750w MH
F2SB300
300W
30,500 L
Replace 750-1000w MH

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details. Lumen at 5000K CCT, Universal Voltage.

Case Studies

Documents & Downloads

Please find below the documents related to the product.

Spec Sheets

pdficonF2SB series Product Spec Sheet

* specifications are subject to change without notice.

pdficonF2SB series Product Spec Sheet

* information is subject to change without notice.

Download IES Files:

Type III Medium 90°x140°(Pre-Installed):
F2SB048 | F2SB080 | F2SB100 | F2SB150 | F2SB200 | F2SB300
Type II 80°x135°(Optional):
F2SB080 | F2SB150 | F2SB200 | F2SB300
Type III Short 90°x120°(Optional):
F2SB048 | F2SB080 | F2SB100 | F2SB150 | F2SB200 | F2SB300
Type IV 140° x 100°(Optional):
F2SB200 | F2SB300
Type V 120°(Optional):
F2SB048 | F2SB080 | F2SB100 | F2SB150 | F2SB200 | F2SB300
Type V 90°(Optional):
F2SB100

*IES files might not cover all wattage options
