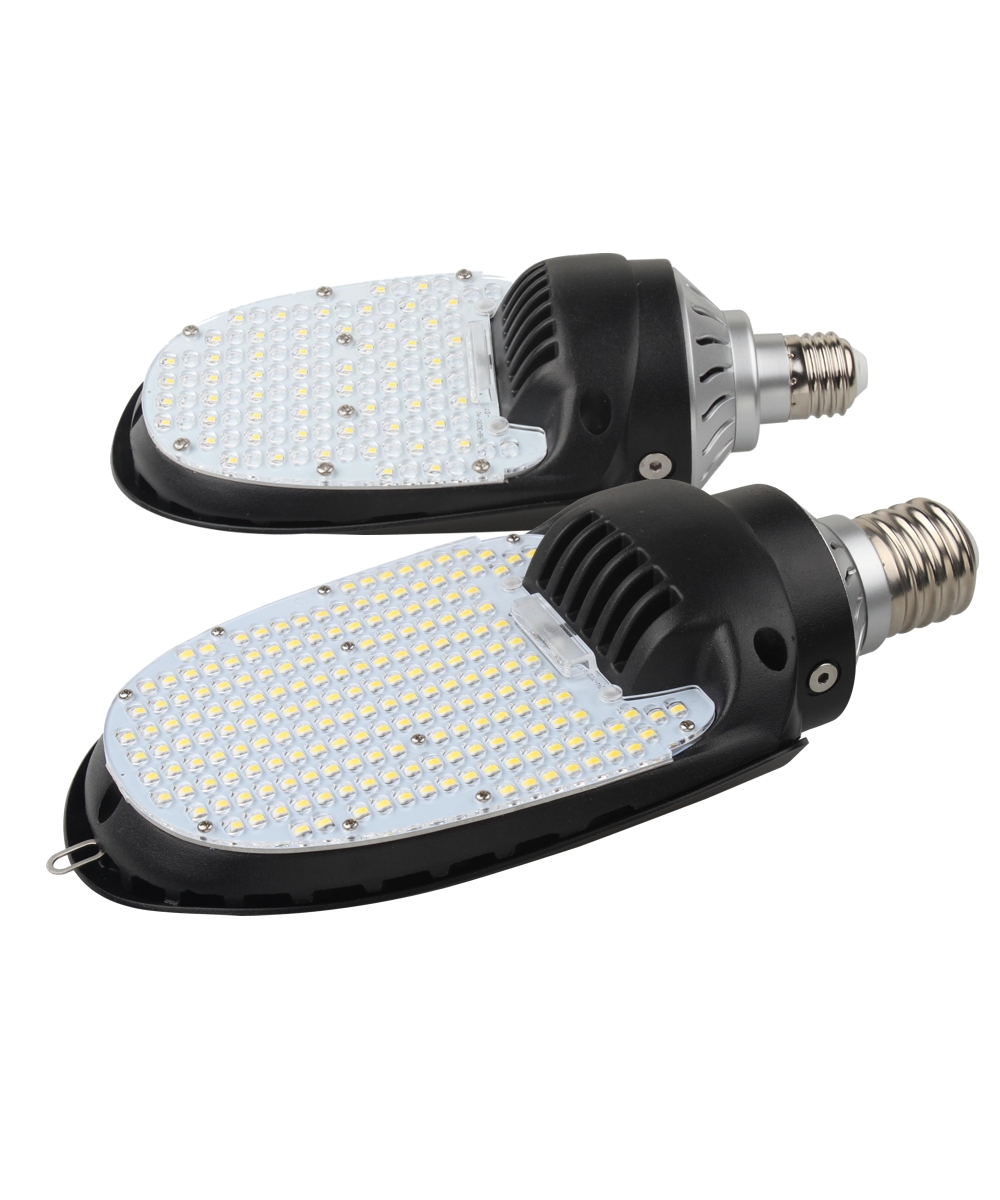

BH series LED Light Bulbs

BH series delivers up to 120 LPW and is available in different lamp bases. It can replace a 100w to 400w MH, or a 60w to 200w CFL. Some applications for this bulb include: Street Lights, Area Lights, Flood Lights, Wall Lights, Canopy Lights, and other enclosed outdoor fixtures.

– Limited Warranty: 5 years
– Efficacy: up to 120 LPW
– Lumen Output: 3,000 – 13,000 L
– Wattage: 27 – 115 W
– Input: 100-277 V (Optional 480V)
– Distribution: Type III or Type V

Features SPECIFICATIONS Downloads

Request a Quote Free Lighting Layout Utility Rebate

From 3,000 lm to 13,000 lm

Specs & Variations

Model	LED Wattage	Lumen@5000K	Efficacy@5000K	Lumen@4000K	Efficacy@4000K
BH 27	27w	3,032 lm	117 lm/w	3,032 lm	117 lm/w
BH 36	36w	4,009 lm	120 lm/w	4,010 lm	115 lm/w
BH 54	54w	5,672 lm	112 lm/w	5,672 lm	111 lm/w
BH 75	75w	8,615 lm	116 lm/w	8,507 lm	115 lm/w
BH 95	95w	10,622 lm	114 lm/w	10,622 lm	114 lm/w
BH 115	115w	12,819 lm	113 lm/w	12,819 lm	113 lm/w

Build Your Light

Family	Model	Bulb Base	IES Light Distribution	Color Temperature
BH
	27 - 27w	E - E26 (medium base)	3 - Type III	4000 - 4000K
	36 - 36w	M - E39 (mogul base)	5 - Type V	5000 - 5000K
	54 - 54w	P - EX39 (extended mogul base) ¹		5700 - 5700K ¹
	75 - 75w
	95 - 95w
	115 - 115w

* Ordering information is for reference only. Some product configurations are not available. Please consult spec sheets for specific product availability and for further details.
Note. 1) available for special order
